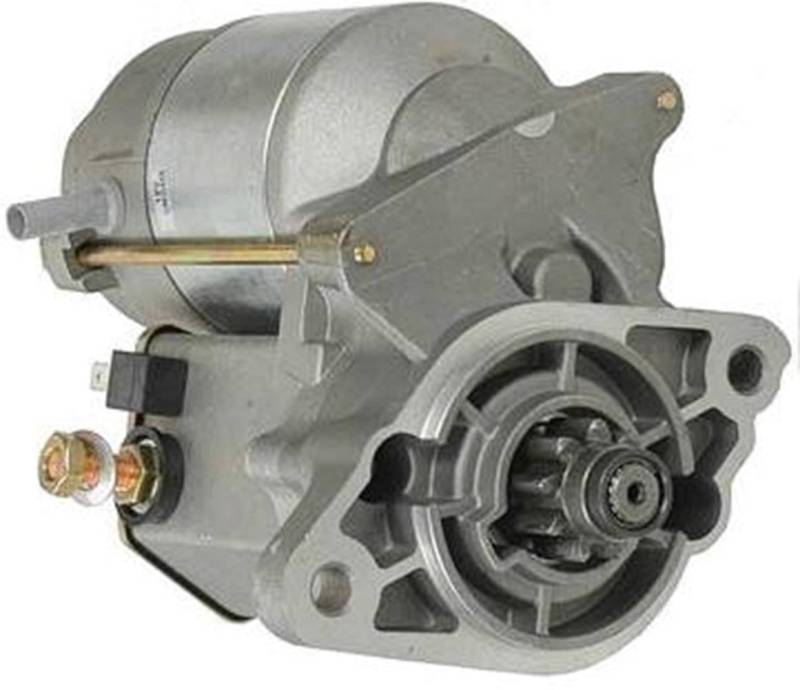

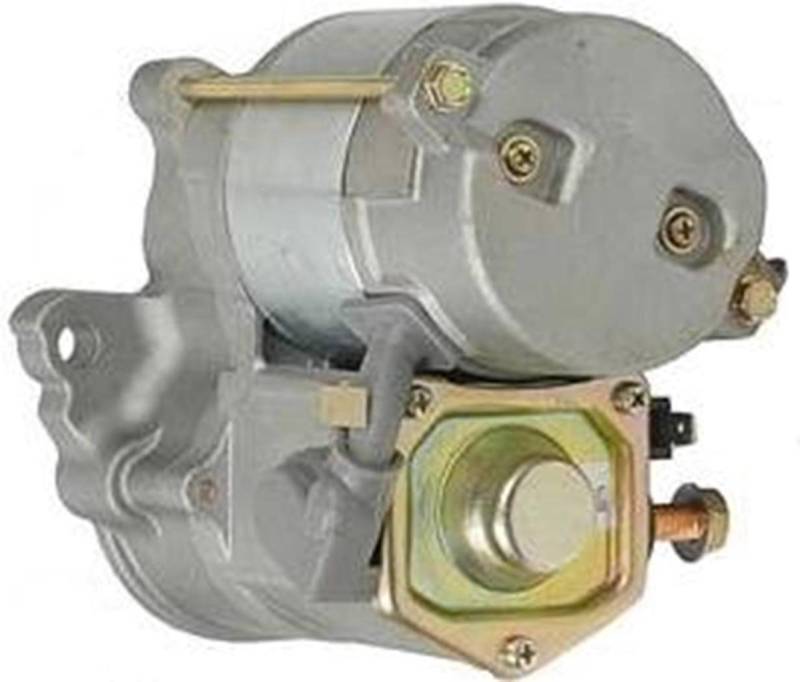

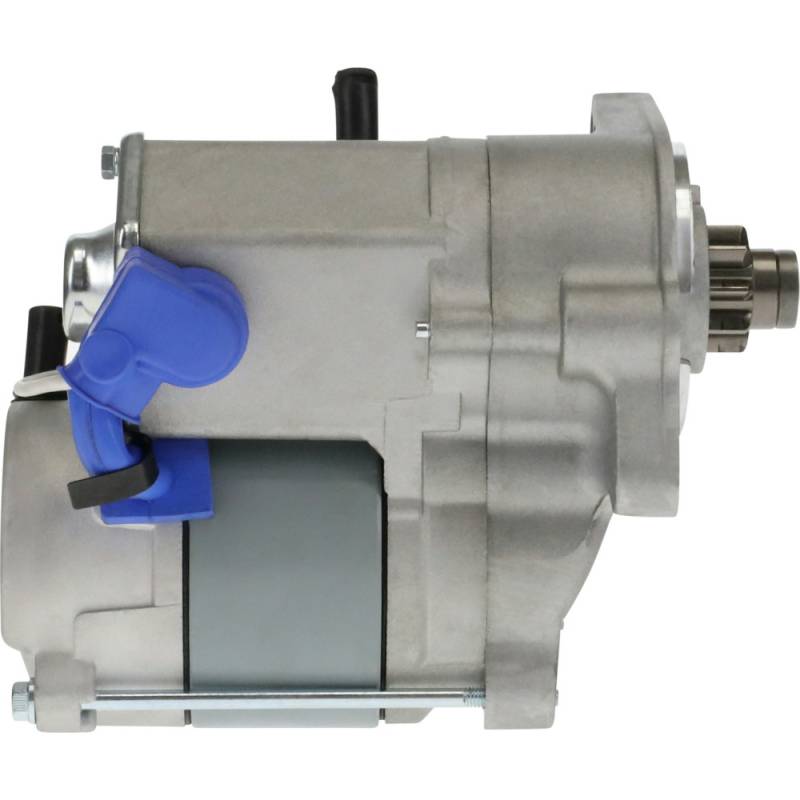

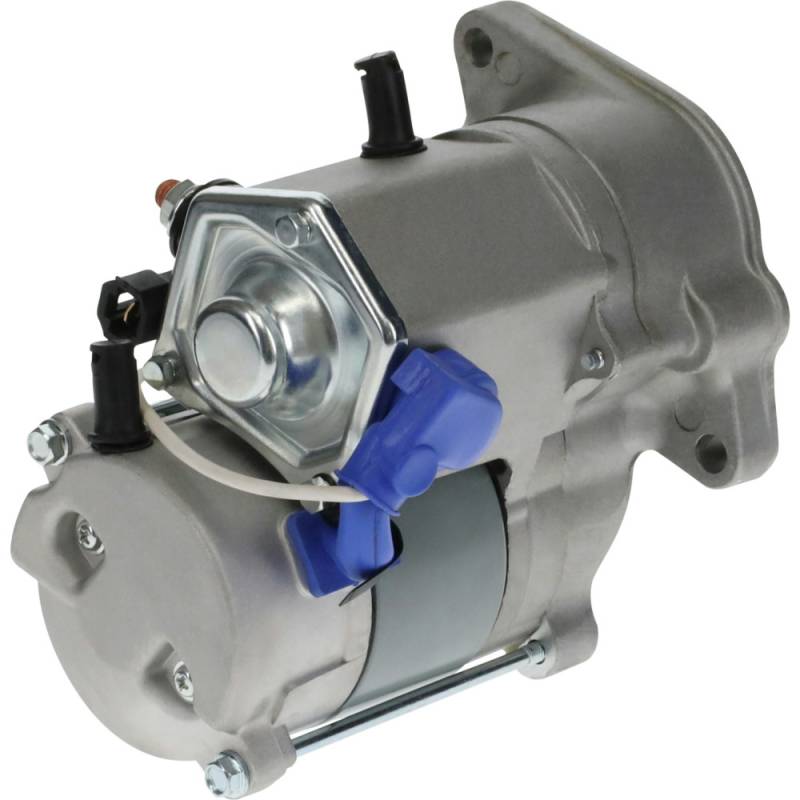

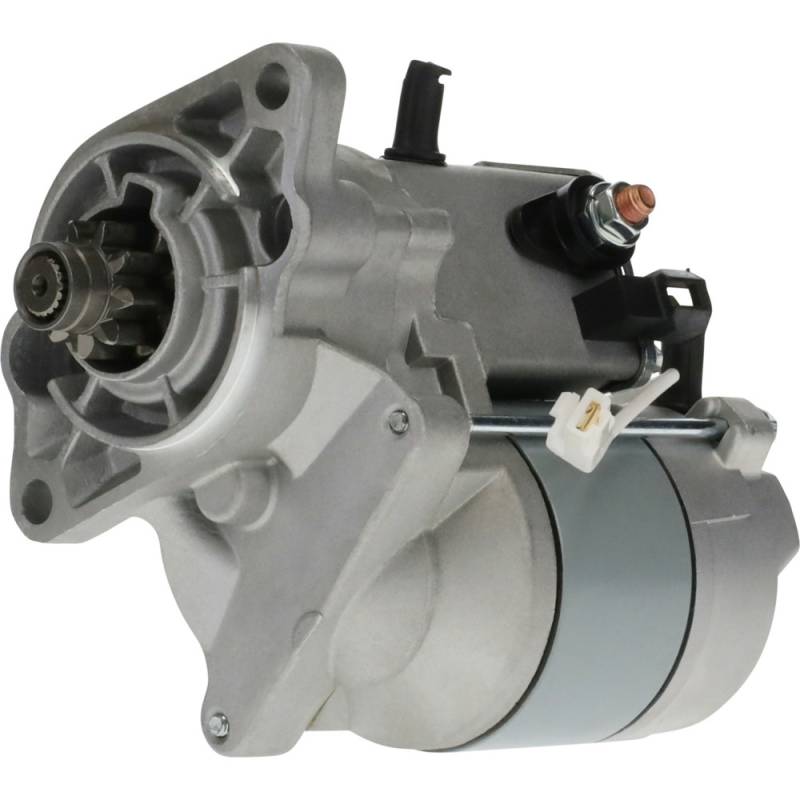

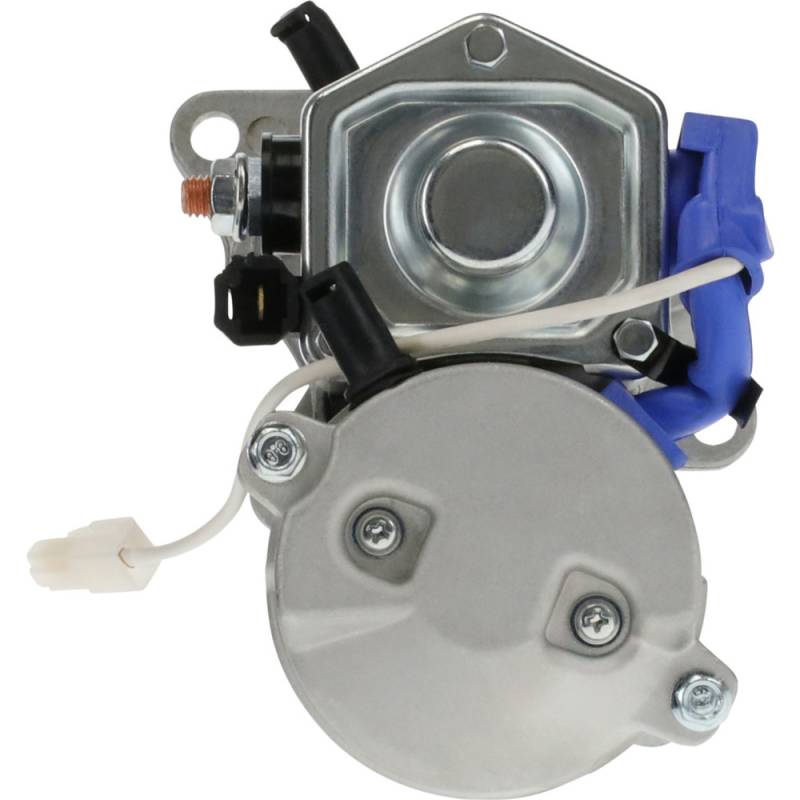

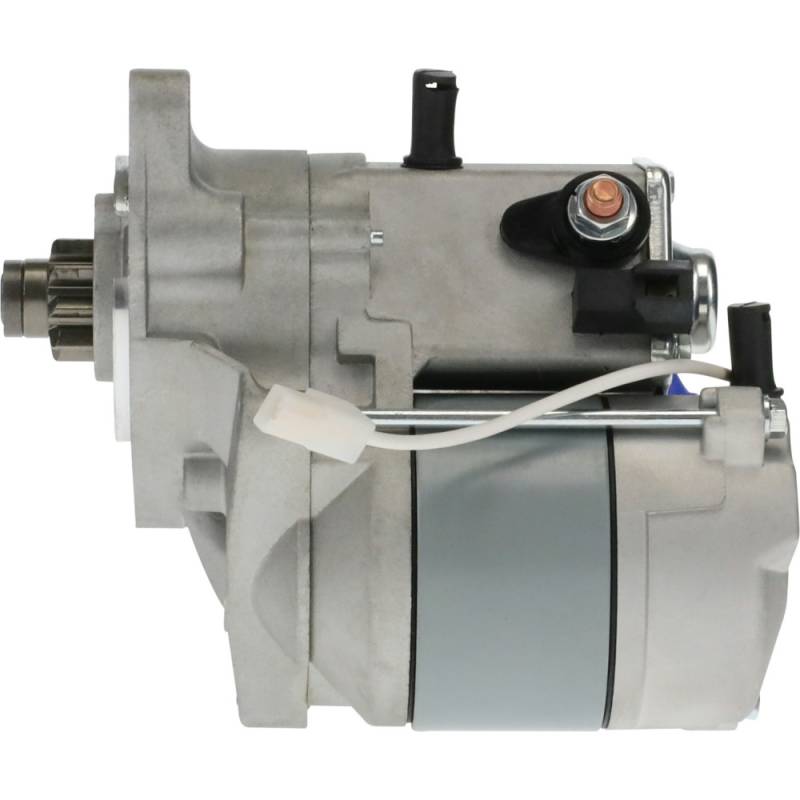

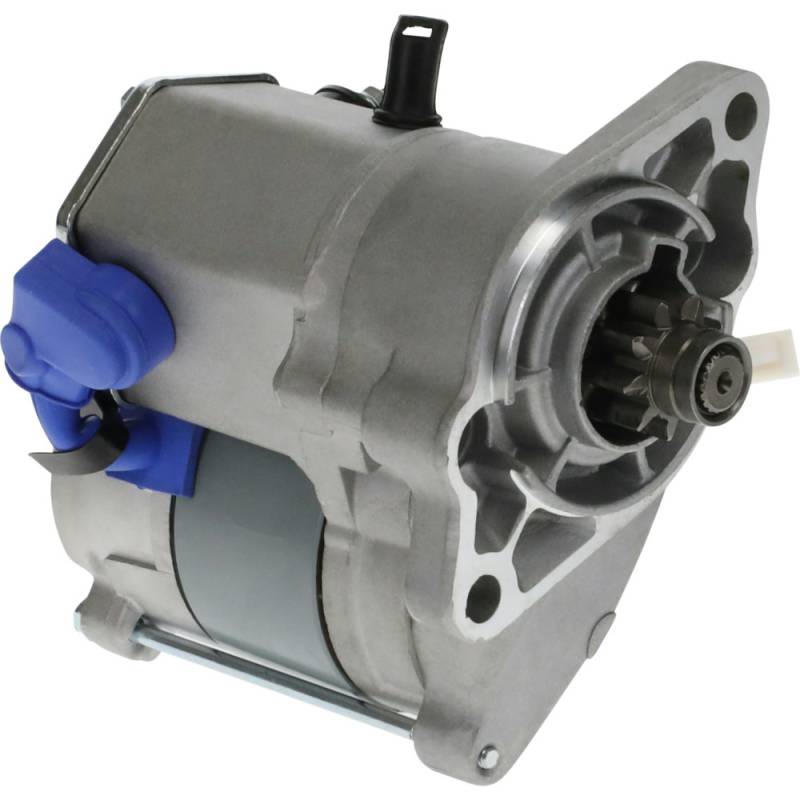

New Starter Compatible With Kubota Lawn Tractor Lawn Tg1860 Kubota D722e-Gx 028000-8320 028000-8321

(0) Reviews: Write first review
17028A1
KUBOTA PART NUMBERS:
• 16611-63010, 1661163010
• 16611-63011, 1661163011
• 16611-63012, 1661163012
• 16611-63013, 1661163013
• 16285-63010, 1628563010
• 16285-63011, 1628563011
• 16285-63012, 1628563012
• 16271-63010
• 16271-63013
• 15504-63010, 1550463010
• 15504-63011, 1550463011
• 15504-63012, 1550463012
• 15741-63010, 1574163010
• 15741-63011
• 16612-63011, 1661263011
• 16612-63012
• 16871-63010, 1687163010
• 16871-63011
• 16871-63012
• 15471-63011
• 37560-63010, 37560-63011, 37560-63012
• T1065-15680
• T1850-15680, T1850-15682
• KEARS16611, KEARS16285

DENSO PART NUMBERS:
• 228000-1530, 2280001530
• 228000-1531, 2280001531
• 228000-0150, 2280000150
• 9722809-153
• 228000-0950, 228000-0951, 228000-0980, 228000-0981
• 228000-0790, 2280000790
• 228000-0791
• 228000-6321
• 228000-6770, 228000-6771
• 028000-8320, 028000-8321
• 128000-3590, 128000-3591
• 128000-9950, 128000-9951
• 9702809-832
• 428000-5400
• 9722809-095, 9722809-098

EQUIPMENT OE PART NUMBERS:
• Toro 98-9705, 989705, 132-4948
• Genie 866101, 866101GT, 115457, 137137, 147125, 65837GT
• JLG 7023144, 7023144EX
• Case 125442A1, 125442A1R, 200079A1
• Gehl 121959
• Vermeer 296-271-101, 296271101
• Onan 191-2229
• Carrier Transicold 25-39690-00RB, 25-15198-00
• Universal 302474
• Komatsu KT16285-6301-0

OTHER PART NUMBERS:
• Lucas LRS01251, LRS01526
• Delco Remy DRS3714, DRS3299, 93594, 93594P
• Magneton 9-141-327
• Prestolite 20513059
• Wilson 91-29-5315, 91295315, 91-29-5315N

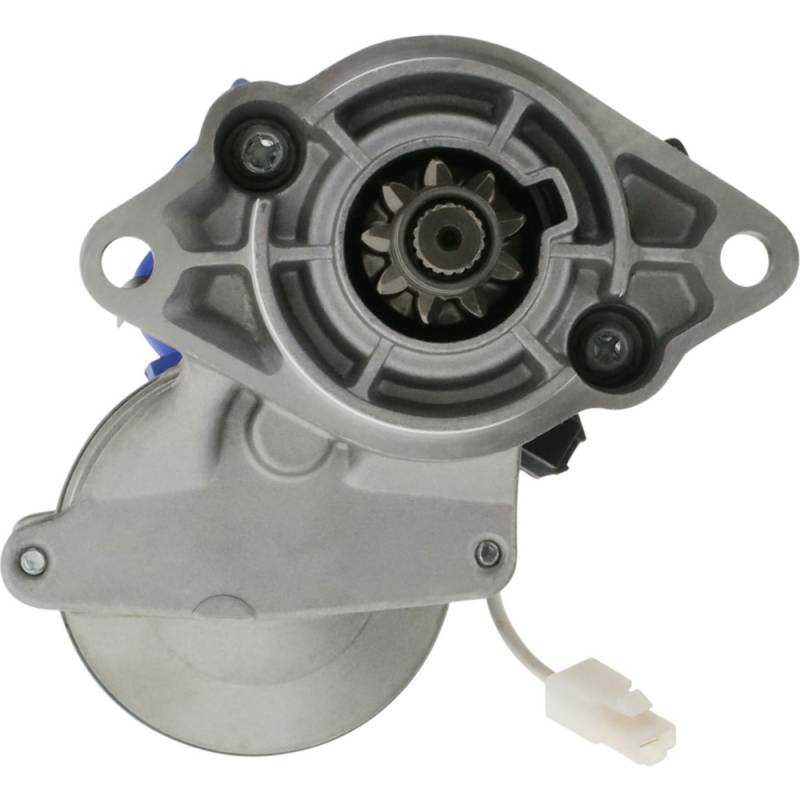

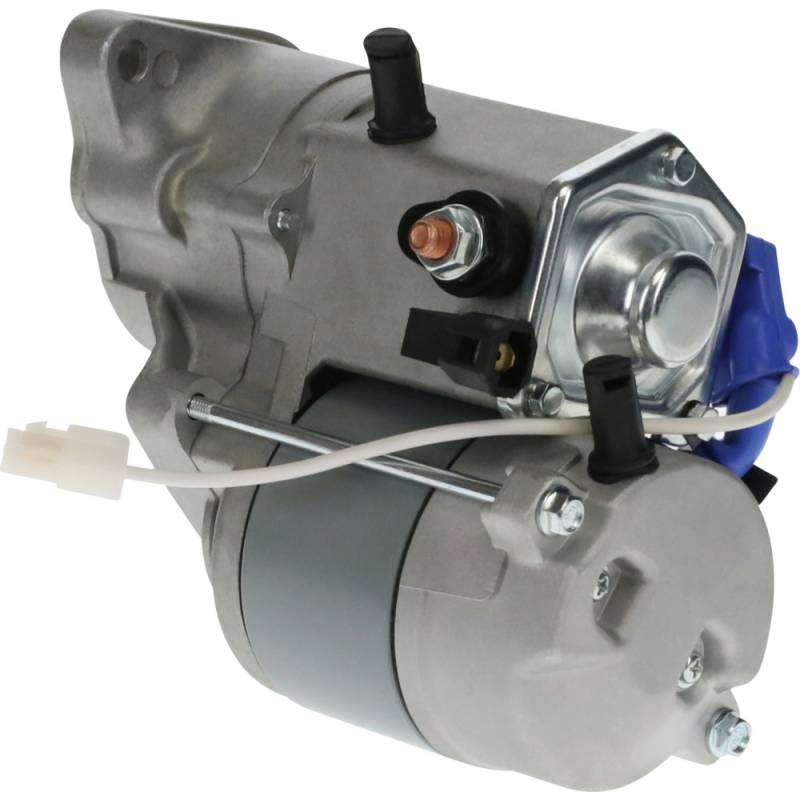

SPECIFICATIONS:
• Type: Denso OSGR (RA family), offset gear reduction
• Voltage: 12 Volt
• Power: 1.4 kW (replaces 1.0 and 1.2 kW)
• Rotation: Clockwise (CW)
• Teeth: 9
• Pinion OD: 28.7 mm / 1.130 in
• Mounting: 2 bolt, 66 mm registry, 8.9 mm unthreaded holes, 109.5 mm center to center
• Weight: 8.5 lb / 3.86 kg
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $303.50
Sale: $173.43
Save: 43%
Save: $130.07
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 1.4 KW DENSO OSGR STARTER:
• 12 volt, 1.4 kW, clockwise, 9 tooth, 28.7 mm pinion
• 2 bolt flange, 66 mm registry, 8.9 mm holes 109.5 mm apart, 8.5 lb
• Replaces Kubota 16611-63010 (1.4 kW) and the 1.0 / 1.2 kW Kubota 16285-63010 family

KUBOTA COMPACT TRACTORS:
• Kubota BX1500D, Z602 diesel
• Kubota BX1800D, D722 diesel
• Kubota BX1830D
• Kubota BX1850D
• Kubota BX1860D, D722E
• Kubota BX2200D
• Kubota BX22
• Kubota BX2230D
• Kubota BX2350D
• Kubota BX2360
• Kubota BX24
• Kubota BX25
• 1988-1998 Kubota B2150DT, B2150DTB, B2150E, B2150HSD, B2150HSD-T, B2150HSE, V1200-5B
• 1987-1990 Kubota B9200DT, B9200E, B9200HSD, B9200HSE, V1200-A
• Kubota B1550, B1550D, B1550E
• Kubota B20
• Kubota BX22D, BX23D
• Kubota B5200, B5200D, B5200E
• Kubota B6200, B6200D, B6200E
• Kubota B7410
• Kubota B8200, B8200D, B8200E

KUBOTA LAWN TRACTORS, MOWERS AND GENERATORS:
• 1989-1995 Kubota G1800, G1800S, D662
• 1989-1995 Kubota G1900, D722
• 1994-2005 Kubota GF1800, GF1800E, GF1800R, GF1800ER, D722
• 1997-2008 Kubota TG1860
• Kubota T1600H
• 1997-2005 Kubota F2260, F2560, F3060, F3060E front mower
• Kubota F2400, F2680E, F2690 front mower
• 2006 Kubota F2880, F2880E 28 HP front mower
• Kubota F3080 front mower
• 2006 Kubota F3680 36 HP front mower
• 1989-2000 Kubota F2000, F2100E, F2400 front mower
• 1989-2000 Kubota FZ2100, FZ2400 zero turn
• Kubota ZD18, ZD21, ZD25, ZD28 zero turn
• Kubota ZD1011, ZD1021, ZD1211, ZD1211L, ZD1211R, ZD1211RL zero turn
• Kubota ZD326, ZD326P, ZD326S, ZD331LP, ZD331RP zero turn
• 1988-1999 Kubota GL5500S, GL6500S generator

KUBOTA EXCAVATORS AND LOADERS:
• 1995-2005 Kubota KX41-2, KX41-2S, KX41-2SV, D1105
• Kubota KX61-2, KX61-2S, D1105
• Kubota KX91-2, KX91-2S, KX91-2GL, V1505
• Kubota KX41, KX41-3
• Kubota KX71-3, KX71H, V1505
• Kubota KH35, KH41, KH61
• 2000-2005 Kubota K008, K008-3, D722
• 2005-2008 Kubota U15
• Kubota R310 wheel loader

KUBOTA ENGINES:
• Kubota D662, D722, D722B, D750, D782, D850-B1, D902, D905, D905B, D905E, D1005, D1105, D1105-T, D1305, V1200, V1200-5B, V1200-A, V1305, V1505, V1505-T, Z600

BOBCAT:
• 2000-2007 Bobcat B200 wheel tractor, D1105 turbo
• Bobcat B250 wheel tractor, D1105
• 2000-2007 Bobcat 553F skid steer, D1105
• 2007-2013 Bobcat 425 excavator, V1505-E3B
• 2008-2013 Bobcat 428 excavator, V1505-E3B

CASE:
• 1994-2007 Case 460 trencher, V1505-B
• 1993-2001 Case Maxi-Sneaker trencher, V1505-B
• Case 1818 uni-loader
• Case 1825 uni-loader
• 1997-1999 Case 1825B uni-loader, V1505

TORO:
• 2001-2004 Toro Groundsmaster 228D
• 2001-2009 Toro Groundsmaster 328D
• 2005-2009 Toro Groundsmaster 3280-D
• 2000-2009 Toro Groundsmaster 3500-D
• 2007-2009 Toro Groundsmaster 7200, 7210
• 2000-2010 Toro Grounds Pro 3100
• 1999-2009 Toro Reelmaster 3100-D
• 1998-2008 Toro Reelmaster 3500-D
• 1998-2006 Toro Reelmaster 5200-D
• 2006-2009 Toro Reelmaster 5210
• 1997-2007 Toro Reelmaster 5300-D
• 1998-2006 Toro Reelmaster 5400-D
• 2006-2009 Toro Reelmaster 5410
• 2000-2006 Toro Reelmaster 5500-D
• 2006-2009 Toro Reelmaster 5510
• 2006-2009 Toro Reelmaster 5610
• 1997-2009 Toro Reelmaster 6500-D
• 2000-2009 Toro Reelmaster 6700-D

GEHL, THOMAS, AVANT, STEINER, GRASSHOPPER, GRAVELY:
• 1991-2005 Gehl SL3825 skid steer, V1305
• Gehl 3825 skid steer, V1305B
• 1989-1998 Thomas T84 skid steer, D722B
• Avant 528, 530+, 630 loader, D1105
• Steiner 230 tractor
• Grasshopper 928D mower
• Gravely 989057

GENIE (GENIE 866101):
• Genie GS-2668 RT, GS-2669 RT, GS-3268 RT, GS-3369 RT, GS-4069 RT scissor lift
• Genie Z-34/22 IC, Z-45/25, Z-45/25 IC, S-60 boom lift
• Genie AL4000D2, AL5000, AL8000HT, RL4000, TML-4000 light tower

OTHER EQUIPMENT:
• 2006 AUSA C150H, C150HX4 forklift, V1505-E2B
• Ingersoll Rand BL-275, D1105T
• Carrier Transicold Optima reefer, CT4-91-TV 1.5L
• Fischer Panda 15DP generator, D1005

LIGHT TOWERS, WELDERS, TRENCHERS AND MARINE:
• 1994-2005 Allmand Nite-Light Pro, TBL 25D light tower
• 1994-2005 Amida AL4000, LT5000 light tower
• 1992-2004 Boss BGP64MH light tower, D905E
• 1999-2007 Ditch Witch HT25 trencher
• 1982-1987 Red D Arc D200K, D950 welder
• 1987-1997 Universal M-35, M4-30, M4-30A marine
