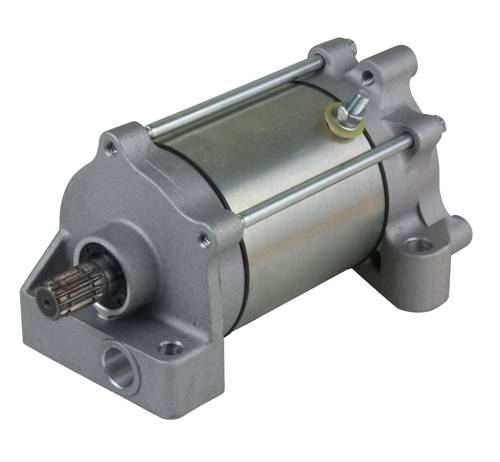

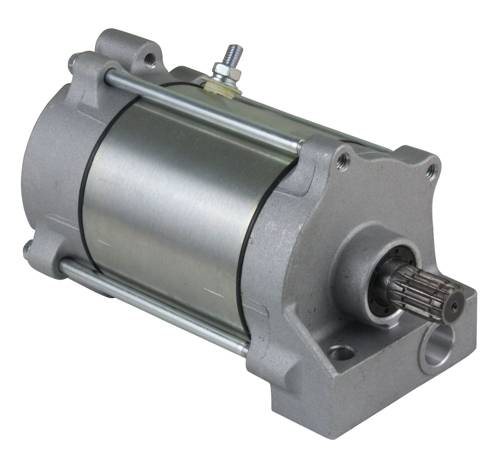

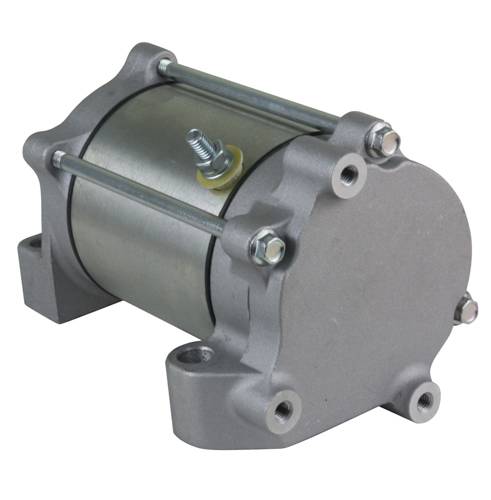

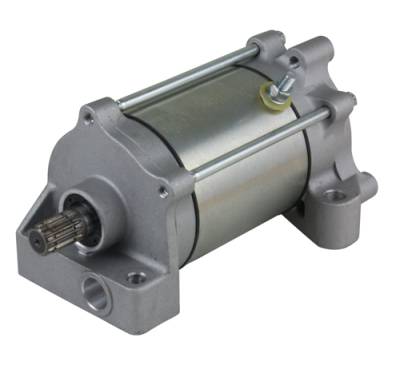

Snowmobile Starter Compatible With Arctic Cat 0745-370 0645-615J Proclimb M 800 Hcr Sno Pro Limited

OEM PART NUMBERS:
• 0745-370 - Arctic Cat primary part number
• 0745370 - Arctic Cat (no dash format)
• 0745-418 - Arctic Cat updated replacement starter
• 0645-615J - Arctic Cat alternate part number

SPECIFICATIONS:
• Type: Starter Motor
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Unit Type: United Technologies
• Voltage: 12V
• Teeth: 14
• Rotation: CW (Clockwise)
• Gear OD: 14.6mm / 0.575"
• Length: 177.2mm / 6.976"
• Weight: 6 lbs / 2.72 kg
• Mount Hole 1: 8.4mm Unthreaded
• Mount Hole 3: 10.5mm Unthreaded
• Mounting Ear Distance: 55.9mm / 2.201"

FITS ARCTIC CAT 800/8000 SNOWMOBILES:
• F800 LXR / Sno Pro LTD - 2013 (800cc)
• M 8000 153/162 / HCR / Limited / Limited ES / Sno Pro - 2014 (794cc)
• ProClimb M 800 / HCR / Sno Pro / Sno Pro Limited - 2012-2013 (794cc)
• ProClimb XF 800 Sno Pro High Country / LTD - 2012-2013 (794cc)
• ProCross F 800 LXR / Sno Pro / RR / Tucker Hibbert - 2012-2013 (794cc)
• ProCross XF 800 CrossTour / LXR / Sno Pro / Sno Pro Limited - 2012-2013 (794cc)
• XF 8000 Cross Country / CrossTour / High Country / Limited / LXR / Sno Pro - 2014 (794cc)
• XF800 Cross Tour / LXR / Sno Pro High Country LTD / Sno Pro LTD - 2013 (800cc)
• ZR 5000 LXR - 2014 (1056cc)
• ZR 8000 Limited / LXR / RR / Sno Pro - 2014 (794cc)

PRODUCT NOTICE:
