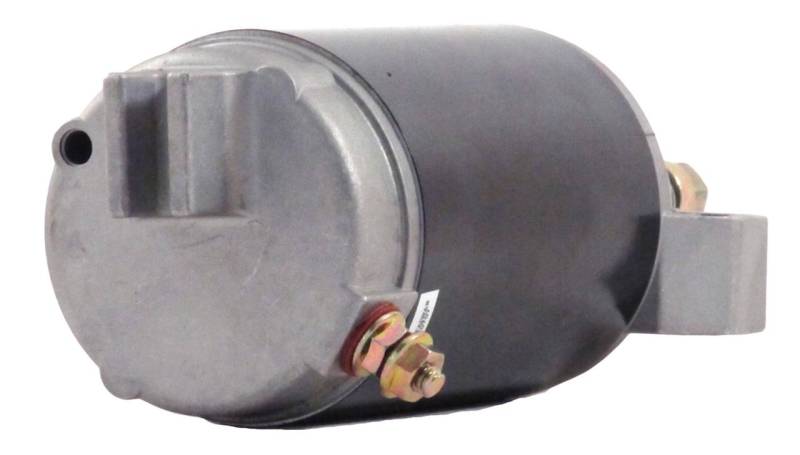

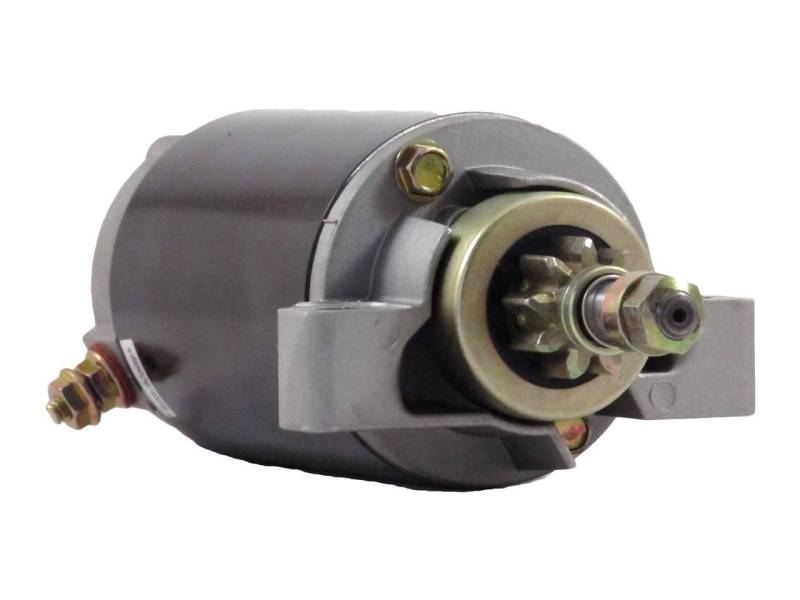

New 12V Ccw Pmdd Starter 9-Tooth Compatible With 2001-2014 Mercury Marine 40Elpt B/F Efi 4-Stroke

(0) Reviews: Write first review
5901*1
OEM CROSS-REFERENCE PART NUMBERS — MERCURY MARINE / MARINER:
• Mercury / Mariner: 50-859377T / 50859377T / 859377T
• Mercury / Mariner: 50-884044T / 50884044T / 884044T
• Mercury / Mariner: 50-888161T / 50888161T / 888161T
• Mercury / Mariner: 50-893888T / 50893888T / 893888T
• Mercury / Mariner (no-T variants): 50-859377 / 50-884044 / 50-888161 / 50-893888

OEM CROSS-REFERENCE PART NUMBERS — MERCURY QUICKSILVER:
• Mercury Quicksilver: 893888T

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: 10153440
• Johnson Electric: 10153440-M030SM

OEM CROSS-REFERENCE PART NUMBERS — SIERRA MARINE:
• Sierra Marine: 18-6435 / 186435

OEM CROSS-REFERENCE PART NUMBERS — ARCO MARINE:
• Arco Marine: 5360

SPECIFICATIONS:
• Product Type: Mercury / Mariner 40-60HP 4-Stroke Outboard Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / Mercury Marine
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 9
• Pinion / Gear OD: 29.4mm / 1.157"
• Field Case Length: 5" / 127mm
• Mounting Ear 1: 8.1mm Unthreaded
• Mounting Ear 2: 8.1mm Unthreaded
• Weight: 7.05 lbs / 3.2 kg
• Engine: Mercury 4-Stroke 4-Cylinder 57.0ci (early) / 60.8ci (later) Powerhead
• Application: Mercury / Mariner 40HP / 50HP / 60HP B/F + EFI 4-Stroke Outboards (2001-2014, SeaPro/CT to 2018-2020)
• Condition: New

APPLICATION SUMMARY — MERCURY/MARINER 40-60HP 4-STROKE 2001-2014:
• 2001 Mariner 50/60HP all variants (50EL B/F, 50ELHPT, 50ELPT, 50ELPT EFI, 60ELHPT, 60ELPT, 60ELPT B/F, 60ELPT EFI)
• 2001-2014 Mercury 40ELPT B/F + 50/60ELHPT/ELPT (all carbureted variants)
• 2002-2012 Mercury 40/50/60HP EFI variants (B/F EFI, ELHPT EFI, ELPT EFI)
• 2009 Mercury 60EXLPT B/F EFI / 2013 Mercury 60ELH B/F
• 2015-2020 Mercury 40ELPT C/T Command Thrust / 2017-2018 Mercury 40ELGABT B/T SeaPro

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $226.71
Sale: $129.55
Save: 43%
Save: $97.16
Qty:
Free Shipping!

Description

MERCURY 4-STROKE 4-CYLINDER POWERHEAD FAMILY (PRIMARY ENGINE):
• Mercury 4-Stroke 57.0ci 4-Cylinder Powerhead (early production 2001-2003)
• Mercury 4-Stroke 60.8ci 4-Cylinder Powerhead (later production 2004-2012)
• Used across 40HP / 50HP / 60HP variants in B/F (Big Foot), C/T (Command Thrust), and EFI configurations

MARINER MARINE 50HP & 60HP B/F 4-STROKE OUTBOARDS (2001):
• 2001 Mariner Marine 50EL B/F 4-Stroke 50HP Outboard — 57.0ci 4-Cyl
• 2001 Mariner Marine 50ELHPT 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Hand-Tilt Power Trim
• 2001 Mariner Marine 50ELPT 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Long Shaft Power Trim
• 2001 Mariner Marine 50ELPT B/F 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Big Foot
• 2001 Mariner Marine 50ELPT EFI 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Electronic Fuel Injection
• 2001 Mariner Marine 60ELHPT 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Hand-Tilt Power Trim
• 2001 Mariner Marine 60ELPT 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Long Shaft Power Trim
• 2001 Mariner Marine 60ELPT B/F 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Big Foot
• 2001 Mariner Marine 60ELPT EFI 4-Stroke 60HP Outboard — 57.0ci 4-Cyl EFI

MERCURY MARINE 40HP B/F 4-STROKE OUTBOARDS (2001-2014):
• 2001-2014 Mercury Marine 40ELPT B/F 4-Stroke 40HP Outboard — 57.0ci 4-Cyl Big Foot Long Shaft Power Trim
• 2002-2012 Mercury Marine 40ELPT EFI B/F 4-Stroke 40HP Outboard — 57.0ci/60.8ci 4-Cyl Big Foot EFI

MERCURY MARINE 50HP 4-STROKE OUTBOARDS (2001-2014):
• 2001-2014 Mercury Marine 50ELHPT 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Hand-Tilt Power Trim
• 2002-2012 Mercury Marine 50ELHPT EFI 4-Stroke 50HP Outboard — 57.0ci/60.8ci 4-Cyl EFI
• 2001-2014 Mercury Marine 50ELPT 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Long Shaft Power Trim
• 2001-2014 Mercury Marine 50ELPT B/F 4-Stroke 50HP Outboard — 57.0ci 4-Cyl Big Foot
• 2002-2012 Mercury Marine 50ELPT B/F EFI 4-Stroke 50HP Outboard — 57.0ci/60.8ci 4-Cyl Big Foot EFI
• 2002-2012 Mercury Marine 50ELPT EFI 4-Stroke 50HP Outboard — 57.0ci/60.8ci 4-Cyl EFI

MERCURY MARINE 60HP 4-STROKE OUTBOARDS (2001-2014):
• 2013 Mercury Marine 60ELH B/F 4-Stroke 60HP Outboard — 60.8ci 4-Cyl Big Foot Hand-Tilt
• 2001-2014 Mercury Marine 60ELHPT 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Hand-Tilt Power Trim
• 2002-2012 Mercury Marine 60ELHPT EFI 4-Stroke 60HP Outboard — 57.0ci/60.8ci 4-Cyl EFI
• 2001-2014 Mercury Marine 60ELPT 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Long Shaft Power Trim
• 2001-2014 Mercury Marine 60ELPT B/F 4-Stroke 60HP Outboard — 57.0ci 4-Cyl Big Foot
• 2002-2012 Mercury Marine 60ELPT B/F EFI 4-Stroke 60HP Outboard — 57.0ci/60.8ci 4-Cyl Big Foot EFI
• 2002-2012 Mercury Marine 60ELPT EFI 4-Stroke 60HP Outboard — 57.0ci/60.8ci 4-Cyl EFI
• 2009 Mercury Marine 60EXLPT B/F EFI 4-Stroke 60HP Outboard — 60.8ci 4-Cyl Extra Long Big Foot EFI

MERCURY MARINE EXTENDED SEAPRO & COMMAND THRUST APPLICATIONS:
• 2017-2018 Mercury Marine 40ELGABT B/T SeaPro 4-Stroke 40HP Outboard — Heavy-Duty Commercial
• 2015-2020 Mercury Marine 40ELPT C/T 4-Stroke 40HP Outboard — Command Thrust High-Torque variant

MERCURY/MARINER MODEL NAMING DECODER:
• E = Electric Start / EL = Electric Long shaft / ELH = Electric Long Hand-tilt
• ELHPT = Electric Long Hand-tilt Power Trim / ELPT = Electric Long Power Trim
• B/F = Big Foot model variant (larger gearcase for high-thrust applications)
• C/T = Command Thrust (high-torque variant for displacement hulls)
• EFI = Electronic Fuel Injection / SeaPro = Heavy-duty commercial variant
• EXLPT = Extra Long shaft Power Trim

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 9-tooth pinion, 1.157" (29.4mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric / Mercury Marine design
• Field case length: 5" / 127mm
• Mounting: 2 ears (both 8.1mm unthreaded)
• Weight: 7.05 lbs (3.2 kg)
• OEM Manufacturer: Johnson Electric / Mercury Marine
• Will NOT fit Mercury / Mariner 25HP B/F 4-Stroke (Yamaha-built powerhead — )
• Will NOT fit Mercury / Mariner 30HP 4-Stroke (different powerhead family)
• Will NOT fit Mercury / Mariner 75HP / 90HP 4-Stroke EFI (different powerhead family)
• Will NOT fit Mercury / Mariner 2-Stroke outboards (different starter family)
• Will NOT fit Mercury V6 outboards (different starter family)
• Always verify your OEM part number from the original starter unit before ordering
