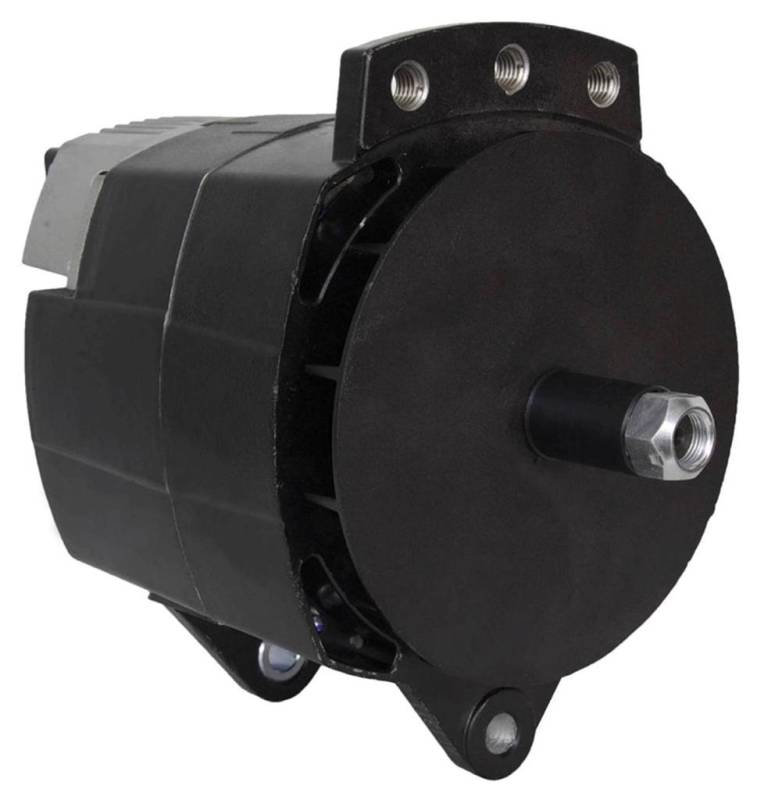

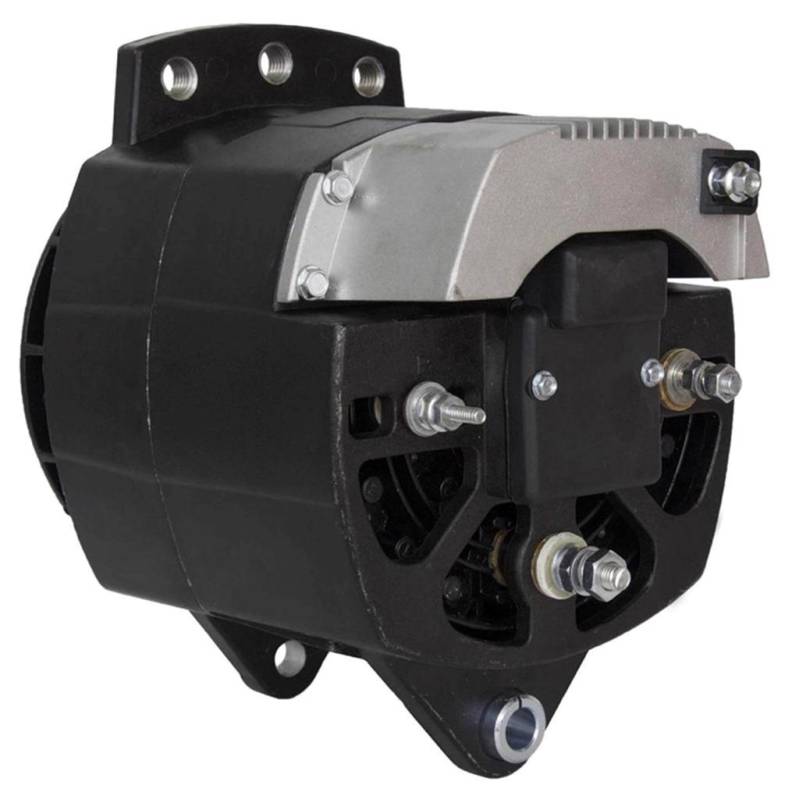

New 24V 100 Amp Alternator Compatible With Volvo Penta Marine Inboard Tamd74l Tamd74p 8Sc3014us

MOTOROLA: 8SC3014US
PRESTOLITE: 110-298
RENAULT: 5000789396

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: MOTOROLA
VOLTAGE: 24
AMPERAGE: 100
FAN: EXTERNAL
REGULATOR: INTERNAL
ADJUSTABLE: NO
HOUSING COATING: RAW
LAMP DRIVER: NO
MOUNT: J-180
MOUNTING BOLT SIZE: 1/2-13 NC
MOUNTING HOLES: 3
NEGATIVE STUD SIZE: M6X1 .25 THD
POSITIVE STUD SIZE: M8X1 .25 THD
RECTIFIER LOCATION: INTERNAL
REGULATOR EXCITE: IGNITION EXCITE
REGULATOR MODEL: 8RL3024
REGULATOR SENSE: LOCAL SENSE
ROTATION: CLOCKWISE
SHAFT DIAMETER: .8740-.8745
SMARTCHEK REGULATOR: NO
TRIO: YES
UL APPROVED: NO
NOTES: METRIC MOUNTING
WEIGHT: 27.47 LBS / 12.49 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
