OEM PART NUMBERS:
• Volvo Penta: 850834-3 / 8508343
• Volvo Penta (Superseded): 850834 / 8508340
• Electrolux: KP5024/120 (original OEM motor — Electrolux owned Volvo Penta)
• Quicksilver: 8M6007553
AFTERMARKET CROSS REFERENCE:
• API Marine: PT404NM
• Arco Marine: 6223
• 18-6758

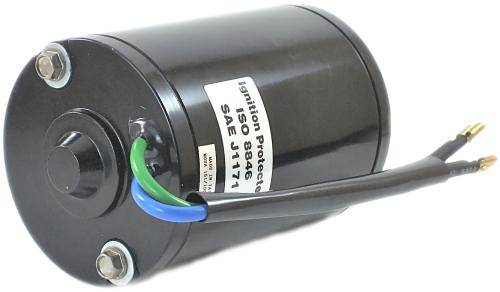

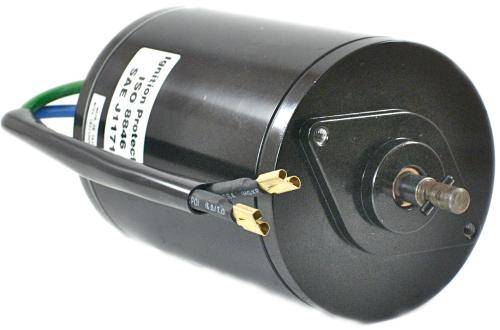

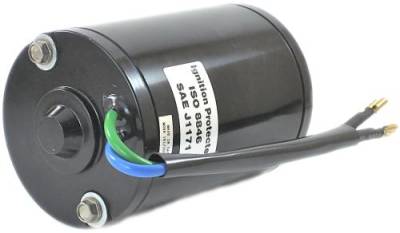

SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Wire Connection: 2-Wire Harness w/Female Spade Terminals
• Shaft OD: 7.2mm (0.283 in)
• Shaft Type: Roll Pin
• Field Housing OD: 75.4mm (2.969 in)
• Overall Length: 130.1mm (5.122 in)
• SAE J1171 Marine Ignition Protection Certified
• Weight: 3.235 lbs (1.47 kg)
• Condition: New
VOLVO PENTA 4-CYL & 6-CYL GASOLINE:
• AQ105/AQ115 2.0L B20 / AQ120B/AQ125 2.1L B21 / AQ125B/AQ131/AQ145 2.3L B23
• AQ140 2.1L B21 / AQ151 2.5L B25 / AQ171/251 2.5L DOHC B25
• AQ165/AQ170 3.0L 6-Cyl B30
• BB115/BB145/MB20 4-Cyl Inboard
VOLVO PENTA V8 GASOLINE (GM-BASED):
• AQ200 5.0L V8 (1969-86) / AQ225 5.0L V8 (1973-86)
• AQ255 5.7L V8 (1977-78) / AQ260 5.7L V8 (1978-85) / AQ280 5.7L V8
• BB225 5.0L V8 / BB260 5.7L V8 Inboard
VOLVO PENTA DIESEL:
• MD21 / MD30 / TMD30 / TMD40 / TAMD30 / TAMD40
• Stern Drive Units: 200/250/270/275/280/290/290DP/SP
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
