OEM PART NUMBERS:
• White Rodgers: 120-902 / 120902
• White Rodgers: 120-108751 / 120108751
• White Rodgers: 120-108751-6 / 1201087516
• White Rodgers: 120-902S1 / 120902S1
SPECIFICATIONS:
• Voltage: 15V DC (For Use in 12V Systems)
• Continuous Amps: 100
• Surge Amps: 400
• Number of Terminals: 4
• Coil Termination: #10-32
• Contact Termination: 5/16"-24
• Mounting: Flat 180 (F180)
• Duty Cycle: Continuous
• Case Material: Plastic
• Contact Material: Silver
• Configuration: SPST (Single Pole Single Throw)
• Contact Type: Normally Open
• Coil Type: Isolated
• Enclosure: Water Resistant
• Includes Mounting Hardware
• Condition: New
APPLICATION:
• RV and Motorhome Battery Isolator/Disconnect Systems
• Marine Battery Management and Power Switching
• Winch Power Relay and Hydraulic Pump Applications
• Industrial and Commercial DC Power Switching Equipment
• Various applications by part number

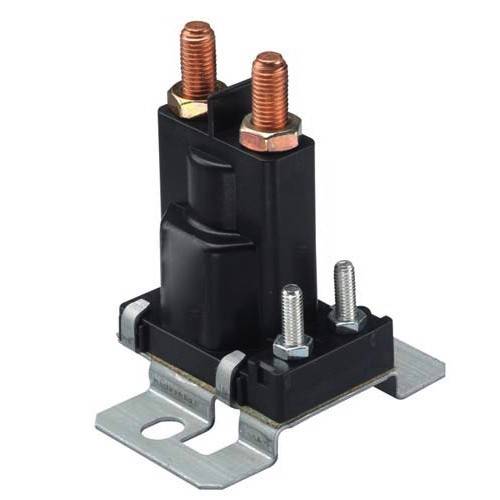

15V 100 Amp 4 Terminal Continuous Duty Solenoid - White Rodgers 120-902
New 15 volt DC power solenoid rated at 100 amps continuous and 400 amps surge. Features 4 terminals with SPST normally open configuration, isolated coil, silver contacts, and water resistant plastic enclosure. Flat 180 mounting with included hardware. Direct replacement for White Rodgers 120-902, 120-108751, 120-108751-6, and 120-902S1. Always use a back-up wrench to hold the bottom nut when tightening.
