MEYER ELECTRO-LIFT HYDRAULIC UNITS:
• Meyer E-47 Electro-Lift hydraulic pump motor (raise, lower and power angle, 6 in stroke)
• Meyer E-47H Electro-Lift hydraulic pump motor (raise, lower and power angle, 8 in stroke)
• Meyer E-46 Electro-Lift hydraulic pump motor (raise and lower, 6 in stroke)
• Meyer E-46H Electro-Lift hydraulic pump motor (raise and lower, 8 in stroke)
• Meyer E-48 Electro-Lift hydraulic pump motor
• Meyer pump and motor assembly 15153 (motor 15054 with pump 15026) for the E-46, E-46H, E-47 and E-47H
• Meyer hydraulic pump motors, various models
MEYER SNOW PLOWS:
• Meyer ST-6.5 snow plow with the E-46 or E-47 Electro-Lift
• Meyer STP-7.5 snow plow with the E-46 or E-47 Electro-Lift
• Meyer C-7.5 snow plow with the E-46 or E-47 Electro-Lift
• Meyer C-9 snow plow with the E-46 or E-47, or the long stroke E-46H or E-47H
• Meyer HM-9 snow plow with the E-46H or E-47H Electro-Lift
• Meyer HM-10 snow plow with the E-46H or E-47H Electro-Lift
• Meyer MDII snow plow with the E-47H Electro-Lift
DIAMOND SNOW PLOWS:
• Diamond Equipment snow plows with the E-47H Electro-Lift (Diamond motor 15054)
SPECIFICATIONS:

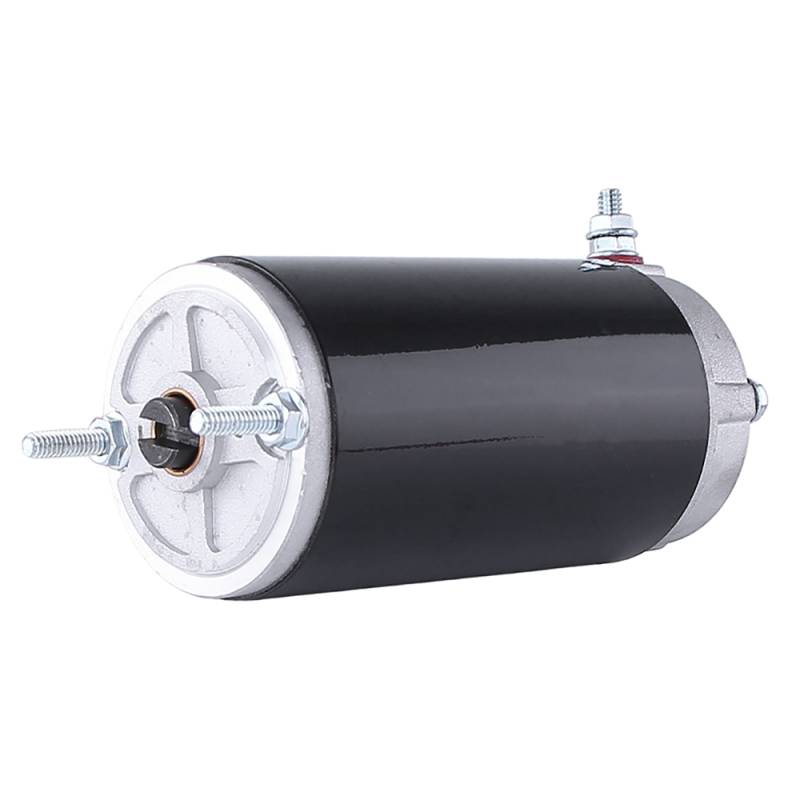

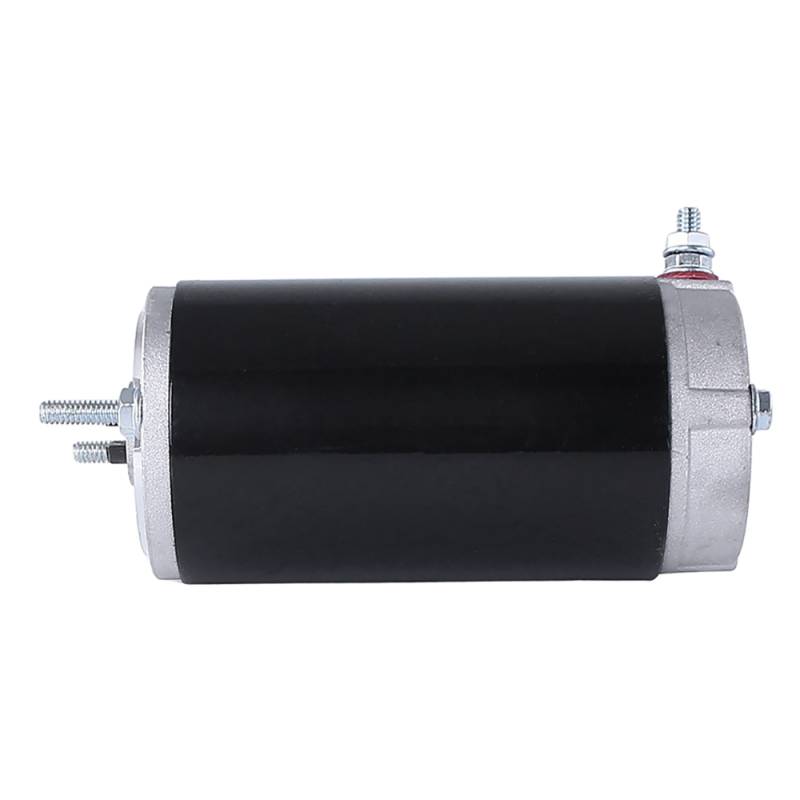

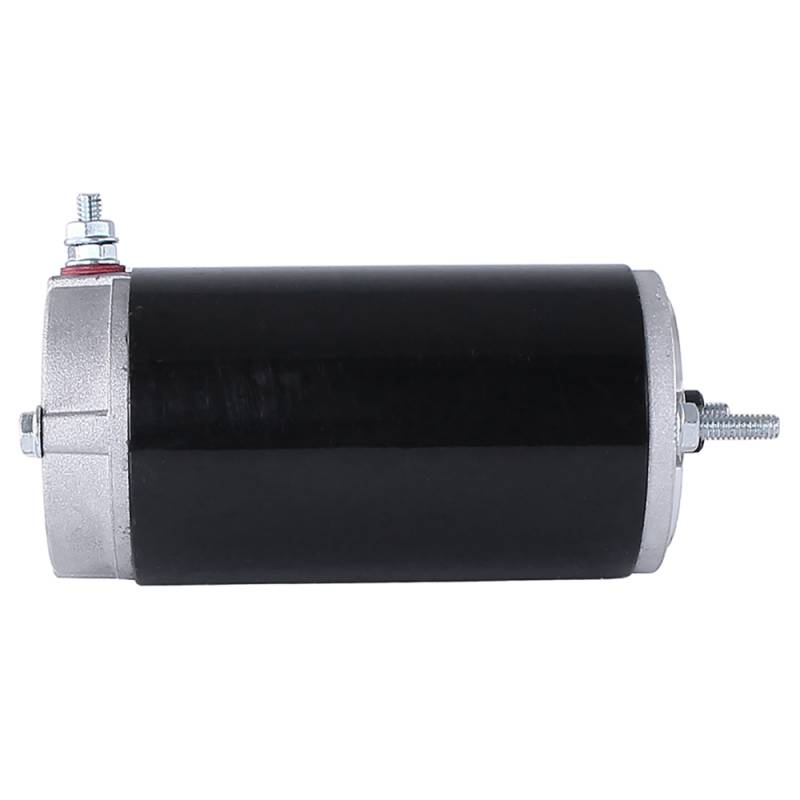

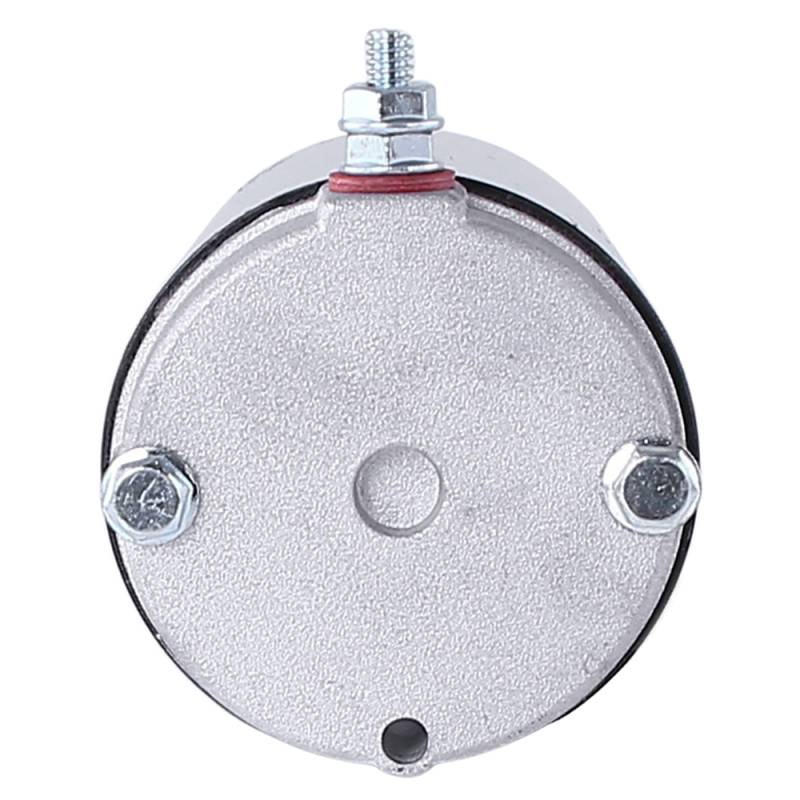

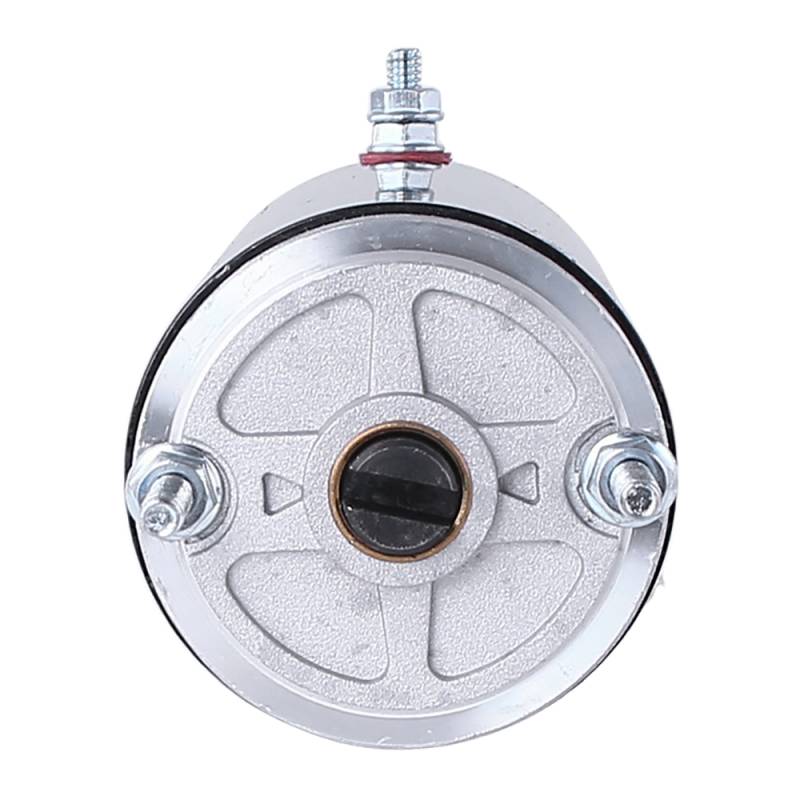

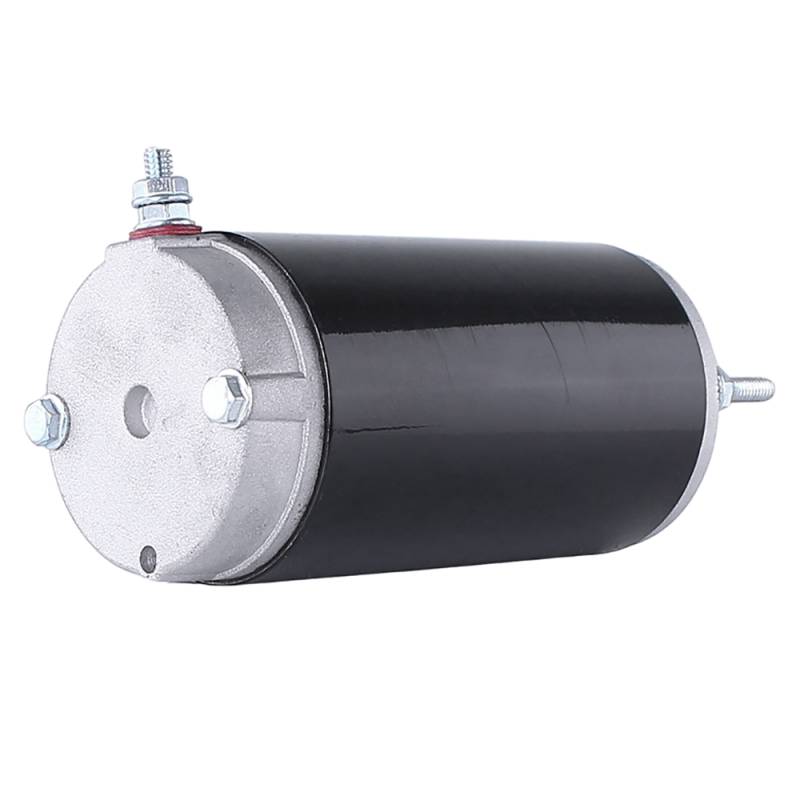

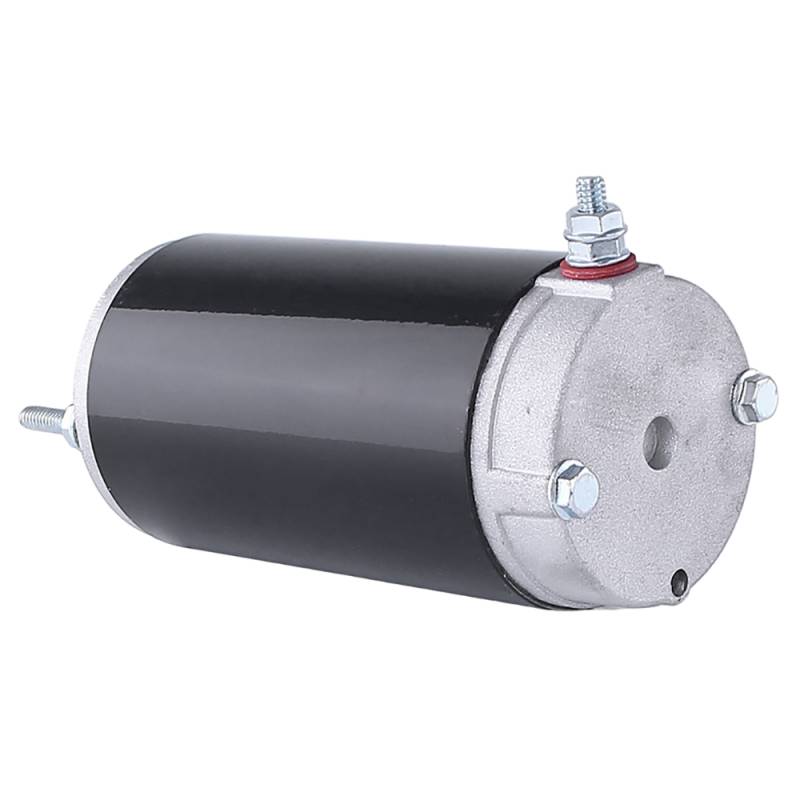

• Product type: Snow plow lift motor, 3 inch permanent magnet
• Voltage: 12V DC
• Rotation: CCW (counterclockwise)
• Field housing OD: 3.079 in (78.2 mm)
• Overall length: 6.374 in (161.9 mm)
• Shaft: 0.626 in (15.9 mm) OD with 3/16 in wide slot
• Terminal: 1/4-20
• Through bolts: 1/4-20 on 2.5 in (63.5 mm) centers
• Drive end: Bushing
• Weight: 6.525 lb (2.97 kg)
• Condition: New aftermarket
