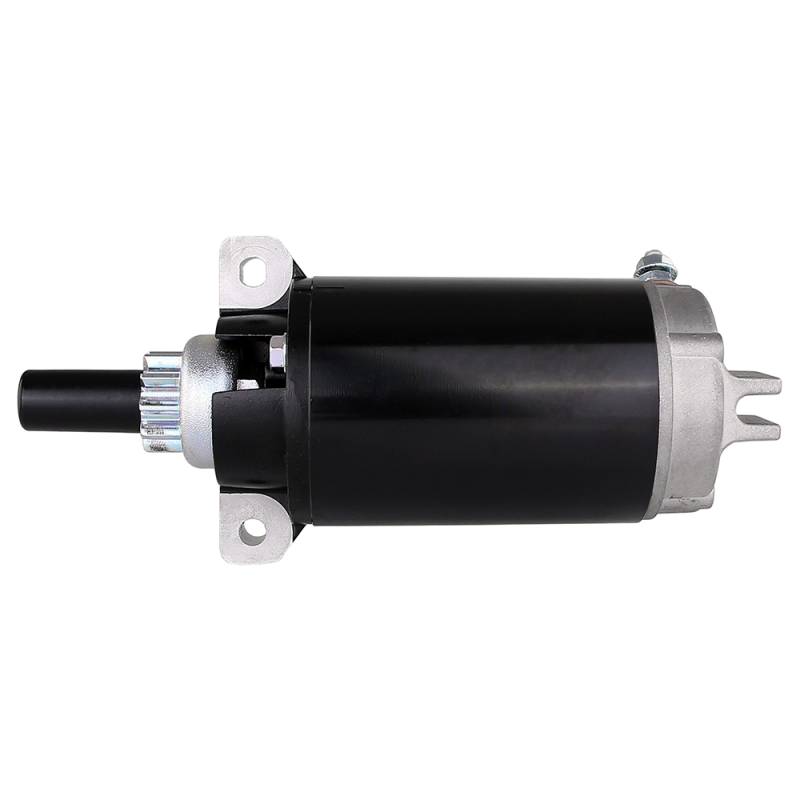

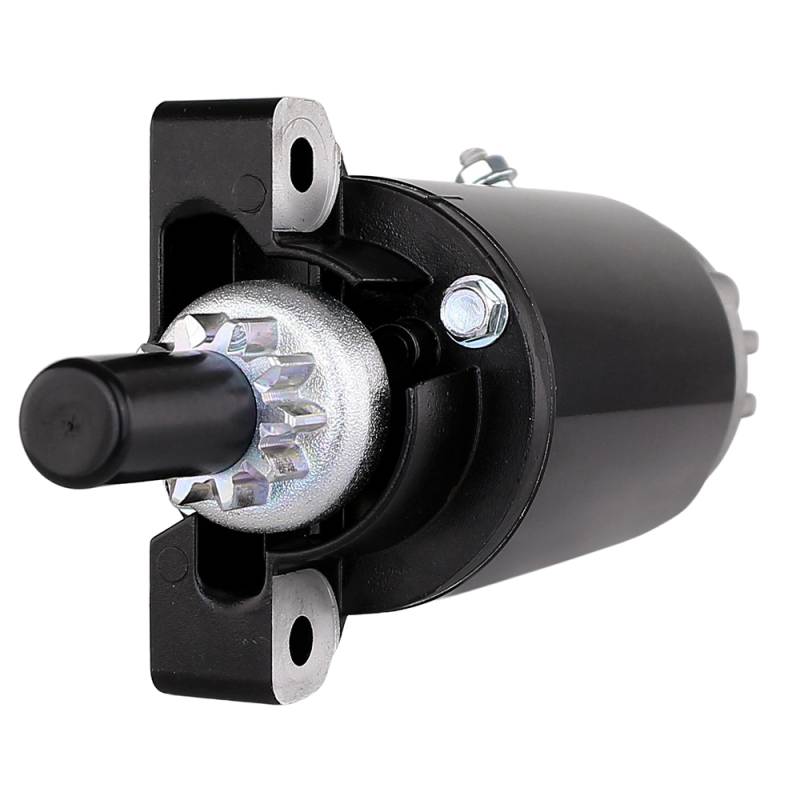

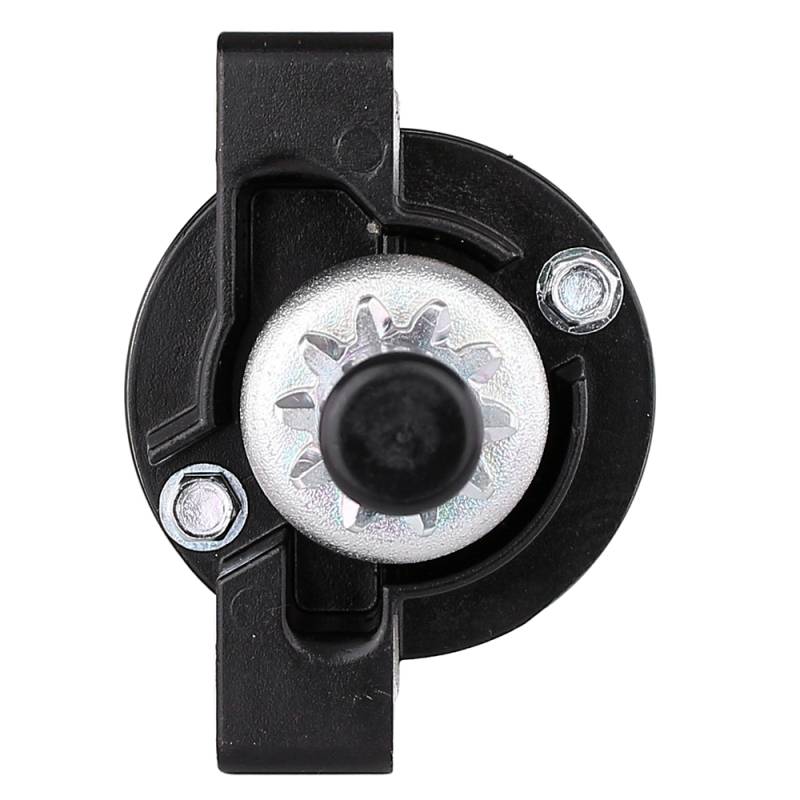

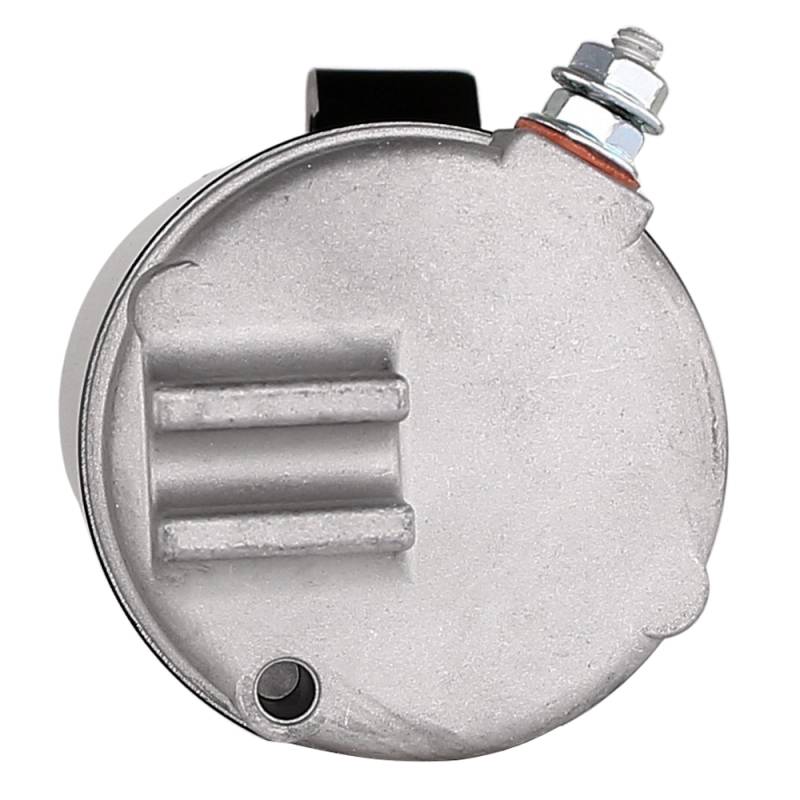

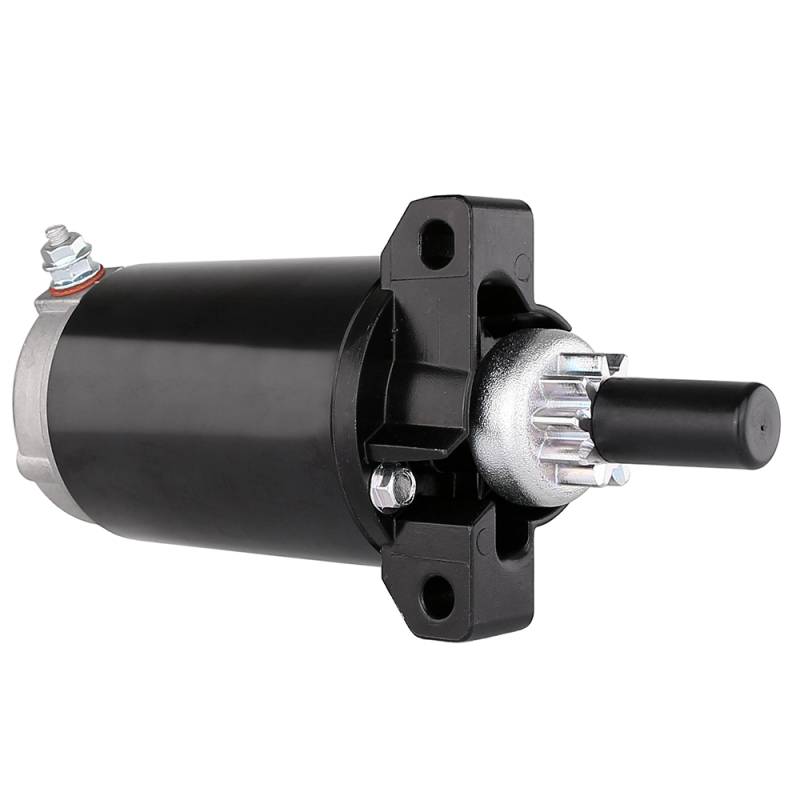

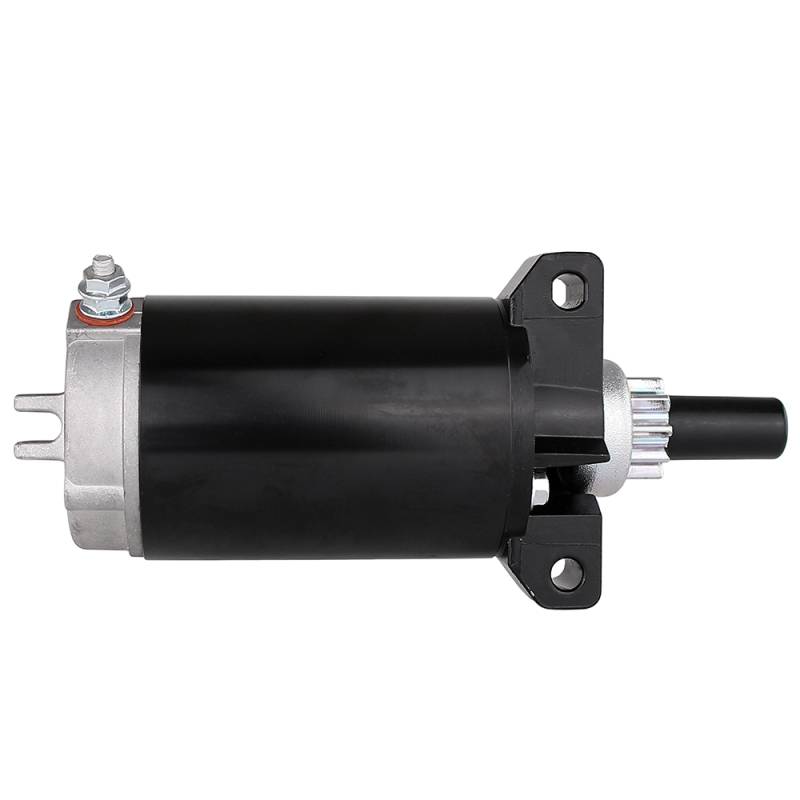

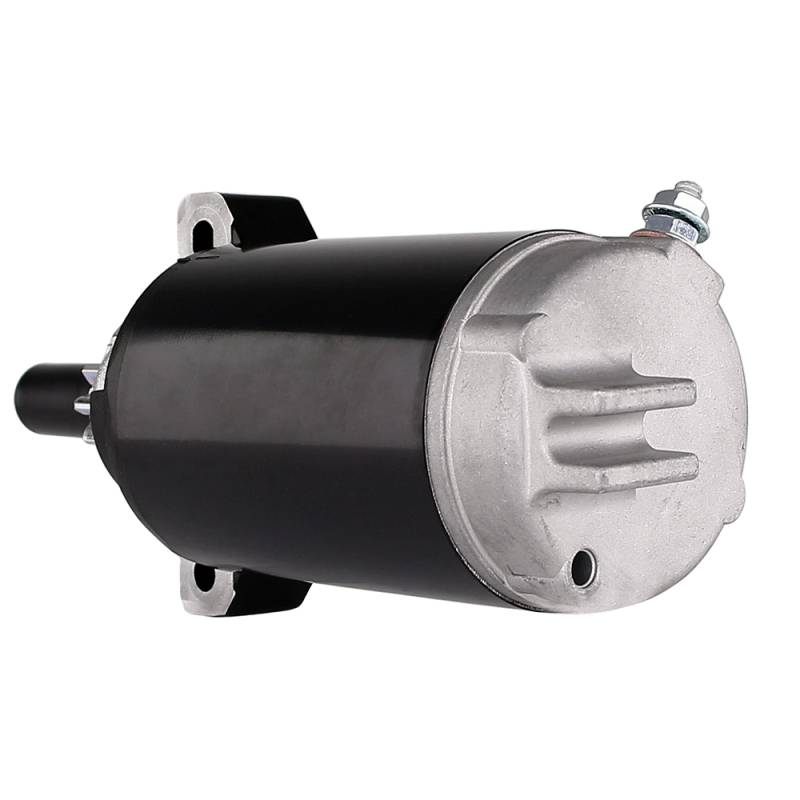

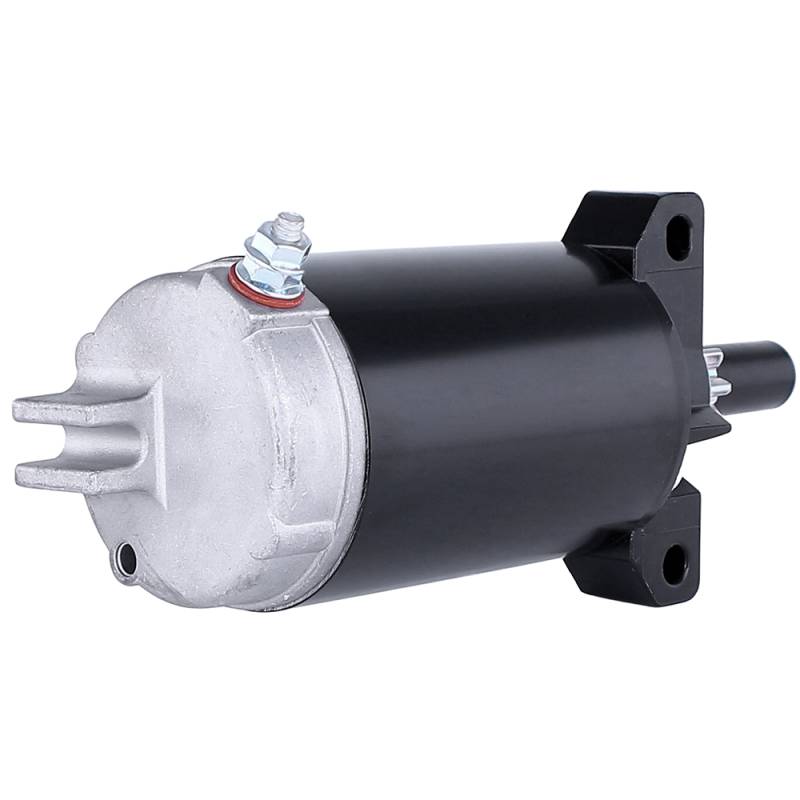

Starter Motor Compatible With Mercury 40Elhpto 40Elpt 4-Stroke 50Elhpto 60Elhpto Mariner Outboard

(0) Reviews: Write first review
5726*5
OEM PART NUMBERS:
• Mercury Marine: 50-822462 / 50822462
• Mercury Marine: 50-822462-1 / 508224621
• Mercury Marine: 50-822462T / 50822462T
• Mercury Marine: 50-822462T1 / 50822462T1
• Mercury Marine: 50-893890T / 50893890T
• United Technologies: 5675640 / 5675640-M030SM / 5675640MO30SM
• United Technologies: SM56756

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Tooth Count: 10
• Gear OD: 29mm / 1.142"
• Field Housing Length: 4.0" / 101.6mm
• Mounting: 2x 8mm Unthreaded Ears
• SAE J1171 Marine Ignition Protection Certified
• Weight: 5.94 lbs / 2.70 kg
• Condition: New

MERCURY & MARINER OUTBOARD APPLICATIONS:
• Mercury 30HP 3-Cyl 39.3ci 2-Stroke: 30EHO, 30ELHO, 30ELO, 30ELPTO, 30EO (1994-2002)
• Mercury 40HP 3-Cyl 43.9ci / 4-Cyl 59.0ci: 40ELHPTO, 40ELO, 40ELPTO, 40EO, 40EO Jet 30 (1997-2005)
• Mercury 40HP 4-Stroke 45.6ci: 40ELPT (1998)
• Mercury 50HP 4-Cyl 59.0ci 2-Stroke: 50ELHPTO, 50ELO, 50ELPTO, 50EO (1998-2009)
• Mercury 60HP 4-Cyl 59.0ci 2-Stroke: 60ELHPTO, 60ELO, 60ELPTO, 60ELPTO BigFoot, 60EO, 60EO Jet 45 (1998-2005)
• Mariner 30HP 3-Cyl 39.3ci: 30EHO, 30ELHO, 30ELO, 30ELPTO, 30EO (1994-2001)
• Mariner 40HP 3-Cyl 43.9ci / 4-Cyl 59.0ci: 40ELHPTO, 40ELO, 40ELPTO, 40EO, 40EO Jet 30 (1997-2001)
• Mariner 50HP 4-Cyl 59.0ci: 50ELHPTO, 50ELO, 50ELPTO, 50EO (1998-2001)
• Mariner 60HP 4-Cyl 59.0ci: 60ELHPTO, 60ELO, 60ELPTO, 60ELPTO BigFoot, 60EO, 60EO Jet 45 (1998-2001)

AFTERMARKET CROSS REFERENCE:
• Arco Marine: 5396
• Sierra: 18-5621

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $151.59
Sale: $86.62
Save: 43%
Save: $64.97
Qty:
Free Shipping!

Description

MERCURY 30HP 2-STROKE OUTBOARD (1994-2002):
• 30EHO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2002)
• 30ELHO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2002)
• 30ELO 3-Cyl 39.3ci 30HP 2-Stroke (1994-2002)
• 30ELPTO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2001)
• 30EO 3-Cyl 39.3ci 30HP 2-Stroke (1994-2002)

MERCURY 40HP OUTBOARD (1997-2005):
• 40ELHPTO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELHPTO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2005)
• 40ELO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2005)
• 40ELPT 4-Stroke 45.6ci 40HP (1998)
• 40ELPTO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELPTO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2005)
• 40EO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40EO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2005)
• 40EO Jet 30 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40EO Jet 30 4-Cyl 59.0ci 40HP 2-Stroke (1998-2005)

MERCURY 50HP 2-STROKE OUTBOARD (1998-2009):
• 50ELHPTO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2005)
• 50ELO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2002)
• 50ELPTO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2009)
• 50EO 4-Cyl 59.0ci 50HP 2-Stroke (1999-2001)

MERCURY 60HP 2-STROKE OUTBOARD (1998-2005):
• 60ELHPTO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2002)
• 60ELO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2002)
• 60ELPTO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2005)
• 60ELPTO Big Foot 4-Cyl 59.0ci 60HP 2-Stroke (1998-2005)
• 60EO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2002)
• 60EO Jet 45 4-Cyl 59.0ci 60HP 2-Stroke (1998-2005)

MARINER 30HP 2-STROKE OUTBOARD (1994-2001):
• 30EHO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2000)
• 30ELHO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2000)
• 30ELO 3-Cyl 39.3ci 30HP 2-Stroke (1994-2000)
• 30ELPTO 3-Cyl 39.3ci 30HP 2-Stroke (1995-2001)
• 30EO 3-Cyl 39.3ci 30HP 2-Stroke (1994-2000)

MARINER 40HP OUTBOARD (1997-2001):
• 40ELHPTO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELHPTO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2001)
• 40ELO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2001)
• 40ELPTO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40ELPTO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2001)
• 40EO 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40EO 4-Cyl 59.0ci 40HP 2-Stroke (1998-2001)
• 40EO Jet 30 3-Cyl 43.9ci 40HP 2-Stroke (1997)
• 40EO Jet 30 4-Cyl 59.0ci 40HP 2-Stroke (1998-2001)

MARINER 50HP 2-STROKE OUTBOARD (1998-2001):
• 50ELHPTO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2001)
• 50ELO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2001)
• 50ELPTO 4-Cyl 59.0ci 50HP 2-Stroke (1998-2001)
• 50EO 4-Cyl 59.0ci 50HP 2-Stroke (1999-2001)

MARINER 60HP 2-STROKE OUTBOARD (1998-2001):
• 60ELHPTO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2000)
• 60ELO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2000)
• 60ELPTO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2001)
• 60ELPTO Big Foot 4-Cyl 59.0ci 60HP 2-Stroke (1998-2000)
• 60EO 4-Cyl 59.0ci 60HP 2-Stroke (1998-2001)
• 60EO Jet 45 4-Cyl 59.0ci 60HP 2-Stroke (1998-2001)
