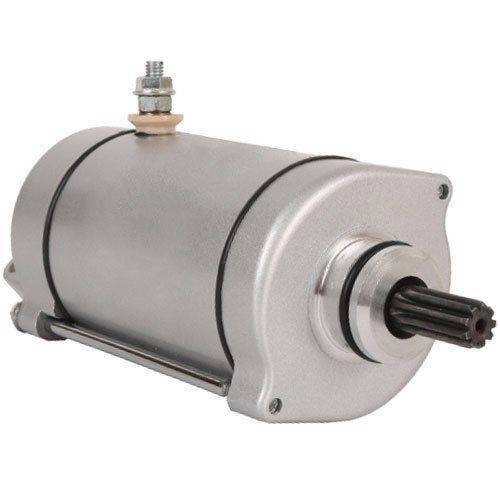

Starter Compatible With Honda Vtx1800n Neo-Retro 2004-2008 Vtx1800f Performance 1795Cc 52-Degree

(0) Reviews: Write first review
18678*2
OEM PART NUMBERS:
• Honda: 31200-MCH-000 / 31200MCH000
• Honda: 31200-MCH-A00 / 31200MCHA00
• Honda: 31200-MCH-831 / 31200MCH831
• Honda: 31200-MCV-R20 / 31200MCVR20

SPECIFICATIONS:
• Item Type: Starter Motor
• OEM Manufacturer: Mitsuba
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Power: 0.8 kW
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 11.6mm (0.457 in)
• Mounting: Dual 6.5mm Unthreaded
• Weight: 6 lbs / 2.72 kg
• Condition: New

HONDA VTX1800 MOTORCYCLE APPLICATIONS:
• VTX1800C Custom/Classic 1795cc 52° V-Twin 106HP (2002-2007)
• VTX1800R Retro (Cast Wheels) 1795cc 52° V-Twin (2002-2007)
• VTX1800S Retro (Spoke Wheels) 1795cc 52° V-Twin (2002-2006)
• VTX1800N Neo-Retro 1795cc 52° V-Twin (2004-2008)
• VTX1800F Performance Cruiser 1795cc 52° V-Twin (2005-2008)
• VTX1800T Tourer 1795cc 52° V-Twin (2007-2008)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $108.19
Sale: $61.82
Save: 43%
Save: $46.37
Qty:
Free Shipping!

Description

HONDA VTX1800C CUSTOM / CLASSIC (2002-2007):
• VTX1800C 1795cc Liquid-Cooled SOHC 52° V-Twin 106HP PGM-FI (2002-2004)
• VTX1800C1 1795cc Liquid-Cooled SOHC 52° V-Twin 106HP PGM-FI (2005-2007)
• VTX1800C2 1795cc Liquid-Cooled SOHC 52° V-Twin (2005-2006)
• VTX1800C3 1795cc Liquid-Cooled SOHC 52° V-Twin (2005-2006)

HONDA VTX1800R RETRO (2002-2007):
• VTX1800R Retro (Cast Wheels) 1795cc 52° V-Twin 106HP (2002-2003)
• VTX1800R1 Retro 1795cc 52° V-Twin (2004-2007)
• VTX1800R2 Retro 1795cc 52° V-Twin (2004-2007)
• VTX1800R3 Retro 1795cc 52° V-Twin (2004-2007)

HONDA VTX1800S RETRO SPOKE (2002-2006):
• VTX1800S Retro (Spoke Wheels) 1795cc 52° V-Twin 106HP (2002-2003)
• VTX1800S1 1795cc 52° V-Twin (2004-2006)
• VTX1800S2 1795cc 52° V-Twin (2004-2006)
• VTX1800S3 1795cc 52° V-Twin (2004-2006)

HONDA VTX1800N NEO-RETRO (2004-2008):
• VTX1800N1 Neo-Retro 1795cc 52° V-Twin 106HP (2004-2008)
• VTX1800N2 Neo-Retro 1795cc 52° V-Twin (2004-2007)
• VTX1800N3 Neo-Retro 1795cc 52° V-Twin (2004-2008)

HONDA VTX1800F PERFORMANCE CRUISER (2005-2008):
• VTX1800F1 Performance Cruiser 1795cc 52° V-Twin 106HP (2005-2008)
• VTX1800F2 Performance Cruiser 1795cc 52° V-Twin (2005-2007)
• VTX1800F3 Performance Cruiser 1795cc 52° V-Twin (2005-2008)

HONDA VTX1800T TOURER (2007-2008):
• VTX1800T1 Tourer 1795cc 52° V-Twin 106HP (2007-2008)
• VTX1800T2 Tourer 1795cc 52° V-Twin (2007)
• VTX1800T3 Tourer 1795cc 52° V-Twin (2008)

ENGINE DETAILS: 1795cc Liquid-Cooled SOHC 52° V-Twin, 3 Valves Per Cylinder (6-Valve Total), 101mm x 112mm Bore x Stroke, 9.0:1 Compression, 106HP @ 5000 RPM, 120 lb-ft Torque @ 3000 RPM, PGM-FI Fuel Injection, 5-Speed Transmission, Shaft Drive
