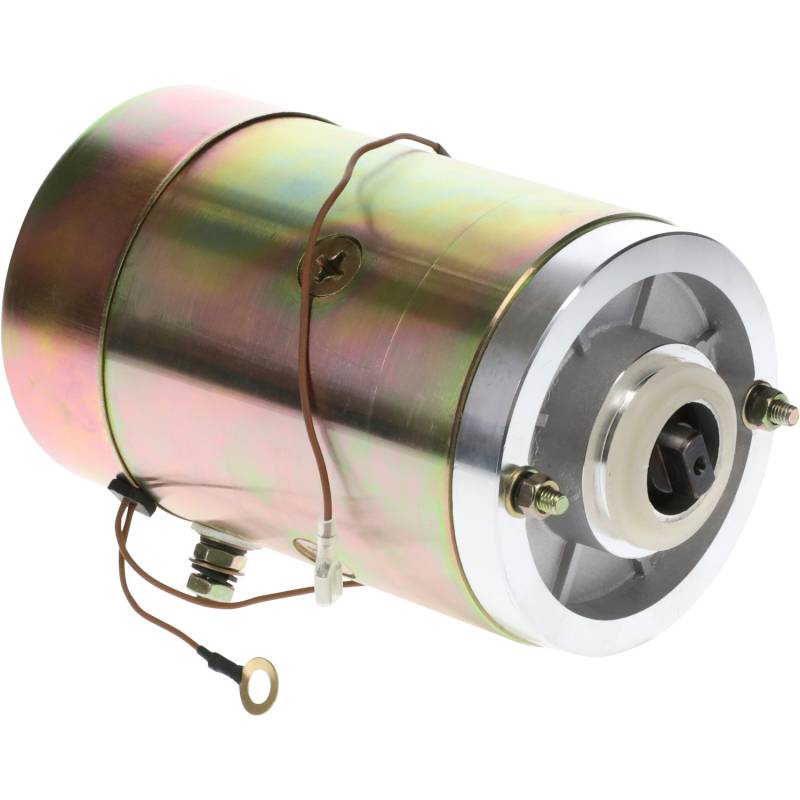

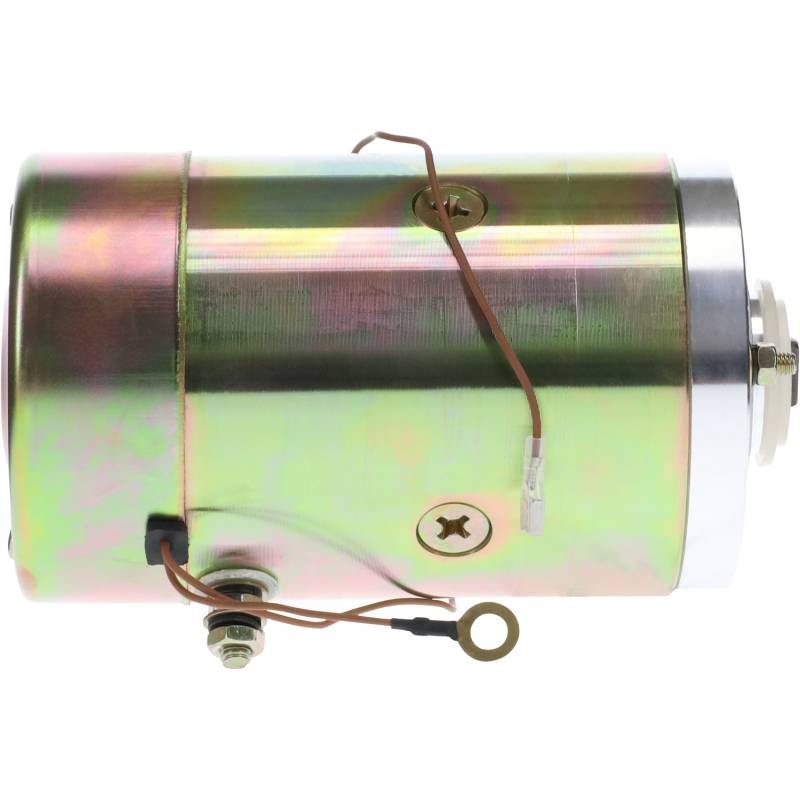

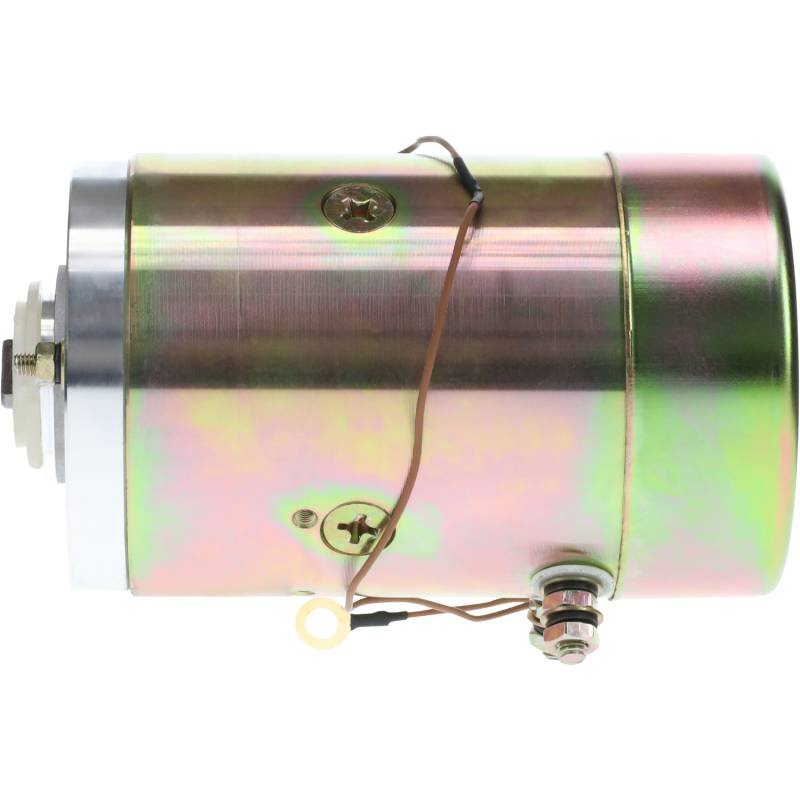

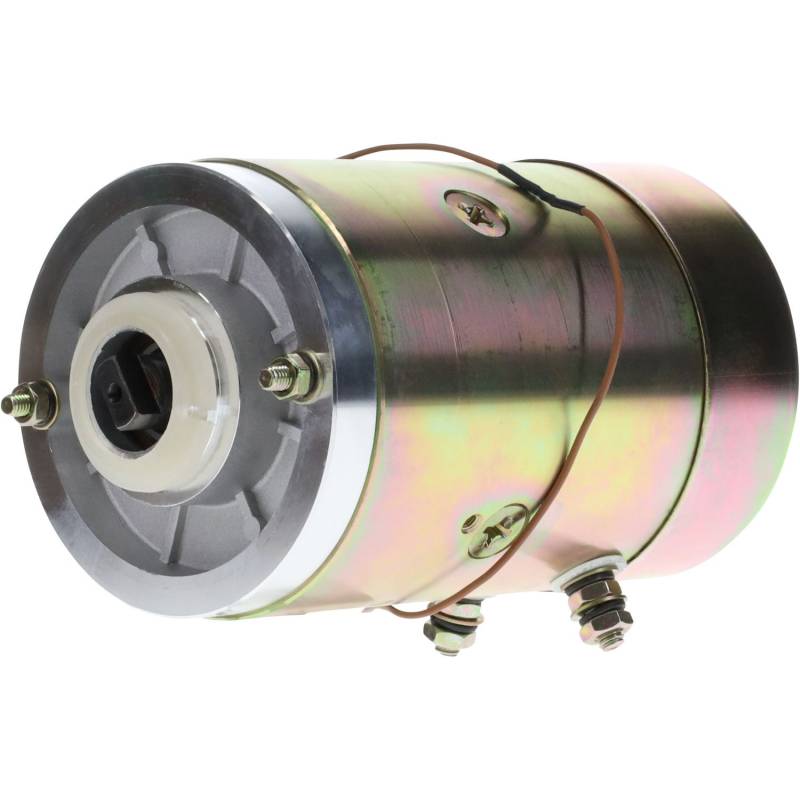

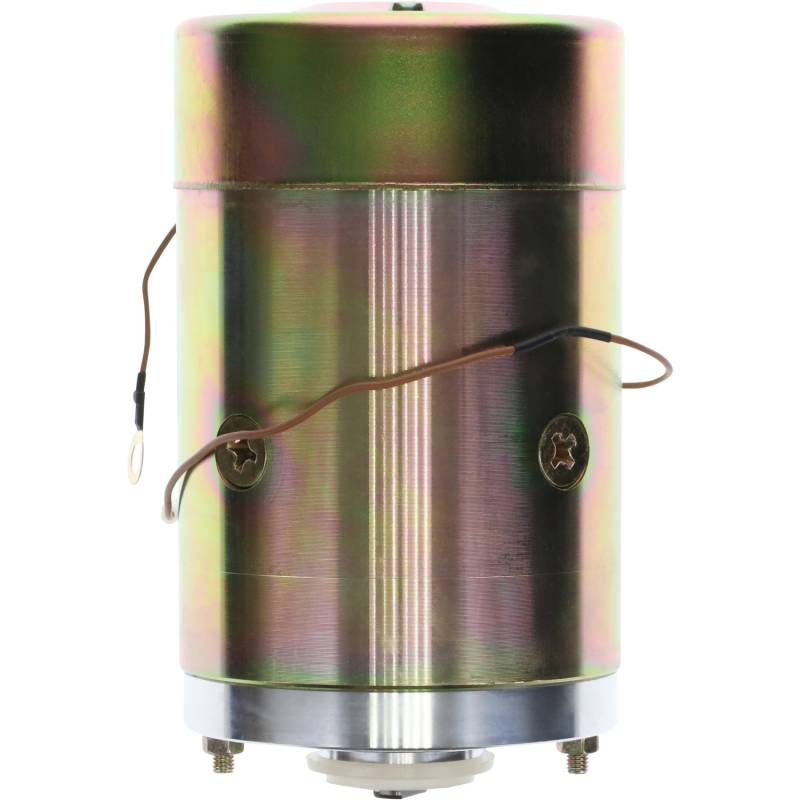

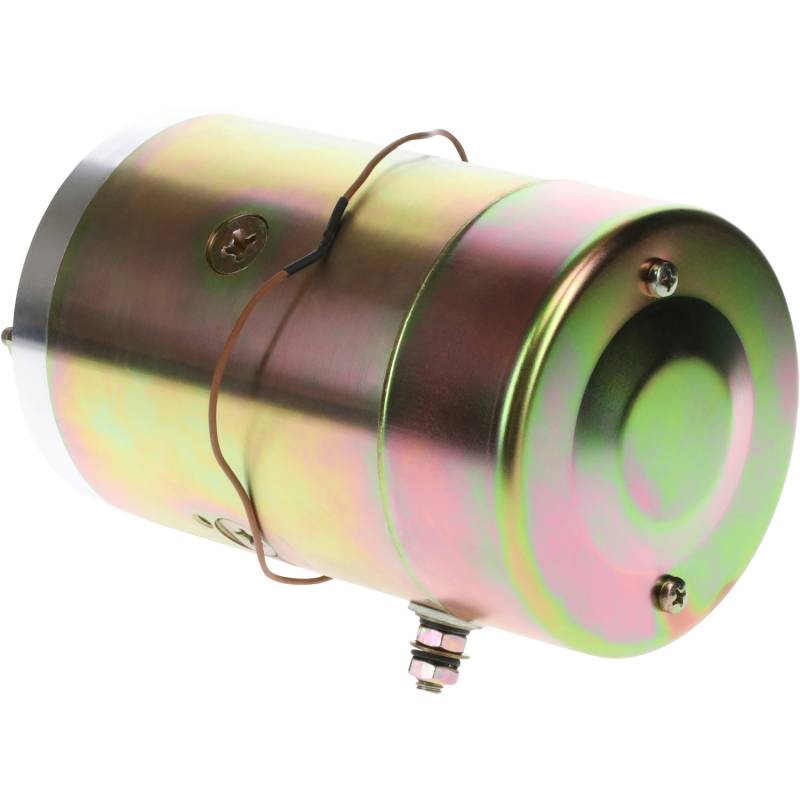

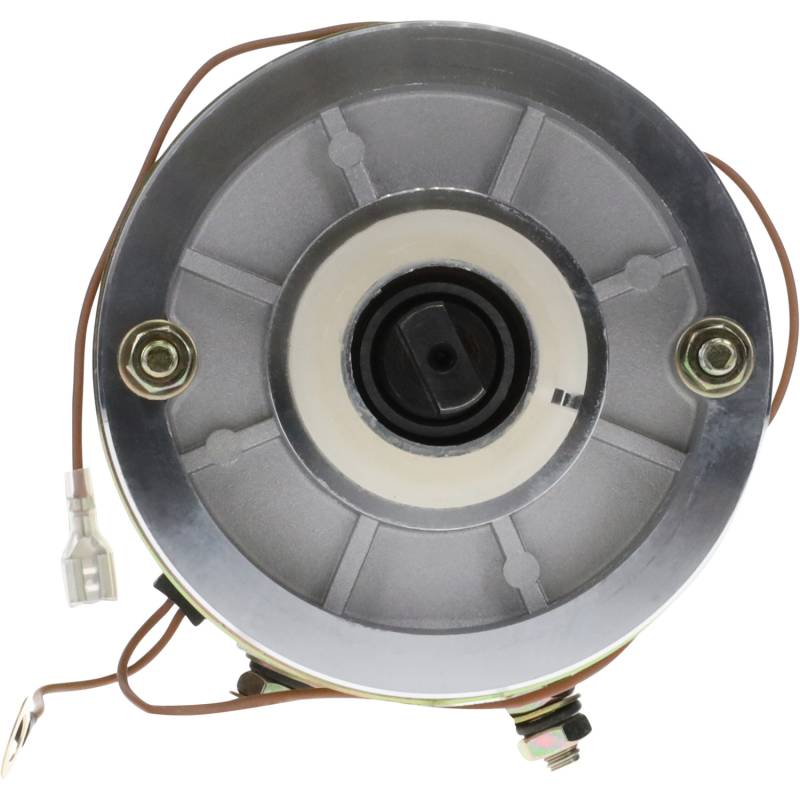

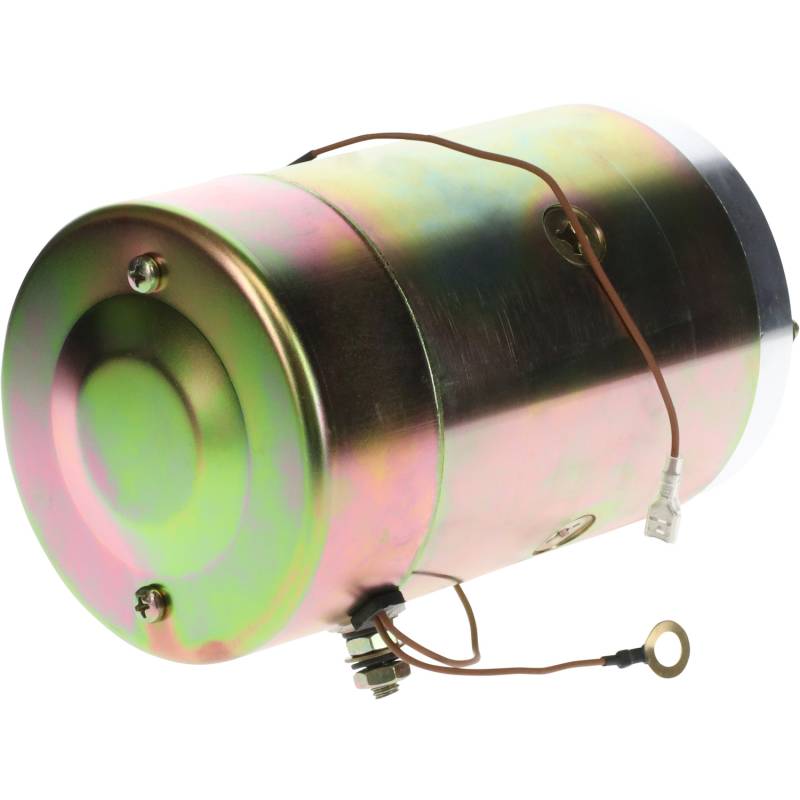

Hydraulic Pump Motor Compatible With Oil Sistem Georgi Kostov 1.5 1.2 27 Ec 2 Ec 23-Or 12V Clockwise

ISKRA LETRIKA (MAHLE) OEM PART NUMBERS:
• 11.212.864 (AMJ5238) - Superseded by 11.216.994
• 11.212.077 (AMJ5701) - Superseded by 11.216.077
• 11.212.684 (AMJ5189)
• 11.212.611 (AMJ5177) - Superseded
• 11.212.087 (AMJ5651) - Superseded
• 11.212.068 (AMJ5634) - Superseded
• 11.216.077 (AMJ5701) - Current with thermal protection
• 11.216.994 (AMJ5882) - Current without thermal protection
• 11.216.996 (AMJ5884) - Current with thermal protection
• IM0028
• IM0117

MAHLE PART NUMBERS:
• MM59
• MM61
• MM379 - Superseded by MM59

WESTERN MOTORS PART NUMBERS:
• W-7864
• W-7864A
• W7864
• W7864A

OIL SISTEM PART NUMBERS:
• C162010000
• C162086000
• C162090000
• 98-529.50-00
• 98-5295.50-0000002
• 98-529500000002
• 9852950-0000014
• 98-52950000014
• 98-52950

DAUTEL PART NUMBERS:
• 84522

EFEL PART NUMBERS:
• 36531
• 36611

MBB PALFINGER PART NUMBERS:
• 1404310
• 1410332

SPECIFICATIONS:
• Type: Hydraulic Pump Motor
• Design: DC Motor - Iskra Letrika Type
• Voltage: 12V DC
• Amperage: 230 Amps
• Power: 1.6kW / 2.14HP
• RPM: 2750
• Rotation: Clockwise (CW)
• Shaft Outside Diameter: 18mm / 0.709 in
• Shaft: 8mm Slotted Tang
• Shaft Tang Thickness: 8mm / 0.31 in
• Shaft Tang Width: 18mm / 0.70 in
• Shaft Tang Depth: 9.65mm / 0.38 in
• Terminal 1 Size: M8-1.25
• Terminal 2 Size: M8-1.25
• Outside Diameter: 114.5mm / 4.508 in
• Overall Length: 191mm / 7.52 in
• Field Housing OD: 113mm / 4.449 in
• Insulated Ground
• Double Ball Bearing
• IP54 Protection Rating
• S2: 3 min Duty Cycle
• Current Type: DC

FITS HYDRAULIC POWER UNITS:
• Georgi Kostov Oil Sistem - Models 1.5, 1.2, 27, EC 2, EC 1.2, EC 23-OR
• Dautel Tail Lift Systems
• MBB Palfinger Tail Lift Systems
• Anteo Tail Lift Systems
• Behrens-Eurolift Tail Lift Systems
• Broc Oil Sistem Hydraulic Power Units
• Smoes Hydraulic Systems
