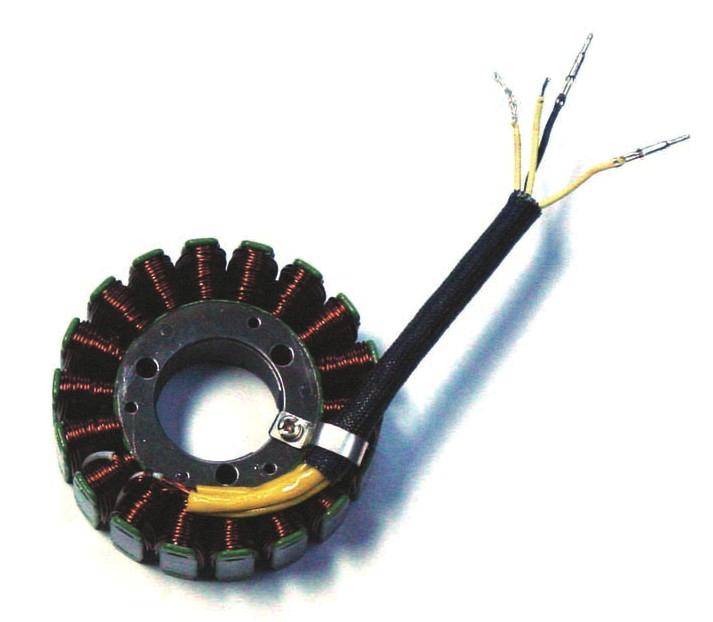

Stator Magneto Compatible With 1995-2003 Sea-Doo Gsx Gtx Spx Xp 800 951 Rx Lrv Sp 720 Challenger

004-200*1
Replaces Part Numbers

290886588 / 420886588
Cross-Reference: 14-104 (SBT)
Cross-Reference: RM01340 (RM Stator)


Specifications

Type: 18-Pole Magneto Stator, 6-Wire
Resistance: 0.9 Ohms (Yellow-to-Yellow)
Output: 45-70 VAC @ 3500 RPM
Engine: Rotax 787/947 2-Stroke Twin RAVE
Not for DI (Direct Injection) models


Applications

SP 720, GSX/GTX/SPX/XP 800, GSX/GTX/LRV/RX/RX X/XP/XP LTD 951
Challenger 800/1800, Speedster 800, Sportster LE 951 (1995-2003)


Sea-Doo 800cc 951cc Stator for PWC and Jet Boat
This stator replaces Sea-Doo OEM 290886588 and 420886588. The 18-pole magneto stator generates the electrical power needed to charge the battery and run the ignition system on the Rotax 787 and 947 2-stroke twin-cylinder RAVE engines. When the stator fails, the engine loses charging capability and ignition power, causing no-start or dying at idle. This stator fits Sea-Doo 800cc and 951cc PWC and jet boat models from 1995 through 2003. Not compatible with DI (Direct Injection) models. Direct plug-in replacement with factory 6-pin connector and mounting hardware.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $282.47
Sale: $161.41
Save: 43%
Save: $121.06
Qty:
Free Shipping!

Description

Applications

Sea-Doo 800cc PWC (1995-1999):
GSX 800, GTX 800, SPX 800, XP 800

Sea-Doo 951cc PWC (1998-2002):
GSX 951, GTX 951, LRV 951, RX 951
RX X 951, XP 951, XP LTD 951

Sea-Doo Jet Boat (1996-2003):
Challenger 800/1800, Speedster 800, Sportster LE

Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W1.0000” x H1.0000” x L1.0000”
  • Free Shipping!
