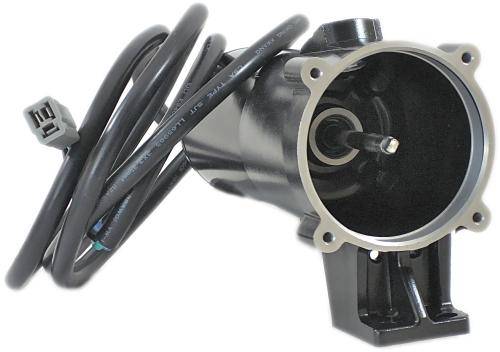

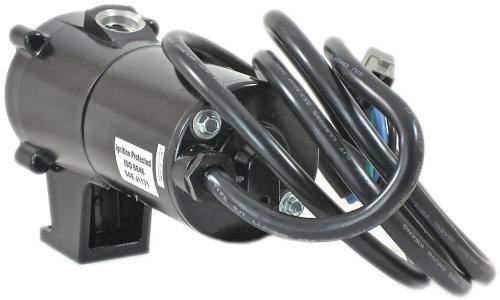

Tilt Trim Motor Compatible With Force Omc Evinrude Johnson Chrysler 75Hp 90Hp 115Hp 120Hp 130Hp

OEM PART NUMBERS:
• Chrysler Marine: 44-9541-1 / 4495411 / 45-5541 / 455541
• Force: F17556 / F17563 / F17564 / F17568
• Force: FK654541 / F654541
• OMC: 172543 / 0172543 / 382715 / 0382715
• ESZ4009 / ESZ4012 / ESZ4014 / ETX4001
• 40-567 / 40567
• Quicksilver: 8M6007521



AFTERMARKET CROSS REFERENCE:
• API Marine: PT112N
• Arco Marine: 6216
• 18-6762
SPECIFICATIONS:
• Type: Tilt Trim Motor with Reservoir
• Design:
• Voltage: 12V
• Rotation: Reversible
• Connection: 3-Wire Configuration
• Shaft OD: 7.4mm / 0.291in
• Shaft: 3.5mm Drive Tang
• Field Housing OD: 77mm / 3.031in
• Overall Length: 220mm / 8.661in
• Reservoir Base Diameter: 3.5in
• O-Ring Included
• Weight: 8 lbs
• Condition: New

APPLICATIONS SUMMARY:
• Chrysler Marine 75-140HP (1977-1984)
• Evinrude/Johnson 65-135HP (1972-1977)
• Force 75-135HP / OMC 75-135HP / U.S. Marine 75-135HP

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
