OEM PART NUMBERS:
• Delco: 8600002 / D8600002
• Delco: 8400013 / D8400013
• Delco: 8400111 / D8400111
• Indmar: 575014
• PCM / Pleasurecraft: RA097009
• Arco Marine: 20827
• Arco Marine: 20828
SPECIFICATIONS:

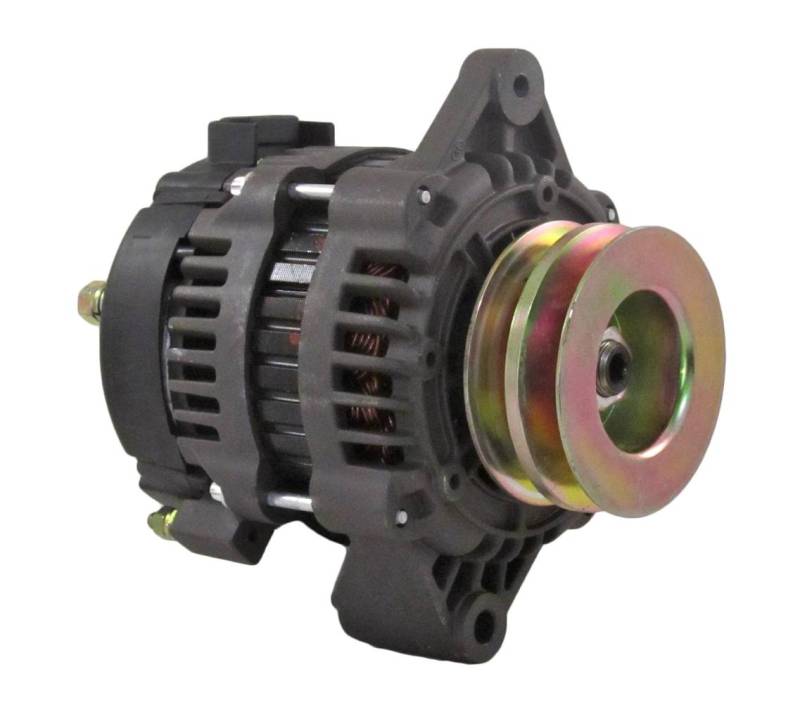

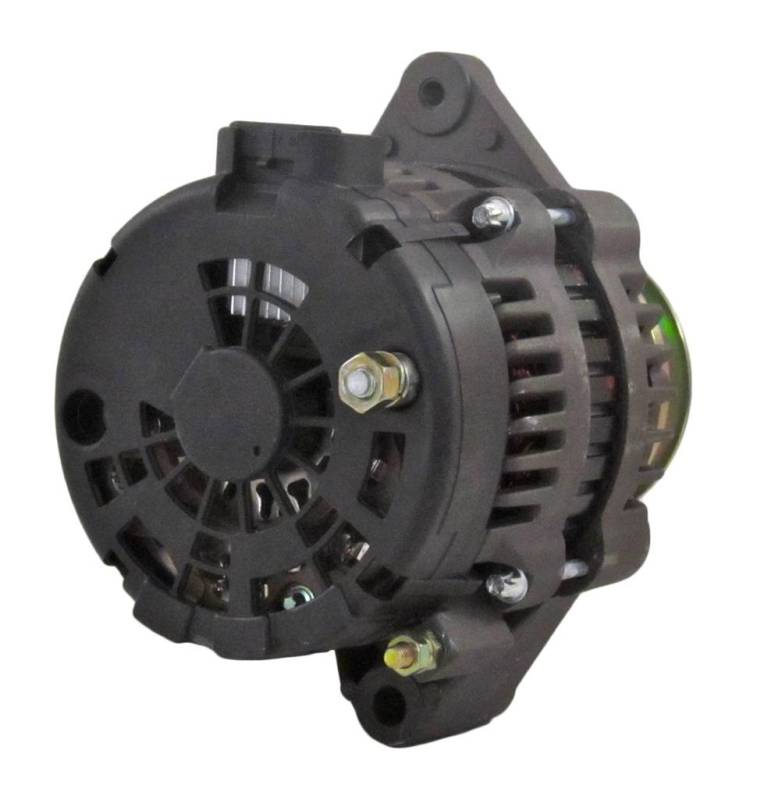

• Type: Marine Alternator
• Family Style: Delco 11SI Series
• Voltage: 12 Volts
• Amperage: 95 Amps
• Rotation: CW (Clockwise)
• Regulator Clock: 12:30
• Polarity: Negative Ground
• Fan: Internal
• Regulator: Internal (IR)
• Pulley: 6-Groove Serpentine, 62-63mm OD (S6 class)
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.1mm Unthreaded
• Mounting Foot: 2 inches
• B+ Terminal: M8-1.25
• P, L, IG, S Terminals: Spade type
• Color: Black Painted
• Certification: SAE J1171 Marine Ignition Protection
• Weight: 12.2 lbs / 5.55 kg
• Condition: New
APPLICATIONS:
• Indmar Marine Inboards: 5.7L Vortec PFI, MPFI, MCX, Monsoon, Hammerhead, 350 H.O., LCR, LS2, LY6, 6.0L PFI, 6.2L 383 MPI, 8.1L Vortec (2003-2013)
• PCM / Pleasurecraft Marine Inboards: 5.0L / 5.7L / 6.0L Series (2003-2013)
• Inboard Boat Brands: MasterCraft, Malibu, Supra, Centurion, Tige, Moomba (2003-2013)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
