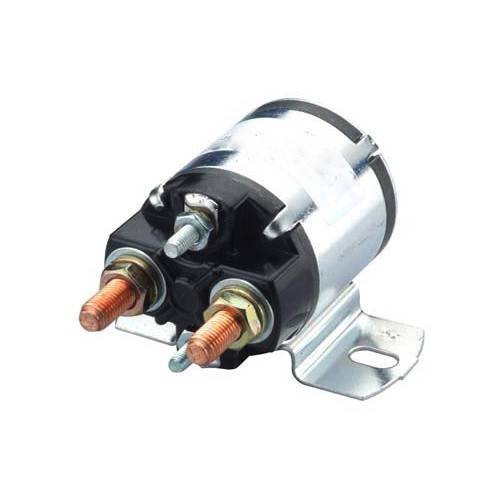

New White Rodgers 12V 100A Continuous Duty Solenoid Contactor Compatible With Golf Cart Winch

SKU: 124-902

OEM PART NUMBERS:
• White Rodgers: 124-902 / 124902 / 124-902S1 / 124902S1
• White Rodgers: 124-105111 / 124105111 / 124-105111-3 / 1241051113 / 124-105111S1 / 124105111S1
• White Rodgers: 120-105111-5 / 1201051115
• Prestolite: 15-526 / 15526 / SBC4201AD
• Johnson Electric: 5120640 / 512-0640 / SO51206 / 124-105111-5 / 1241051115 / 6C020
• Emerson / Stancor: 124-902
•: 15-526 / 124-105111S1 / 240-22238
• J&N: 240-22238
• Item Reference: 124-902

SPECIFICATIONS:
• Product Type: DC Power Contactor / Solenoid (Continuous Duty)
• Series: White Rodgers 124 Series
• OEM(s): White Rodgers / Emerson
• Voltage: 12 Volts DC
• Continuous Amperage: 100 Amps
• Surge / Inrush Amperage: 400 Amps
• Operating Range: 12-24 VDC
• Circuitry: SPST-NO (Single Pole Normally Open) / SPNO
• Duty Cycle: Continuous Duty
• Poles: 1 Pole
• Contact Configuration: Normally Open (N.O.)
• Contact Material: Silver Alloy
• Case Material: Metal
• Number of Terminals: 4
• Terminal Type: Insulated / Isolated Coil
• Contact Terminals: (2) 5/16"-24 UNF-2A Stud Contact Terminals
• Coil Terminals: (2) #10-32 UNF-2A Threaded Coil Terminals
• Mounting: Flat 180 (F180) Standard Bracket
• Mounting Orientation: Vertical Plane, Coil Terminals Up
• Coil Resistance: ~13.2 ohm
• Operating Temperature: -40°F to +149°F (-40°C to +65°C)
• Dimensions: 3.56" × 3.13" × 2.19"
• Weight: ~16 oz (1 lb)
• Contact Terminal Torque: 60 in-lbs Maximum
• Coil Terminal Torque: 12-18 in-lbs
• Cover: Dust-Resistant
• Hardware Included: Yes (Terminal Hardware)
• Condition: New Aftermarket
• Country of Origin: Various

VEHICLE / EQUIPMENT APPLICATIONS SUMMARY:
• Golf Carts / Electric Vehicles (EZ-Go, Club Car, Yamaha)
• Forklifts (Hyster, Clark, Toyota, Yale — Electric Forklift Contactor)
• Floor Scrubbers / Sweepers (Tennant, Nobles, Advance, Nilfisk)
• Emergency Vehicles (Ambulance, Fire Truck, Police Accessory)
• Handicap / Wheelchair Lifts (Braun, Ricon, Maxon)
• Winches (Warn, Ramsey, Superwinch, Badland — 12V DC)
• Marine (Battery Isolators, Windlass, Bow Thrusters)
• Lawn & Garden (Riding Mowers, Zero-Turn, Electric Start)
• Diesel Engines (Glow Plug Relay, Pre-Heat Contactors)
• RV / Motorhomes (Battery Disconnect / Isolator)
• Lift Gates / Liftgates (Maxon, Waltco, Tommy Gate Hydraulic)
• Case / Case IH Equipment — Prestolite OE Applications
• Industrial Mobile DC Equipment 100A Continuous Duty

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $123.94

Sale: $70.82

Save: 43%

Save: $53.12

Description
Details
Shipping
Reviews

Description

PRIMARY APPLICATIONS — WHITE RODGERS 12V 100A CONTINUOUS DUTY POWER CONTACTOR:
• Emergency Vehicle Accessories (Ambulance, Fire Truck, Police Vehicle Accessory Switching)
• Golf Cart Controls (Battery Disconnect, Motor Switching, 12V Electric Golf Car Systems)
• Bus Accessories (Passenger Bus Auxiliary Power, School Bus Accessory Switching)
• Floor Sweepers / Floor Scrubbers (Industrial/Commercial Janitorial 12V DC Equipment)
• Handicap Lifts / Wheelchair Lifts (Van Liftgate Actuators, Mobility Lift Systems)
• Utility Winches (12V DC Winch Motor Control, Truck/ATV/UTV Winches)
• Marine Applications (Boat Battery Isolator, Marine DC Power Switching, Trolling Motor)
• Forklift Controls (Electric Forklift Motor Contactors, Battery Isolator Switching)
• Lawn & Garden Equipment (Riding Mower, Zero-Turn, Electric Start Systems)
• Diesel Engine Accessories (Glow Plug Relay, Auxiliary Power, Pre-Heat Contactor)
• RV / Recreational Vehicle Solenoid (Battery Disconnect, House Battery Isolator)
• Industrial / Mobile DC Equipment (OEM Equipment Power Switching)

MANUFACTURER APPLICATIONS (CASE / PRESTOLITE / WHITE):
• Case Equipment — Various Models Using White Rodgers 124 Series Solenoid
• Case IH Agricultural Equipment — 12V DC Auxiliary Circuit Switching
• Case Construction Equipment — Power Contactor / Solenoid Replacement
• Prestolite Electrical Systems — Original Equipment 15-526 / SBC4201AD
• Prestolite Industrial Power Systems — OEM 100A Contactor Replacement
• White Rodgers / Emerson OEM 124-902 / 124-105111 Series
• White Rodgers 124-105111-5 Original Equipment Applications
• Johnson Electric OEM 5120640 / SO51206 / 6C020 Applications

COMPATIBLE EQUIPMENT TYPES:
• Electric Golf Cars (EZ-Go, Club Car, Yamaha — 12V Accessory Switching)
• Electric Forklifts (Hyster, Clark, Toyota, Yale — 12V Auxiliary Contactor)
• Industrial Floor Scrubbers (Tennant, Nobles, Advance, Nilfisk 12V DC)
• Emergency Vehicles / Ambulances (Auxiliary Power, Lighting, Equipment Bays)
• Handicap Van Lifts (Braun, Ricon, Maxon Wheelchair Lift Solenoid)
• 12V Winches (Warn, Ramsey, Superwinch, Badland — Solenoid Contactor)
• Marine Equipment (Battery Isolators, Windlass Controls, Bow Thrusters)
• Tow Trucks / Wreckers (12V DC Accessory Circuits, Hydraulic Pump Power)
• Diesel Engine Pre-Heat Systems / Glow Plug Controllers
• Lift Gates / Liftgates (Maxon, Waltco, Tommy Gate Hydraulic Pump Contactor)
• RV / Motorhome House Battery Isolator Systems
• Industrial DC Motor Control Applications (100A Continuous)

SPECIFICATIONS & FEATURES:
• Voltage: 12V DC Coil / 12-24 VDC Operating Range
• Continuous Amperage: 100 Amps
• Inrush / Surge Amperage: 400 Amps (first 1/2 second of contact closure)
• Configuration: SPST Single Pole Normally Open (SPST-NO / SPNO)
• Duty Cycle: Continuous Duty
• Contact Material: Silver Alloy
• Case Material: Metal (Dust-Resistant Cover)
• Terminals: 4 (Isolated / Insulated)
• Contact Terminals: (2) 5/16"-24 UNF-2A Studs
• Coil Terminals: (2) #10-32 UNF-2A Threaded Studs
• Mounting: Flat 180 (F180) Standard Bracket — Vertical Plane, Coil Terminals Up
• Coil Resistance: ~13.2 ohm
• Operating Temperature: -40°F to +149°F (-40°C to +65°C)
• Dimensions: 3.56" × 3.13" × 2.19" / ~16 oz weight
• Torque: Contact 60 in-lbs max / Coil 12-18 in-lbs
• Includes: Terminal Hardware
• Coil Type: Isolated / Insulated
• CAUTION: Always use a back-up wrench to hold bottom nut when tightening
