FORD PART NUMBERS: • F5UU-10300-BA, F5UU10300BA
• F6UU-10300-EA, F6UU10300EA
• F6UU-10300-EB, F6UU10300EB
• F3UU-10300-AE, F3UU10300AE
• F3UU-10300-AF, F3UU10300AF
• F37U-10300-AA, F37U10300AA
• F2PU-10346-AF, F2PU10346AF
• F3UZ-10346-A, F3UZ10346A
FORD SERVICE EXCHANGE NUMBERS: • F3UZ-10346-ARM, F3UZ10346ARM
• F3UZ-10346-ARM1, F3UZ10346ARM1
• F3UZ-10346-ARM2, F3UZ10346ARM2
FORD ENGINEERING (TAG) NUMBERS: • F5UU-BA
• F6UU-EA
• F6UU-EB
• F37U-AA
• F3UU-AE
MOTORCRAFT PART NUMBERS: • GL-331, GL331
• GL-504, GL504
• GL-504-RM, GL504RM
• GL-8720-RM, GL8720RM
ACDELCO PART NUMBERS: • 334-2253, 3342253
• 334-2254, 3342254
OTHER PART NUMBERS: • Bosch AL7565X
• Mazda ZZM2-18-300, ZZM218300
• Visteon tag codes AK, AE

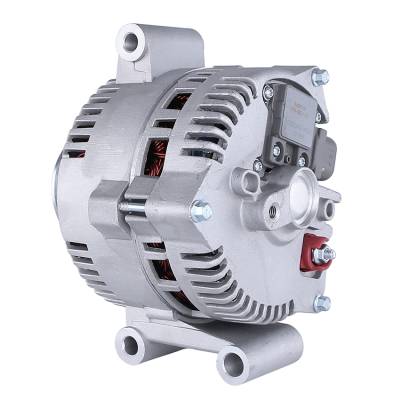

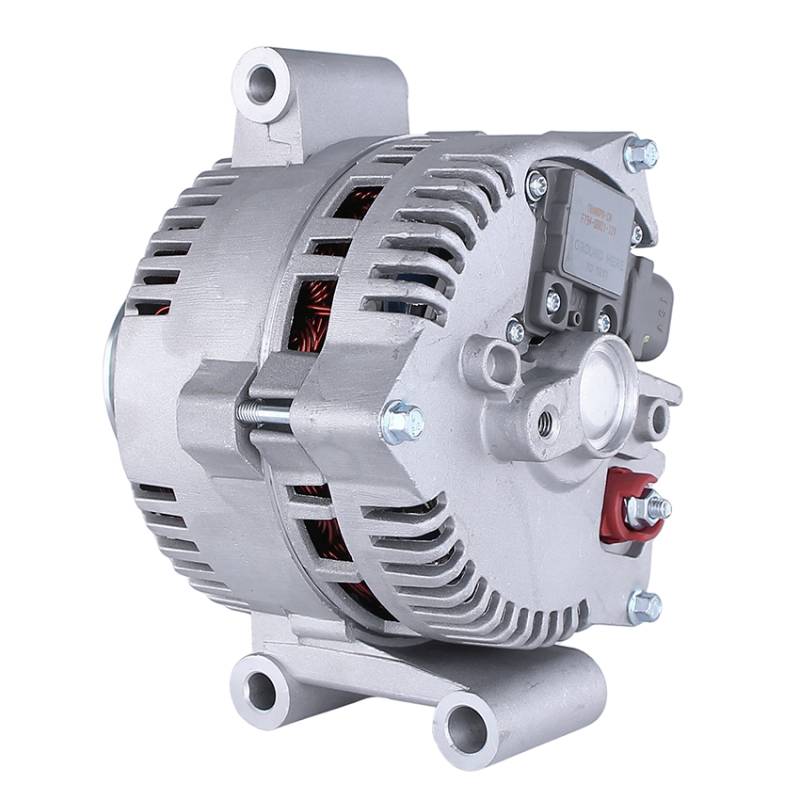

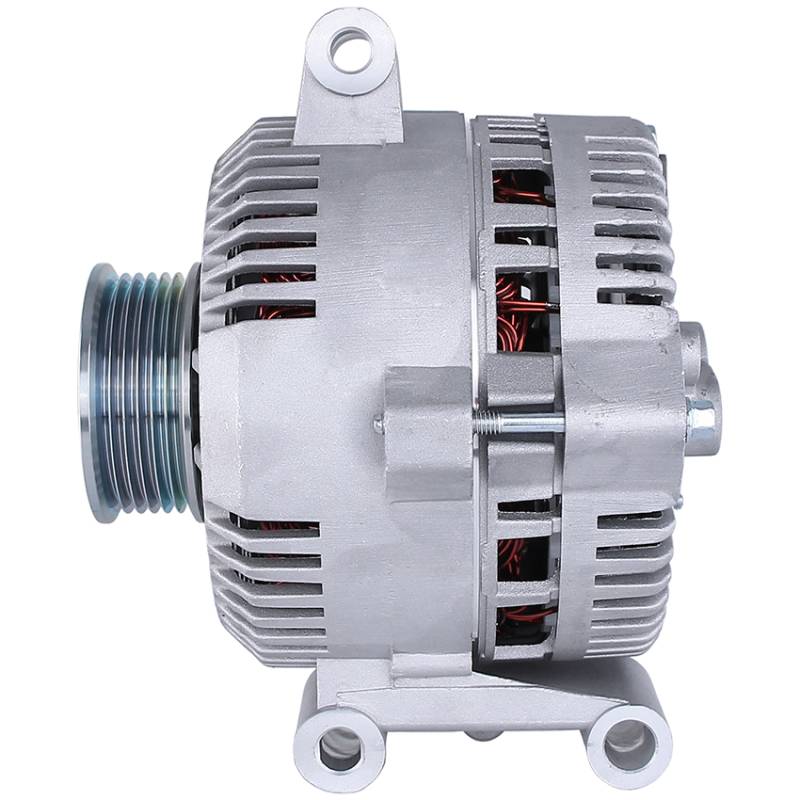

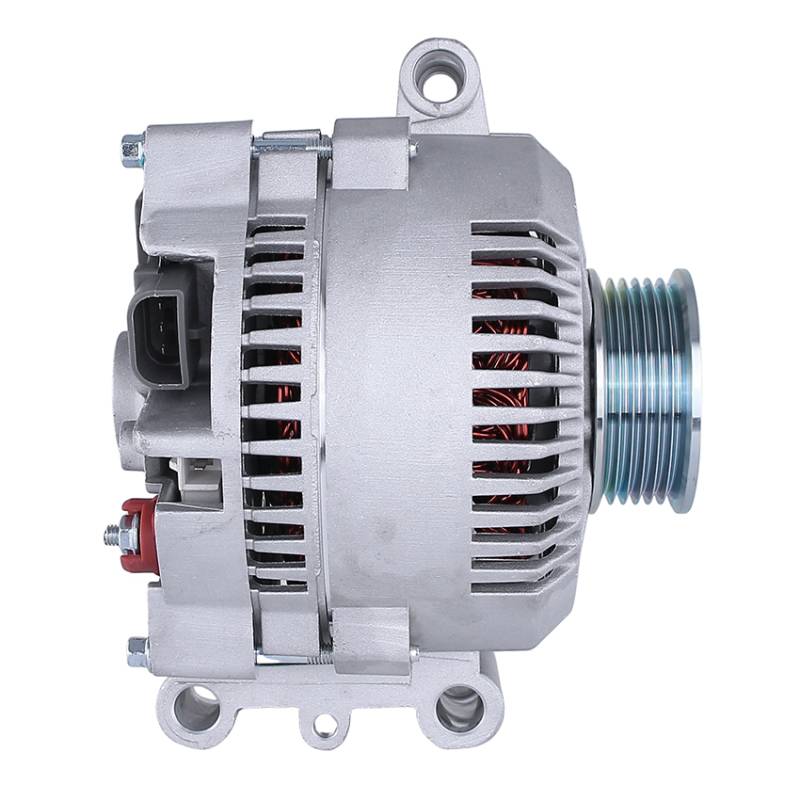

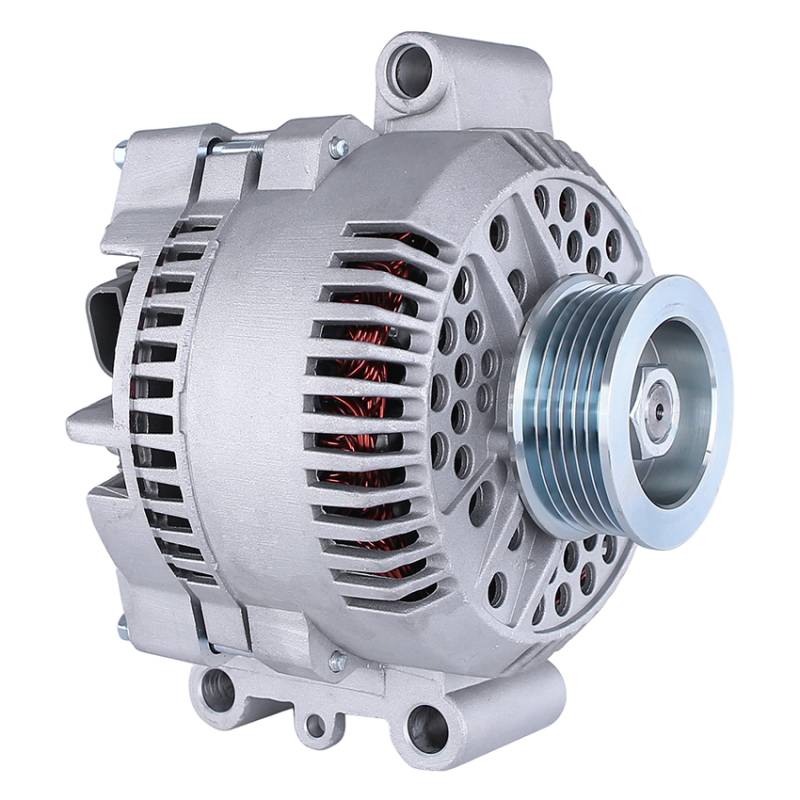

SPECIFICATIONS: • Type: 3G type alternator, internal fan, internal regulator
• Voltage: 12 Volt, negative ground
• Output: 130 Amp
• Rotation: clockwise (CW) viewed from the pulley

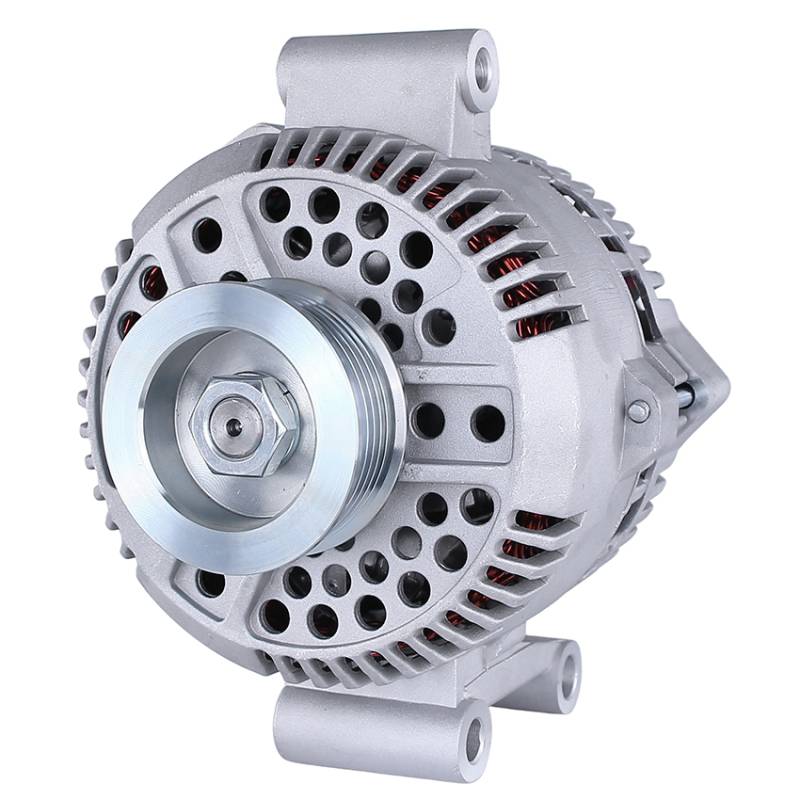

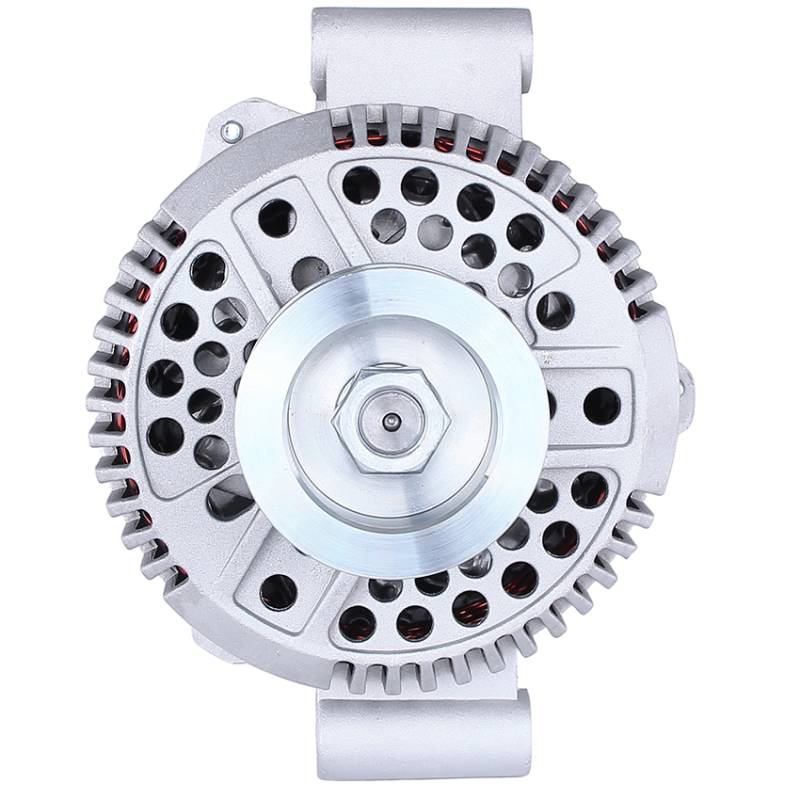

• Pulley: 6 groove serpentine, about 2.52 in / 64 mm OD

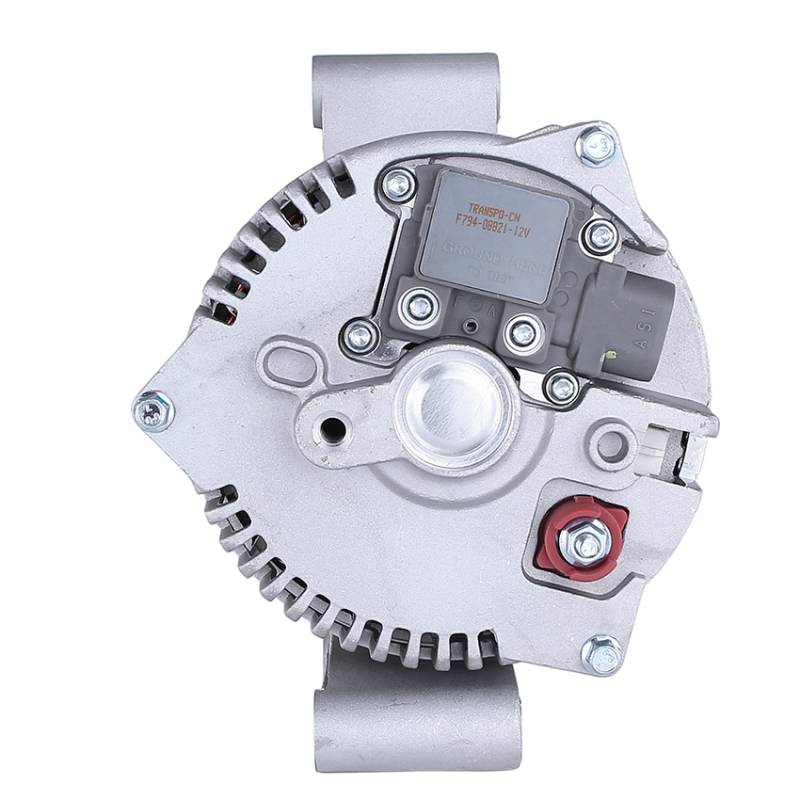

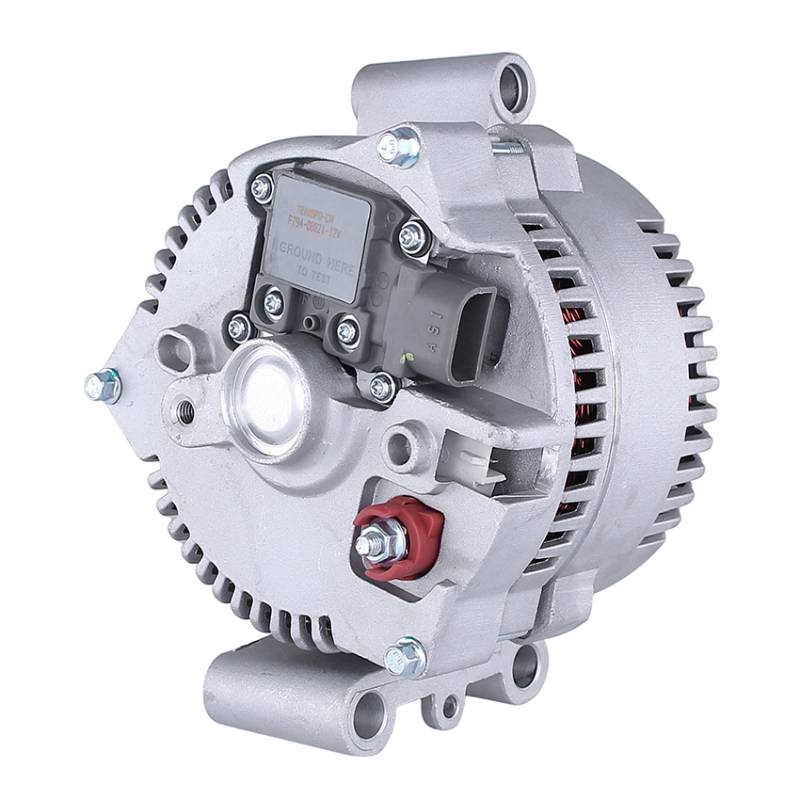

• Regulator / plug clock: 3:00, plug code A S I
• Output stud: M6-1.0
• Mounting: 3 ears, 10 mm unthreaded, 13 mm unthreaded, 13 mm slotted, plus one M8-1.25 hole in the rear housing
• Weight: about 15.64 lb / 7.11 kg
• Condition: New aftermarket, not a Ford or Motorcraft branded unit
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
