OEM PART NUMBERS:
• Trombetta: 684-1241-212 / 6841241212
• Trombetta: 684-1241-212-02 / 684124121202
• Trombetta: 684-1241-212-06 / 684124121206
• Ford: F7TZ-12B533-CA / F7TZ12B533CA
• Ford: F81Z-12B533-AC / F81Z12B533AC
• Ford Superseded: F7TZ-12B533-AA / F7TZ-12B533-AB / F81Z-12B533-AA
• Motorcraft: DY-861 / DY861
• Navistar/International: 1807230C2
• Navistar/International: 1826634C94 (supersedes 1826634C93)
• Navistar/International: 1831646C1
SPECIFICATIONS:

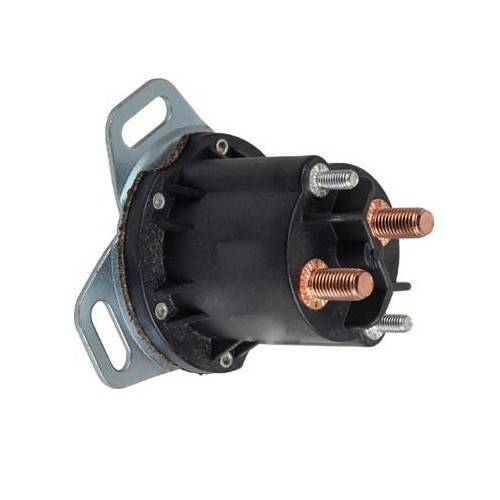

• Type: DC Contactor Solenoid (PowerSeal Series)
• Voltage: 12V DC
• Continuous Amperage: 150A
• Surge/Inrush Amperage: 800A
• Duty Cycle: Intermittent (25% Sustained, 6 Min Max On-Time)
• Number of Terminals: 4 - (2) 5/16-24 High Current Studs, (2) 10-32 Coil Studs
• Coil Configuration: Non-Grounded (Isolated)
• Contact Material: Copper
• Case Material: Plastic
• Mounting: Flat 90-Degree Bracket (F90)
• Environmental Rating: IP67 Sealed (Submersible to 1m for 30 min)
• Weight: 0.84 lbs / 0.38 kg
• Condition: New
FORD / INTERNATIONAL / HYDRAULIC / RV APPLICATIONS:
• 1994-2003 Ford F-250/F-350/F-450/F-550 Super Duty 7.3L Powerstroke Glow Plug Relay
• 2000-2003 Ford Excursion 7.3L Powerstroke Diesel
• 1995-2003 Ford E-350/E-450/E-550 Econoline 7.3L Diesel
• 2000-2003 Ford F-650/F-750 7.3L Diesel
• 1994-2004 International 3000/3400/3600/3700/3800 Bus Chassis T444E 7.3L
• 1994-2003 International 4700/4900 Cab Chassis T444E 7.3L
• Hydraulic Pump Motors, Dump Trailers, Liftgates, Snow Plows
• RV Battery Isolator, Grid Heater, Lawn & Garden, Golf Carts, Forklifts
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
