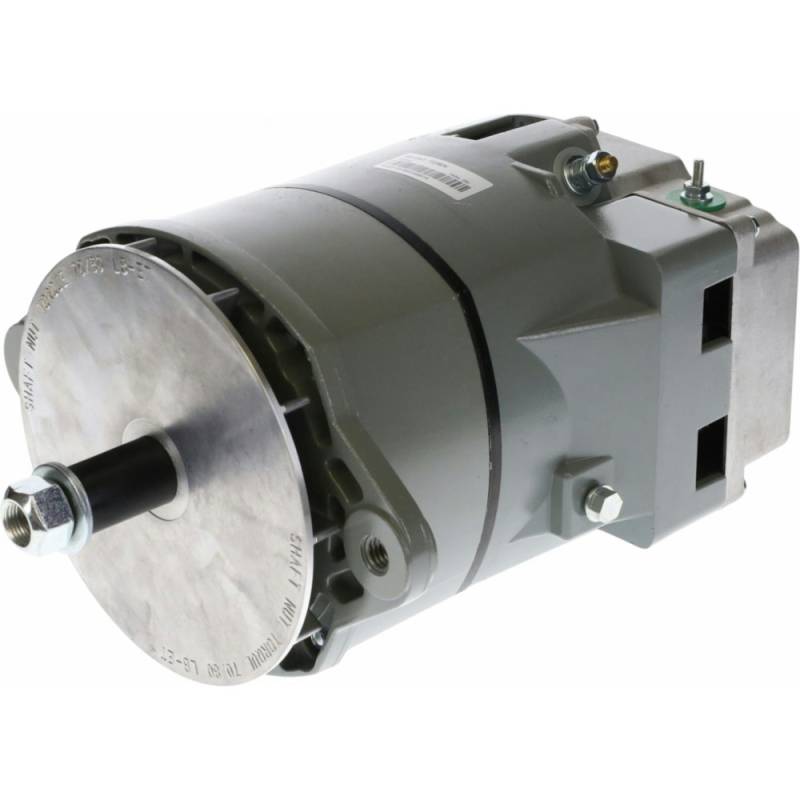

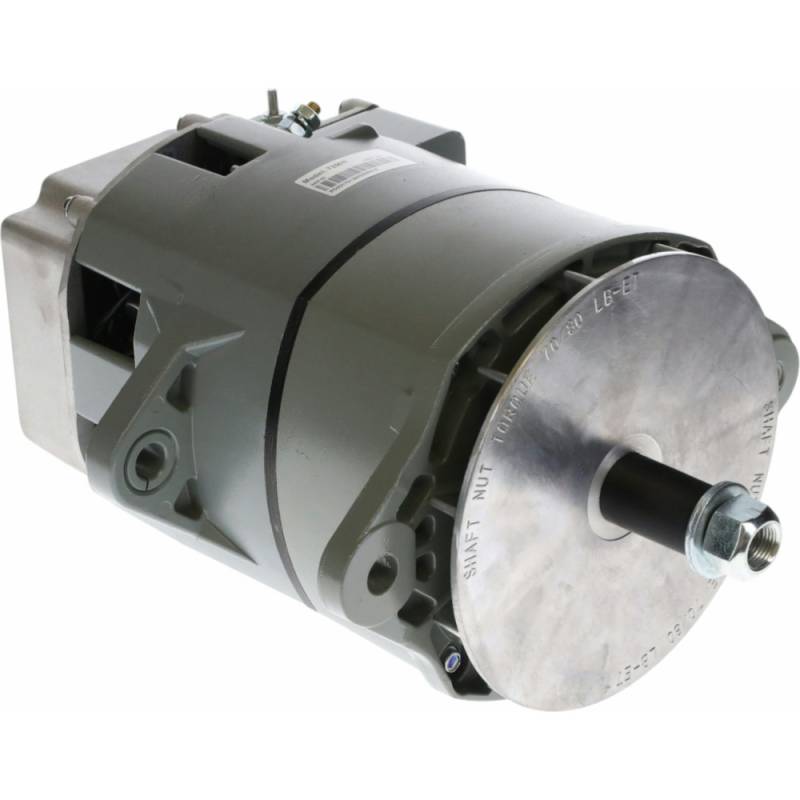

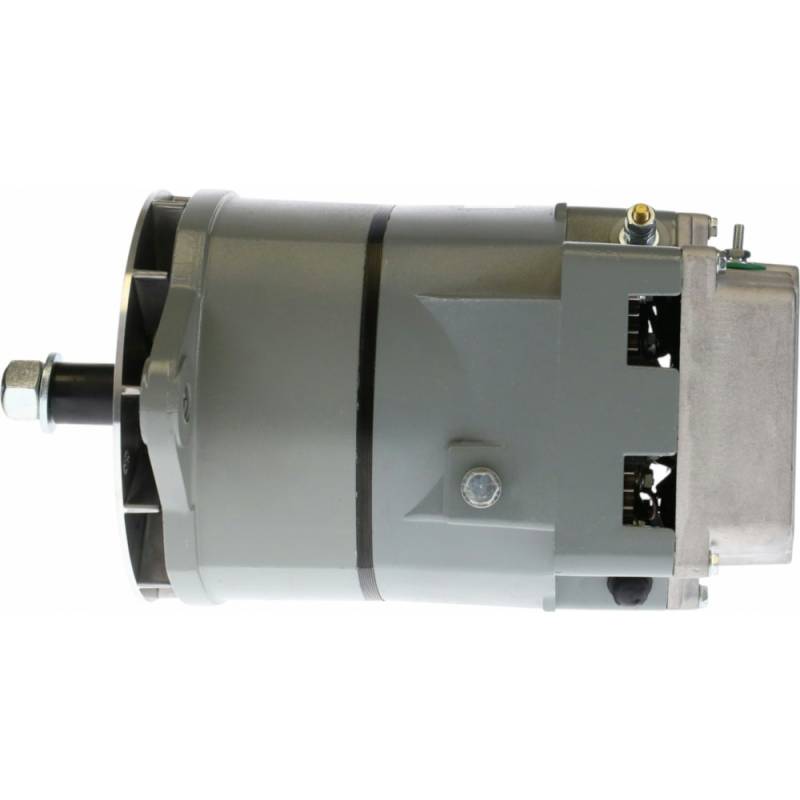

Alternator Compatible With Peterbilt By Engine Dd 6V-92 8V-71 8V-92 E4ht-Ca E4htca 5289656R91

7256L2
FORD ENGINEERING NUMBERS:
• E4HT-CA, E4HTCA

INTERNATIONAL PART NUMBERS:
• 5289656R91

SAME 30SI TYPE 12V 90A UNIT, ALSO REPLACES:
• Ford E4HT-10300-CA, E4HT10300CA
• Delco 1117067
• Delco 1117483
• Cummins 3603854RX, 3603854
• Motorcraft GL-190, GL190

SPECIFICATIONS:
• Type: 30SI type heavy duty alternator, new aftermarket
• Voltage: 12 Volt, negative ground
• Output: 90 Amps
• Fan: external
• Regulator: internal
• Mounting: J180 hinge mount
• Terminals: 1/4 in B+ output stud, pin style R terminal, no remote sense
• Weight: about 32 lb
• Condition: new aftermarket, not a Delco Remy branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,181.36
Sale: $675.06
Save: 43%
Save: $506.30
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET 12V 90A 30SI TYPE ALTERNATOR:
• 12 volt, 90 amp, 30SI type, external fan, internal regulator, negative ground
• J180 hinge mount, 1/4 in B+ stud, pin R terminal, about 32 lb
• 105A, 24V, 32V, positive ground and #10 stud R terminal 30SI builds are different units

PETERBILT, ALL MODELS BY ENGINE:
• Peterbilt all models with the Cummins K 1977-1988
• Peterbilt all models with the Cummins NTC engines 1979-1990
• Peterbilt all models with the Cummins V-903 1975-1981
• Peterbilt all models with the Detroit 6V-92 1986-1990
• Peterbilt all models with the Detroit 8V-71 1986
• Peterbilt all models with the Detroit 8V-92 1986-1990

STEIGER AND VERSATILE TRACTORS:
• Steiger Tiger 450 tractor with the Caterpillar 3408 1982-1985
• Steiger Tiger 470 tractor with the Cummins KTA1150 1982-1985
• Steiger Tiger III tractor with the Cummins KTA1150 1978-1981
• Versatile 1150 tractor with the Cummins KTA-1150 1981-1985
• Versatile 1156 tractor with the Cummins KTA-1150 1986-1987

VOLVO TRUCKS:
• Volvo heavy duty trucks, all models by engine, various engines 1983-1988
