OEM PART NUMBERS:
• Suzuki: 31100-38A00 / 3110038A00
• Suzuki: 31100-38A01-H17 / 3110038A01H17
• Suzuki: 31100-38A10 / 3110038A10
• Suzuki: 31100-38A10-H17 / 3110038A10H17
• Suzuki: 31100-45C00 / 3110045C00
• Suzuki: 31100-45C01 / 3110045C01
• Nippondenso: 128000-8160 / 1280008160
• Nippondenso: 128000-8161 / 1280008161
SPECIFICATIONS:

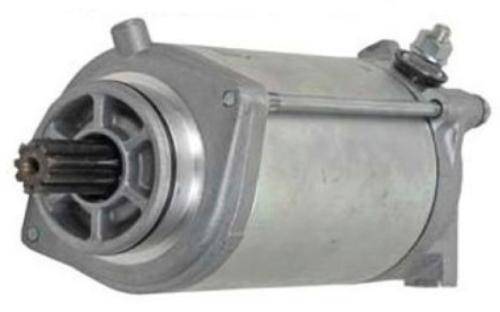

• Item Type: Starter Motor
• Design: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Power: 0.8 kW
• Rotation: CW (Clockwise)
• Teeth on Drive: 9
• Gear OD: 14mm / 0.551 in
• Mounting Ear 1: 6.5mm ID Unthreaded
• Mounting Ear 2: 6.5mm ID Unthreaded
• Weight: 4.5 lbs / 2.05 kg
• Condition: New
VEHICLE APPLICATIONS:
• Suzuki VL800 C50/C50B/C50C/C50T/C50Z Boulevard 805cc (2005-2018)
• Suzuki VL800 Intruder Volusia 805cc (2001-2004)
• Suzuki VZ800 M50 Boulevard / VZ800 Marauder 805cc (2005-2017)
• Suzuki VS800 S50 Boulevard 805cc (2005-2009)
• Suzuki VS800GL Intruder 800cc (1992-2004)
• Suzuki VS750GLP/GLF Intruder 750cc (1988-1991)
• Suzuki VS700GL Intruder 700cc (1986-1987)
• Suzuki VX800 800cc (1990-1993)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
