New Starter Motor Compatible With Yuchai Dozer 1495Dz-1 Engine Qdj1309 Qd1328c Qd1315a Qdj1316w

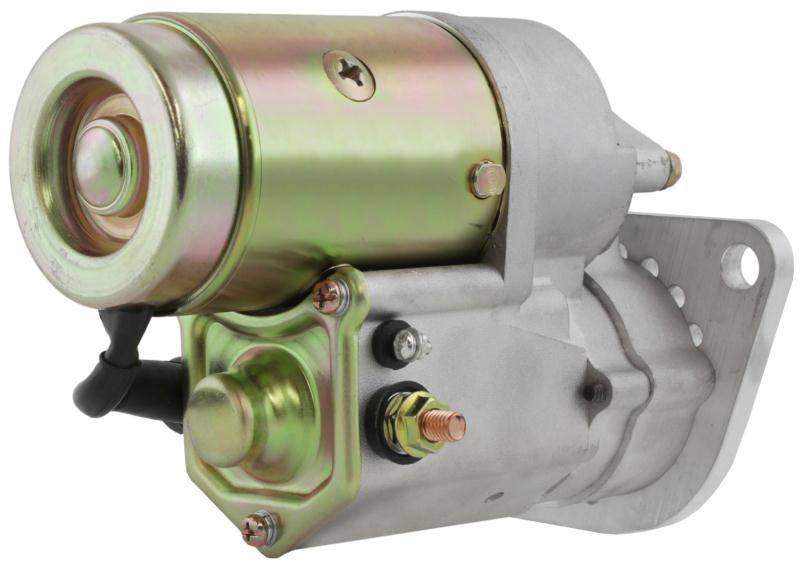

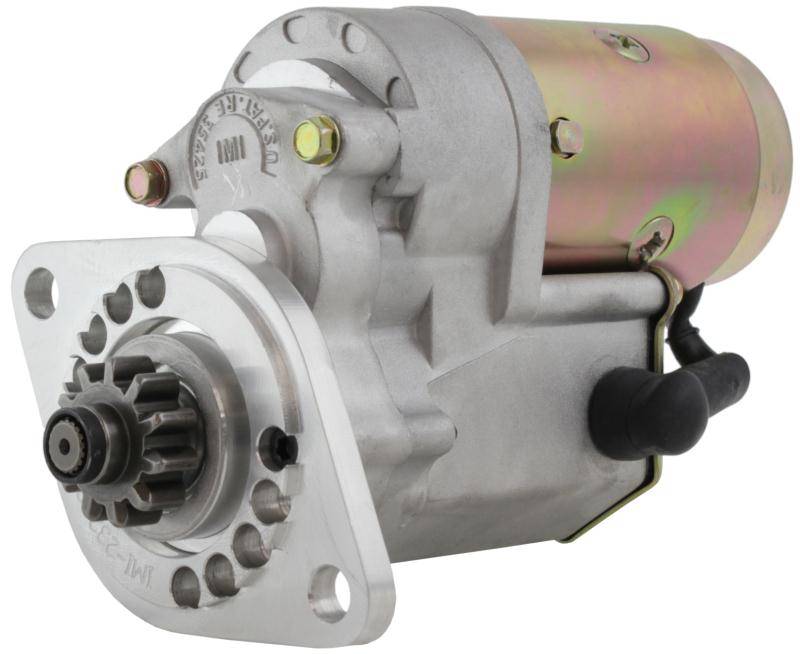

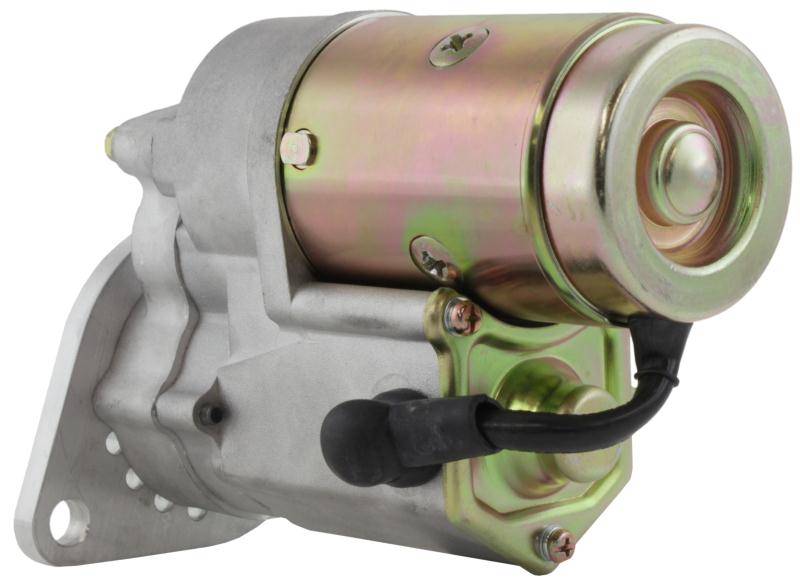

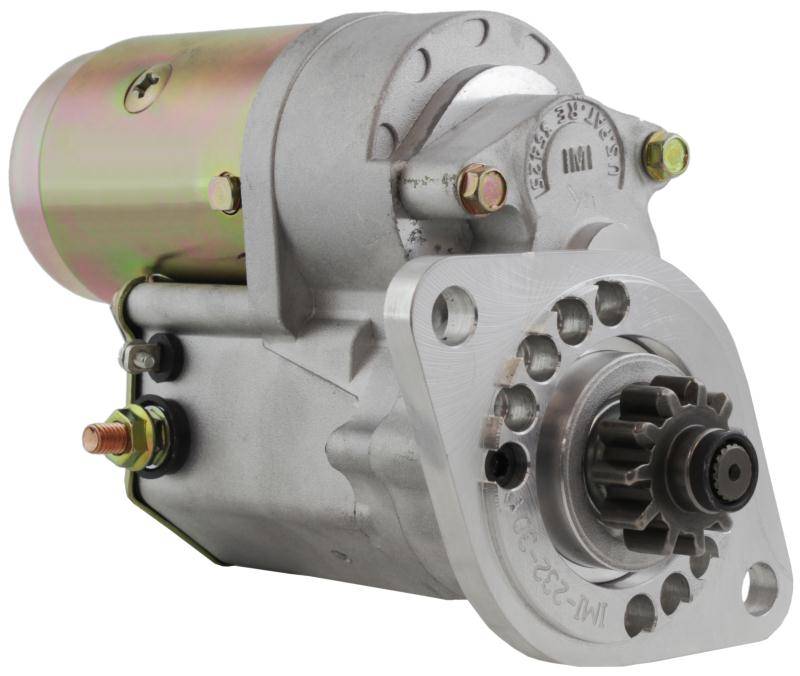

12 VOLT 2.0kW 11-TOOTH CW OSGR GEAR REDUCTION STARTER MOTOR — DENSO TYPE DESIGN FOR RHINO AND HERCULES CHINESE TRACTORS:

TOOTH COUNT AND ROTATION — READ THIS FIRST:
This is the 11 TOOTH clockwise rotation starter with a 40.8 mm pinion outside diameter. Chinese tractor starters are sold in several tooth counts and in both rotations under QD model numbers that differ by a single letter, and the numbers are reused across engine sizes. Count the teeth on the pinion of your original starter and check the rotation before ordering. If your original is not an 11 tooth clockwise unit, this is not the correct starter

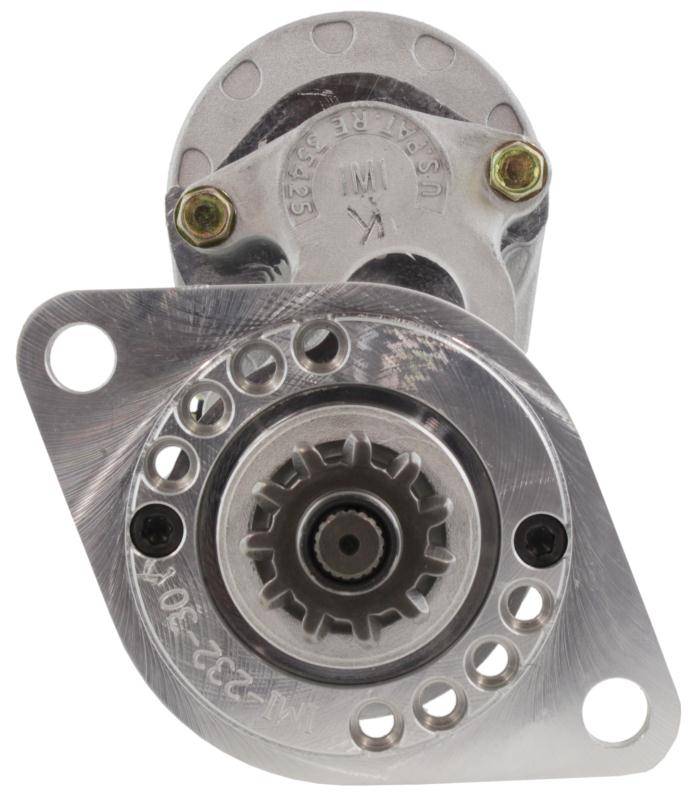

MEASURE THE MOUNTING — TWO BOLT FLANGE:
The unit mounts on a two bolt flange. Both mounting holes are 12.5 mm inside diameter and unthreaded, the centres are 4.75 inches apart, and the pilot hole is 3.25 inches wide. The complete unit weighs 12.33 lb, or 5.60 kg. Measure your original against those figures, because several Chinese starters of similar appearance use a different bolt spacing

OSGR OFFSET GEAR REDUCTION — HIGH TORQUE FOR COLD STARTING:
This is an offset gear reduction starter of Denso type design. The reduction gearset multiplies torque, so the unit cranks harder than a direct drive starter of the same physical size and draws less current doing it. That matters most on a cold morning, on aged wiring, or on a battery that is past its best. The flange is re-clockable, so the solenoid can be turned to the position the installation needs

RHINO COMPACT UTILITY TRACTORS:
• Rhino 3320 Tractor 2 Cylinder 1.7L 32HP Diesel
• Rhino 3324 Tractor 2 Cylinder 1.7L 32HP Diesel
• Rhino 4134 Tractor 3 Cylinder 2.2L 40HP Diesel
• The 3320 and 3324 carry the two cylinder 1.7 litre engine and the 4134 carries the three cylinder 2.2 litre

HERCULES TRACTORS:
• Hercules 2282 Tractor Diesel
• Hercules 2284 Tractor Diesel
• Hercules tractors are built by Benye in China and share a great deal with the Jinma range, so parts data for one often lists the other

CHINESE INDUSTRIAL DIESEL ENGINES:
• Lijia SL2100 2 Cylinder 1.7L Water Cooled Diesel Engine
• Jiangdong TY395 3 Cylinder 2.2L Water Cooled Diesel Engine
• Chinese tractor and industrial diesel engines in the 30 to 50 horsepower range
• The SL2100 is the two cylinder 1.7 litre engine fitted to the 32 horsepower tractors, and the TY395 is the three cylinder 2.2 litre fitted to the 40 horsepower machines

NOT THE GENERATOR SET OR DOZER STARTER — CHECK YOUR NUMBER:
A larger Denso type OSGR starter of similar appearance serves generator sets and dozer engines in the 2.2 to 5.2 kW class, and it carries QD1308, QD1268, QD1315A, QDJ1309, QDJ1315A or QDJ1316W. Those numbers travel together in parts data and are frequently listed alongside this starter by mistake. This unit is the 2.0 kW tractor starter weighing 12.33 lb. If the number on your original is one of the larger unit's numbers, or if your original weighs noticeably more than 12 lb, you need the other starter

MATCH THE NUMBER ON YOUR ORIGINAL — CHECK BEFORE ORDERING:
This unit covers QD1247A, QD1312, QD1328 and QD1328C. Read the number stamped on your original starter and match it against that list. Where the number has worn off, go by the tooth count, the rotation, the two bolt flange spacing and the weight

FITMENT NOTES:
• 12 Volt, 2.0kW, OSGR offset gear reduction, CW rotation, 11 teeth
• Pinion outside diameter 40.8 mm / 1.606 in
• Two bolt flange mounting, 12.5 mm unthreaded holes, 4.75 in centres
• Pilot hole width 3.25 in, open nose cone, grounded case
• Weight 12.33 lb / 5.60 kg
• Match your original unit against the numbers listed to confirm fitment
