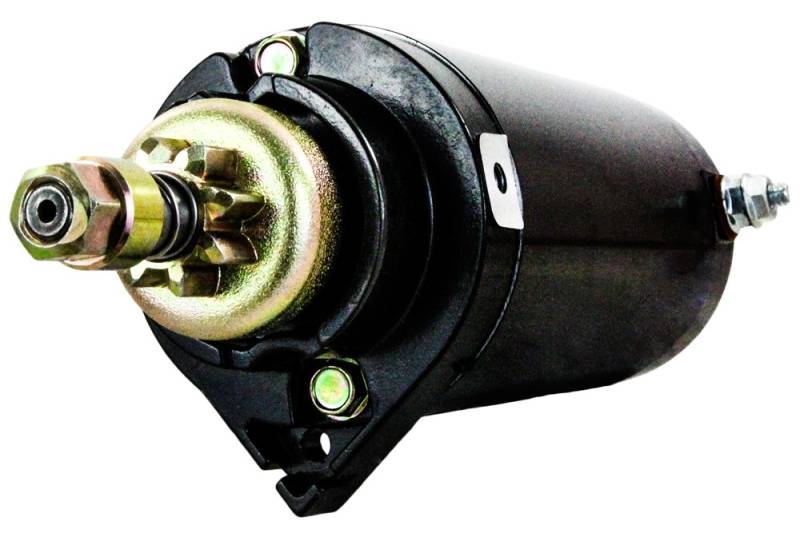

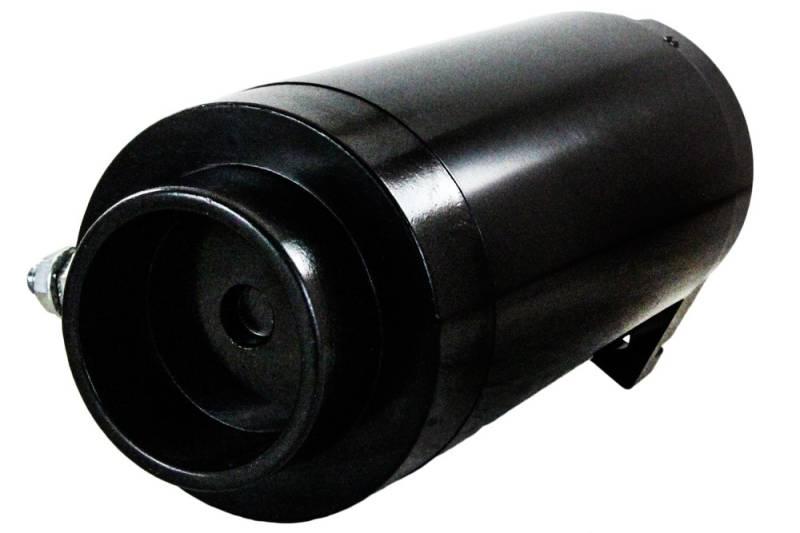

New 12V Ccw Pmdd Starter 8-Tooth Compatible With 1994-2004 Mercury Mariner 125Elpto 125Exlpto

(0) Reviews: Write first review
5736*5
OEM CROSS-REFERENCE PART NUMBERS — MERCURY MARINE / MARINER:
• Mercury / Mariner: 50-66015-1
• Mercury / Mariner: 50-66015-3
• Mercury / Mariner: 50-66015T
• Mercury / Mariner: 50-66015T-1 / 66015T1
• Mercury / Mariner: 50-893891T
• Mercury / Mariner: 50-893892
• Mercury / Mariner: 50-893892T / 893892T

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: 4886540
• Johnson Electric: SM48865

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 4886540-M030SM / 4886540MO30SM

SPECIFICATIONS:
• Product Type: Mercury / Mariner Marine Outboard Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 8
• Pinion / Gear OD: 25.4mm / 1.000"
• Field Housing Length: 5.06" / 128.6mm
• Mounting Ear 1: 1/4-20 ID Threaded
• Weight: 7.5 lbs / 3.41 kg
• Certification: SAE J1171 Marine Ignition Protection Certified
• Application: Mercury / Mariner 75-125HP Outboard (1988-2005)
• Engine: 1.4L (84.6ci), 1.7L (105ci), or 1.9L (113ci) Inline-3 / Inline-4 2-Stroke
• Condition: New

APPLICATION SUMMARY — MERCURY / MARINER 75-125HP OUTBOARDS 1988-2005:
• 1999-2001 Mercury / Mariner 75 / 90HP (1.4L 84.6ci Inline-3) all variants
• 1988-2005 Mercury / Mariner 100 / 115HP (1.7L 105ci or 1.9L 113ci Inline-4) all variants
• 1994-2004 Mercury / Mariner 125HP (1.9L 113ci Inline-4) all variants
• Includes Coastal, Saltwater, and Jet 65/80 specialty variants

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $184.19
Sale: $105.25
Save: 43%
Save: $78.94
Qty:
Free Shipping!

Description

MERCURY / MARINER 75HP OUTBOARDS — 1.4L (84.6CI) INLINE-3 2-STROKE (1999-2004):
• 2000 Mercury / Mariner 75ELH 75HP Outboard — 84.6ci Inline-3 2-Stroke
• 1999-2001 Mercury / Mariner 75ELHPTO 75HP Outboard — 84.6ci Inline-3 (1999 requires Match OE #50-66015T-1)
• 2000 Mercury / Mariner 75ELPT 75HP Outboard — 84.6ci Inline-3
• 1999-2001 Mercury / Mariner 75ELPTO 75HP Outboard — 84.6ci Inline-3 (1999 requires Match OE #50-66015T-1)

MERCURY / MARINER 90HP OUTBOARDS — 1.4L (84.6CI) INLINE-3 2-STROKE (1999-2005):
• 1999-2001 Mercury / Mariner 90ELHPTO 90HP Outboard — 1.4L 84.6ci Inline-3 (1999 requires Match OE #50-66015T-1)
• 1999-2001 Mercury / Mariner 90ELPTO 90HP Outboard — 1.4L 84.6ci Inline-3 (1999 requires Match OE #50-66015T-1)
• 1999-2001 Mercury / Mariner 90ELPTO Coastal 90HP Outboard — 1.4L 84.6ci (1999 requires Match OE #50-66015T-1)
• 1999-2001 Mercury / Mariner 90ELPTO Jet 65 Outboard — 1.4L 84.6ci Jet Drive (1999 requires Match OE #50-66015T-1)
• 2000-2005 Mercury 90ELPTO Saltwater 90HP Outboard — 1.4L 84.6ci
• 2000-2005 Mercury 90EXLPTO Saltwater 90HP Outboard — 1.4L 84.6ci

MERCURY / MARINER 100HP OUTBOARDS — 1.7L 105CI / 1.9L 113CI INLINE-4 2-STROKE (1988-2000):
• 1988-1993 Mercury / Mariner 100ELPTO 100HP Outboard — 1.7L (105ci) Inline-4 2-Stroke
• 1994-2000 Mercury / Mariner 100ELPTO 100HP Outboard — 1.9L (113ci) Inline-4 2-Stroke
• 1988-1989 Mercury / Mariner 100ELXLPTO 100HP Outboard — 1.7L (105ci) Inline-4
• 1997-2000 Mercury 100EXLHPTO 100HP Outboard / 1998-2000 Mariner 100EXLHPTO — 1.9L (113ci) Inline-4

MERCURY / MARINER 115HP OUTBOARDS — 1.7L 105CI / 1.9L 113CI INLINE-4 2-STROKE (1989-2005):
• 1989-1993 Mercury / Mariner 115ELPTO 115HP Outboard — 1.7L (105ci) Inline-4
• 1994-2001 Mercury / Mariner 115ELPTO 115HP Outboard — 1.9L (113ci) Inline-4
• 1989-1993 Mercury / Mariner 115EXLPTO 115HP Outboard — 1.7L (105ci) Inline-4
• 1994-2001 Mercury / Mariner 115EXLPTO 115HP Outboard — 1.9L (113ci) Inline-4
• 1999 Mercury / Mariner 115ELPTO Coastal 115HP Outboard — 1.9L (113ci)
• 2000-2001 Mercury / Mariner 115ELPTO Coastal 115HP Outboard — 1.9L (113ci)
• 1994-2001 Mercury / 1995-2001 Mariner 115ELPTO Jet 80 80HP Jet Drive — 1.9L (113ci)
• 2000-2001 Mercury / Mariner 115ELPTO Saltwater 115HP Outboard — 1.9L (113ci)
• 1994-2005 Mercury 115EXLPTO Saltwater 115HP Outboard — 1.9L (113ci)

MERCURY / MARINER 125HP OUTBOARDS — 1.9L (113CI) INLINE-4 2-STROKE (1994-2004):
• 1994-2001 Mercury / Mariner 125ELPTO 125HP Outboard — 1.9L (113ci) Inline-4
• 1994-2001 Mercury / Mariner 125EXLPTO 125HP Outboard — 1.9L (113ci) Inline-4
• 2002-2004 Mercury 125ELPTO Saltwater 125HP Outboard — 1.9L (113ci)
• 2002-2004 Mercury 125EXLPTO Saltwater 125HP Outboard — 1.9L (113ci)

MERCURY / MARINER MODEL NAMING DECODER:
• EL = Extra Long shaft / ELH = Extra Long Hand-tilt / ELPT = Extra Long Power Trim
• ELPTO = Extra Long Power Trim Operator / EXLPTO = Extra-Extra Long Power Trim Operator
• Coastal / Saltwater = corrosion-resistant variants for marine environments
• Jet 65 / Jet 80 = jet drive variants (HP designation differs from prop drive)

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 8-tooth pinion, 1.000" (25.4mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT/JE design
• Field housing length: 5.06" / 128.6mm
• Mounting ear: 1/4-20 ID threaded
• Weight: 7.5 lbs (3.41 kg)
• SAE J1171 Marine Ignition Protection Certified
• OEM Manufacturer: Johnson Electric / United Technologies
• 1999 Mercury/Mariner 75-90HP applications REQUIRE Match OE #50-66015T-1 (production change in 1999)
• Will NOT fit Mercury / Mariner 30/40/50/60HP outboards (those use or different starter)
• Will NOT fit Mercury / Mariner 135/150/175/200/225HP V6 outboards (different starter family)
• Will NOT fit Mercury / Mariner 4-Stroke EFI outboards (different starter family)
• Will NOT fit pre-1988 Mercury 100/115/125HP outboards (different earlier starter)
• Always verify your OEM part number from the original starter unit before ordering
