Yamaha 701Cc Rebuild Kit 0.25Mm Over 81.25Mm Compatible With 1994-1997 Wave Raider 700 1995-1998

OEM PART NUMBERS:
• Yamaha: 61X-11631-00-93 / 61X116310093
• Yamaha: 61X-11631-01-93 / 61X116310193
• Yamaha: 61X-11631-02-93 / 61X116310293

SPECIFICATIONS:
• Type: Top End Rebuild Kit (0.25mm Oversize Bore)
• Standard Bore: 81.0mm / Oversize: 81.25mm (0.25mm Over)
• Engine: Yamaha 701cc (61X Cylinder) 2-Cyl 2-Stroke
• Bore × Stroke: 81.0mm × 68.0mm
• Power: 62.5HP (single carb) / 73-80HP (twin carb)
• Weight: 5 lbs / Condition: New

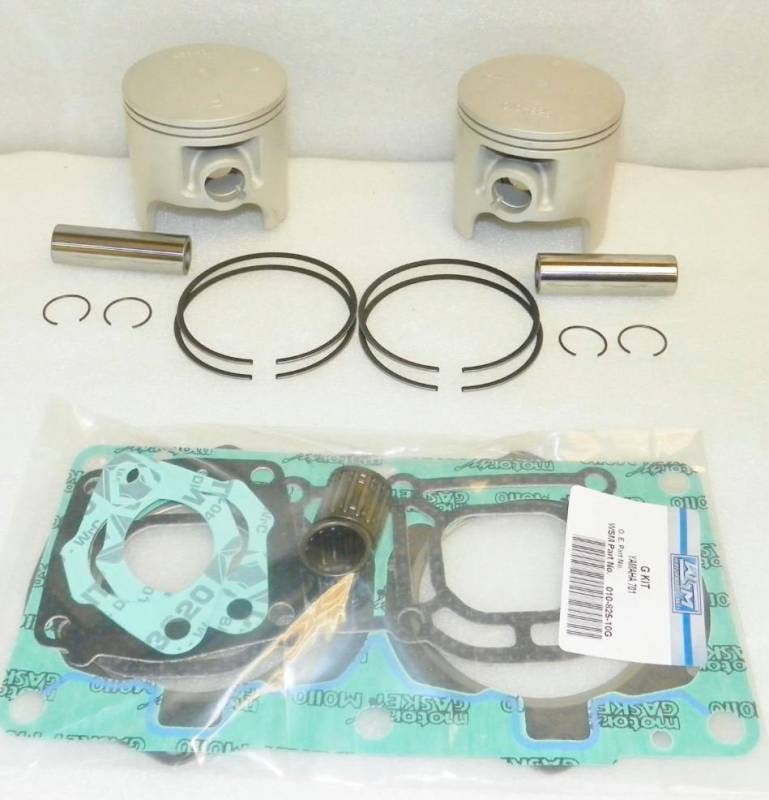

KIT CONTENTS (Complete 2-Cylinder Top End):
• (2) Cast Pistons with Ring Sets (Japanese RIK Performance)
• (2) Wrist Pins / (2) Wrist Pin Bearings / (4) Circlips
• Complete Gasket Set (Head, Base, Exhaust Gaskets, O-Rings)

BORE SIZE CHART (Yamaha 701cc):
• Standard: 81.00mm
• 0.25mm Over: 81.25mm (010-825-11) — THIS KIT
• 0.50mm Over: 81.50mm
• 0.75mm Over: 81.75mm
• 1.00mm Over: 82.00mm

APPLICATIONS:
• Super Jet 700 (1994-2020) / FX1 700 (1994-1995)
• Pro VXR 700 (1993-1994) / Wave Blaster 700 (1993-1996)
• Wave Raider 700 (1994-1997) / Wave Runner III 700 (1994-1995, 1997)
• Wave Venture 700 (1995-1998) / XL 700 (1999-2004)

PRODUCT NOTICE:
