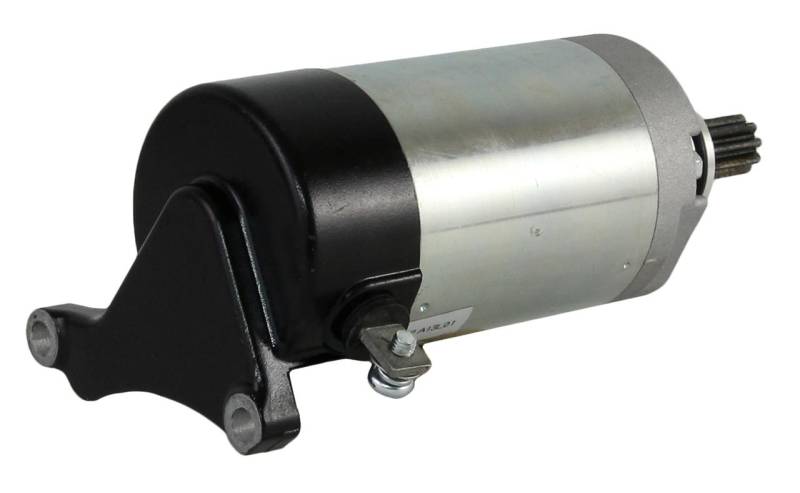

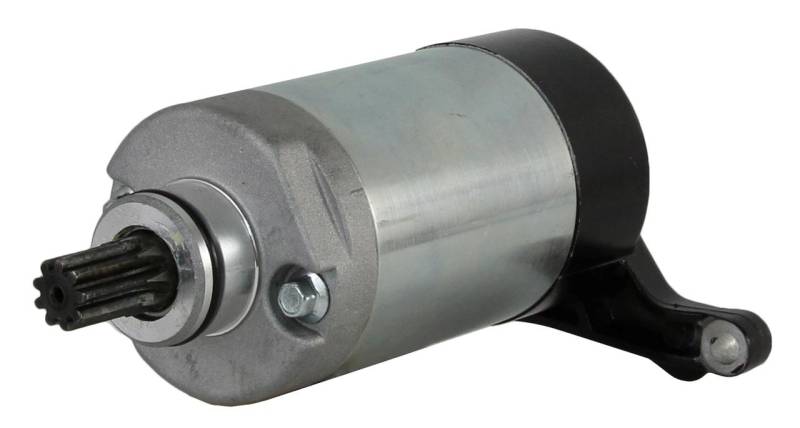

Starter Compatible With Yamaha Bw200 Big Wheel 196Cc 1985-1988 Tw200 Trailway 196Cc 1987-2020 Xt225

OEM PART NUMBERS:
• Yamaha: 5RS-81890-00-00 / 5RS818900000
• Yamaha: 2JX-81890-00-00 / 2JX818900000
• Yamaha: 2JX-81800-00-00 / 2JX818000000
• Yamaha: 2JX-81800-02-00 / 2JX818000200
• Yamaha: 2JX-81800-M0-00 / 2JX81800M000
• Yamaha: 3AW-81890-00-00 / 3AW818900000
• Yamaha: 3AW-81800-01-00 / 3AW818000100
• Yamaha: 3AW-81800-02-00 / 3AW818000200
• Yamaha: 1RL-81800-M0-00 / 1RL81800M000
• Yamaha: 23X-81890-00-00 / 23X818900000

SPECIFICATIONS:
• Design: PMDD (Permanent Magnet Direct Drive)
• Manufacturer: Mitsuba
• Voltage: 12V / Rotation: CCW (Counter-Clockwise)
• Teeth: 9 / Gear OD: 14.2mm / 0.559 in
• Mounting: 6.7mm + 7.2mm Unthreaded
• Weight: 3.155 lbs / 1.43 kg
• Condition: New

VEHICLE APPLICATIONS:
• Yamaha TW200 Trailway 196cc (1987-1988, 2003-2020)
• Yamaha XT225 / XT225 Serow 223cc (1992-2007)
• Yamaha TT-R225 (TTR225) 223cc (1999-2004)
• Yamaha TTR230 (TT-R230) 223cc (2005-2017)
• Yamaha BW200 Big Wheel 196cc (1985-1988)
• Yamaha ST225 Bronco 223cc (1997)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
