Piston Kit 81.50Mm Bore Compatible With Yamaha Super Jet 700 1994-2020 Wave Runner Iii Wave Raider

OEM PART NUMBERS (SUPERSESSION CHAIN):
• Yamaha: 61X-11631-00-93 / 61X116310093
• Yamaha: 61X-11631-01-93 / 61X116310193 (superseded by -02)
• Yamaha: 61X-11631-02-93 / 61X116310293 (current)

SPECIFICATIONS:
• Product Type: Piston Kit
• Bore Size: 81.50mm (0.5mm Over Standard 81.00mm)
• Piston: Cast OEM Spec
• Engine: Yamaha 701cc (61X) 2-Cylinder Twin 2-Stroke
• Bore x Stroke: 81mm x 68mm
• Power: 80 HP
• Cylinder: 61X (No Window Port)

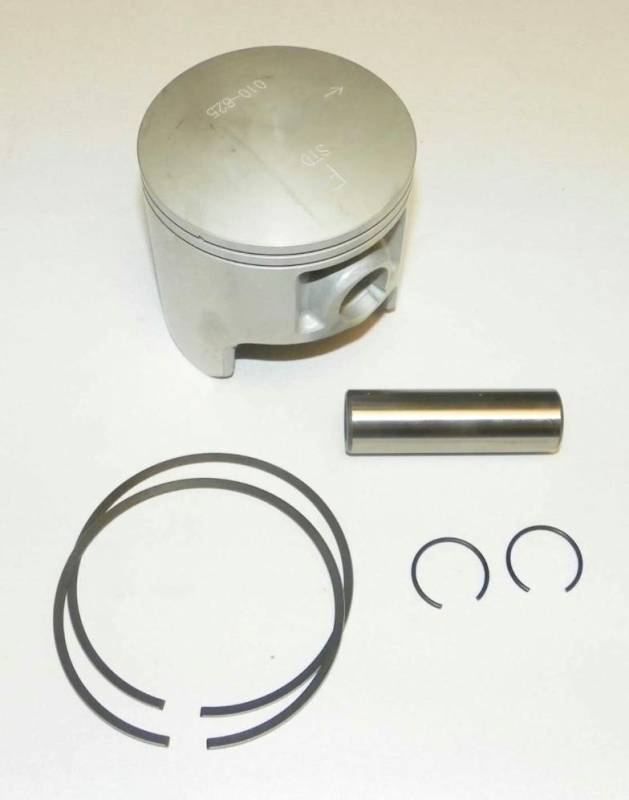

• Kit Includes: Piston, Ring Set, Wrist Pin, Circlips — Individual (2 Required Per Motor)
• Clearance: .004-.0045" • Weight: 2 lbs

APPLICATIONS:
• Yamaha: FX1 (94-95) / Pro VXR (93-94) / Super Jet (94-2020)
• Yamaha: Wave Blaster (93-96) / Wave Raider (94-97) / WR III (94-97)
• Yamaha: Wave Venture (95-98) / XL 700 (99-04)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
