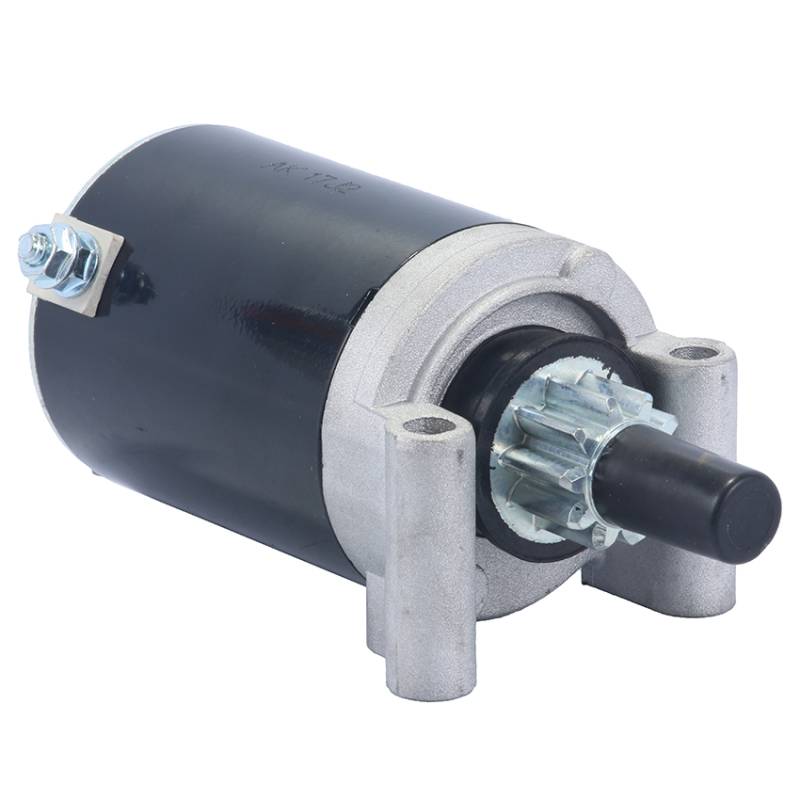

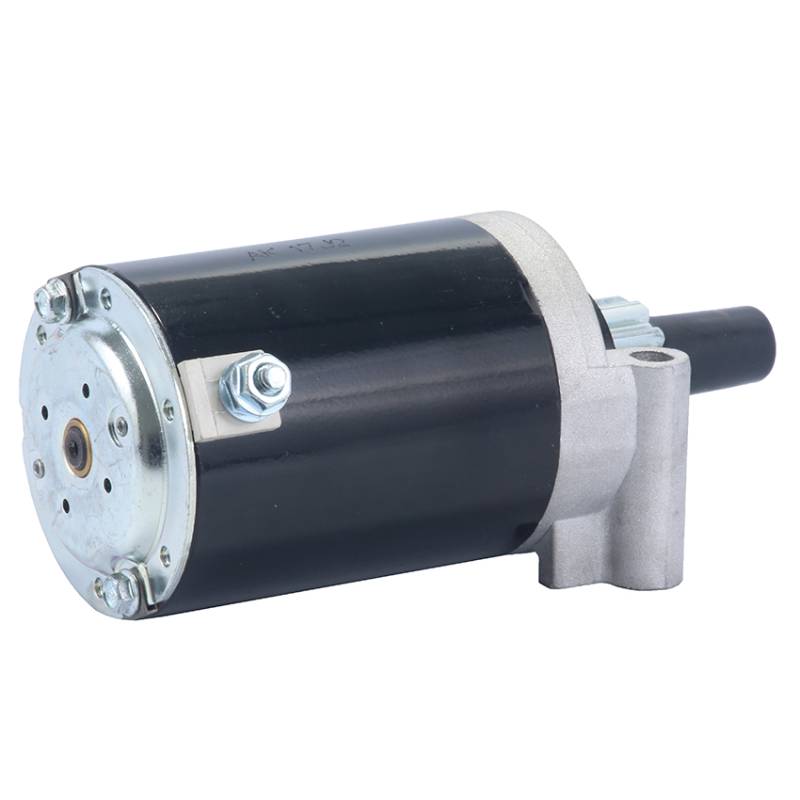

New 12V Ccw Pmdd Starter 10-Tooth Compatible With 1989-1997 John Deere Stx30 Stx38 Stx46 Lawn

JOHN DEERE STX-SERIES LAWN TRACTORS — KOHLER COMMAND CV (1989-1997):
• 1989-1993 John Deere STX30 Lawn Tractor with Kohler CV9 9HP Single-Cyl Bendix-Type Starter
• 1989-1996 John Deere STX38 Lawn Tractor with Kohler CV12.5 12.5HP Single-Cyl Bendix-Type Starter
• 1994-1996 John Deere STX38 Lawn Tractor with Kohler CV13 13HP / CV14 14HP Single-Cyl Bendix-Type Starter
• 1994-1997 John Deere STX46 Lawn Tractor with Kohler CV14 14HP / CV15 15HP Single-Cyl Bendix-Type Starter

JOHN DEERE LT-SERIES LAWN TRACTORS — KOHLER COMMAND CV (2002-2005):
• 2002 John Deere LT150 Lawn Tractor with Kohler CV15 15HP Single-Cyl (Stamped Kohler #25-098-07)
• 2003-2005 John Deere LT150 Lawn Tractor with Kohler CV15 15HP (0.43L 426cc 26ci)
• John Deere LT155 38"/42" Deck Lawn Tractor with Kohler CV15 15HP Single-Cyl
• 2002-2005 John Deere LT160 Lawn Tractor with Kohler CV16 16HP (Stamped Kohler #25-098-07)
• John Deere LT133 38" Deck Lawn Tractor with Kohler CV13 13HP Single-Cyl

JOHN DEERE LTR / L-SERIES + SST / 7G18 LAWN TRACTORS — KOHLER COMMAND:
• John Deere LTR155 Rear-Engine Riding Lawn Tractor with Kohler CV15 15HP
• John Deere LTR166 Rear-Engine Riding Lawn Tractor with Kohler Command Engine
• John Deere L110 42" Deck Lawn Tractor with Kohler Command Engine
• John Deere SST15 42" Deck Convertible Spin Steer Tractor with Kohler 15HP
• John Deere 7G18 48" Deck Commercial Walk-Behind Mower with Kohler Command

JOHN DEERE / SABRE LAWN/GARDEN TRACTORS — KOHLER COMMAND CV TWIN (2000-2002):
• 2000 John Deere/Sabre 1948GV Lawn Tractor with Kohler CV20S-65560 / CV20S-65571 19.9HP V-Twin
• 2000-2002 John Deere/Sabre 1948HV Lawn Tractor with Kohler CV20S-65560 / CV20S-65571 19.9HP V-Twin
• 2000-2002 John Deere/Sabre 2148HV Lawn Tractor with Kohler CV22S-75529 / CV22S-75542 21HP V-Twin
• 2000-2002 John Deere/Sabre 2354HV Lawn Tractor with Kohler CV23S-75531 / CV23S-75541 23HP V-Twin

SCOTTS LAWN TRACTORS — KOHLER COMMAND (1999-2001):
• 1999-Up Scotts S2048 Lawn Tractor with Kohler CV20 20HP V-Twin
• 2000-2001 Scotts S2348 Lawn Tractor with Kohler CV23 23HP V-Twin

KOHLER COMMAND ENGINE FAMILY — STANDALONE APPLICATIONS:
• Kohler Command CV (Vertical-Shaft): CV9 / CV12.5 / CV13 / CV14 / CV15 / CV16 / CV18 / CV20 / CV22 / CV23
• Kohler Command CV (Additional Variants): CV460 / CV461 / CV490 / CV491 / CV492 / CV675
• Kohler Command CH (Horizontal-Shaft): CH14 / CH18 / CH22 / CH23
• Specific Engine Codes: CH18S-62546, CH18S-62596, CH22-66525, CH22S-66528/66542/66552
• Specific Engine Codes: CV18S-61561, CV18S-61570, CV20-65518

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.209" (30.7mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original Johnson Electric design
• Field case length: 3.81" / 96.7mm
• Mounting: 2 ears (both 8.0mm unthreaded) with mounting flanges 53mm thick
• Battery terminal located on field case
• Torque: 4.23 Nm / Cycle rating: 8000 cycles
• Weight: 7 lbs
• OEM Manufacturer: Johnson Electric
• Will NOT fit Kohler K-Series K-161/K-181 cast-iron L-head engines (those use with 16-tooth pinion)
• Will NOT fit Kohler M-Series Magnum M-8 thru M-16 engines (those use — different design)
• Will NOT fit Kohler Courage SV-Series engines (different starter family)
• Will NOT fit Kohler 25-098-22-S applications (those use — 13-tooth)
• Will NOT fit John Deere LX173/LX176/LX178/LX186 (different engine/starter)
• Will NOT fit John Deere D100/D110/D120/D130/D140/D150/D160/D170 (different engine/starter)
• Will NOT fit John Deere X300/X304/X310/X324/X340 (different engine/starter)
• Always verify your OEM part number from the original starter unit before ordering
