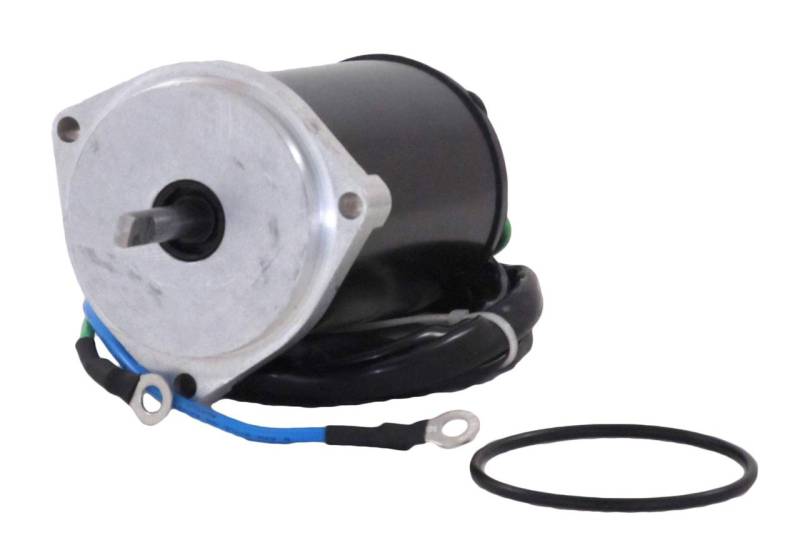

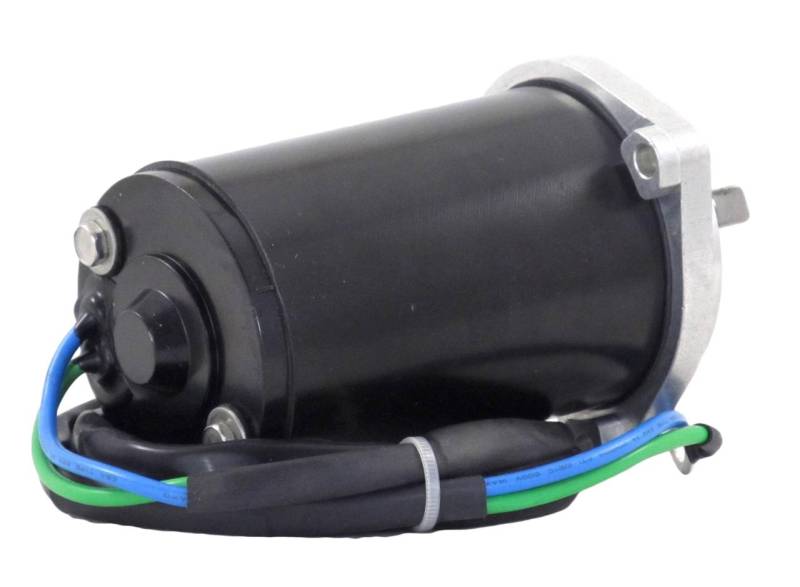

12V Tilt Trim Motor Compatible With Yamaha 4-Stroke Outboard F50tlr F60tjr F60tlr T50tlr T60tlr 50Hp

OEM PART NUMBERS:
• Yamaha: 6C5-43880-01-00 / 6C5438800100 / 6C5-43880-01 / 6C54388001
• Yamaha: 6C5-43880-00-00 / 6C5438800000 / 6C5-43880-00 / 6C54388000
• Quicksilver: 8M6007564



AFTERMARKET CROSS REFERENCE:
• API Marine: PT625NM
• Arco Marine: 6257
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire with Ring Terminals
• Shaft OD: 8mm / 0.315in
• Shaft Type: Slotted
• Field Housing OD: 64mm / 2.52in
• Overall Length: 146.8mm / 5.78in
• Mounting: 3-Bolt
• Weight: 6 lbs
• Condition: New

YAMAHA APPLICATIONS (2003-2016):
• F50: F50TLR (2003, 2005-2012), F50LA (2013), F50LB (2014-2016)
• F60: F60TJR/TLR (2003, 2005-2012), F60JA/LA (2013), F60JB/LB (2014-2016)
• T50: T50TLR (2003, 2005), T50LA (2013), T50LB (2014-2016)
• T60: T60TLR (2003, 2005-2012), T60LA (2013), T60LB (2014-2016)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
