OEM PART NUMBERS:
• BRP/Sea-Doo: 290-888-577 / 290888577
• BRP/Sea-Doo: 420-888-577 / 420888577
SPECIFICATIONS:
• Type: Top End Rebuild Kit (Standard Bore)
• Bore Size: 78.00mm Standard (3.071")
• No Boring Required — Light Hone to Break Glaze
• Engine: Rotax 657 (First Generation 650cc)
• Displacement: 649cc (Marketed as 650cc)
• Configuration: 2-Cylinder 2-Stroke
• Bore × Stroke: 78mm × 68mm
• Weight: 5 lbs
• Condition: New

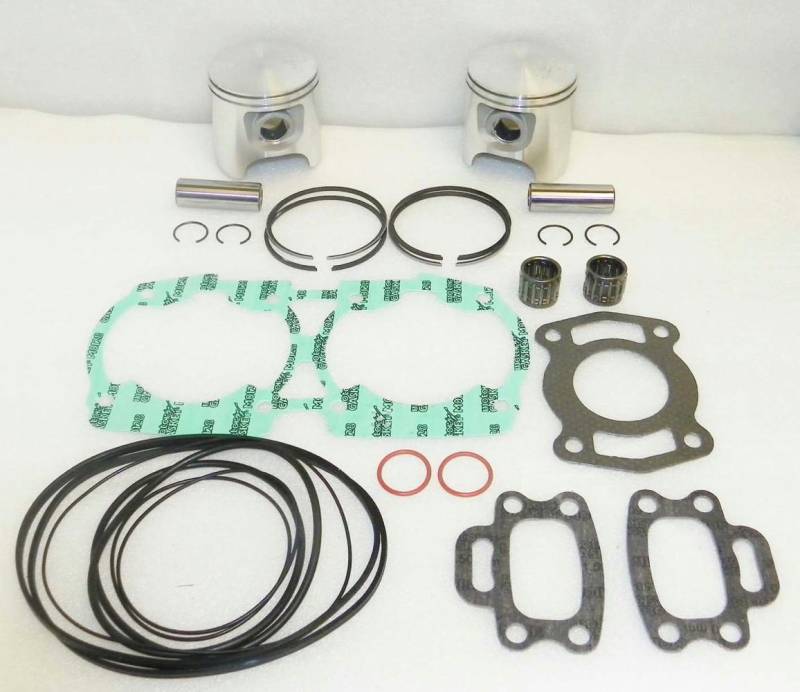

KIT CONTENTS (Complete 2-Cylinder Top End):
• (2) Cast Pistons with Ring Sets (Japanese RIK Performance)
• (2) Wrist Pins / (2) Wrist Pin Bearings / (4) Circlips
• Complete Gasket Set (Head, Base, Exhaust Gaskets)
• All O-rings and seals needed for top end rebuild
BORE SIZE CHART (Sea-Doo 650/657):
• Standard: 78.00mm (010-816-20) — THIS KIT
• 0.25mm Over: 78.25mm
• 0.50mm Over: 78.50mm
• 0.75mm Over: 78.75mm
• 1.00mm Over: 79.00mm
APPLICATION:
• Sea-Doo XP 650 (1993) — Rotax 657 engine ONLY
