Platinum Piston Kit Standard Bore 80Mm Compatible With 2000-2003 Kawasaki 1100 Stx Di 2001-2004

OEM PART NUMBERS:
• Kawasaki: 13001-3734 / 130013734

SPECIFICATIONS:
• Type: Platinum Piston Kit (Standard Bore)
• Piston Finish: Platinum — Anodized Top, Graphite Coated Skirts
• Standard Bore: 80.00mm — No Boring Required
• Engine: Kawasaki 1071cc 3-Cylinder 2-Stroke Vertical Triple
• Fuel System: Ficht Direct Injection (DI)
• Power: 130HP / Liquid Cooled / Digital CDI Ignition
• Weight: 2 lbs / Condition: New

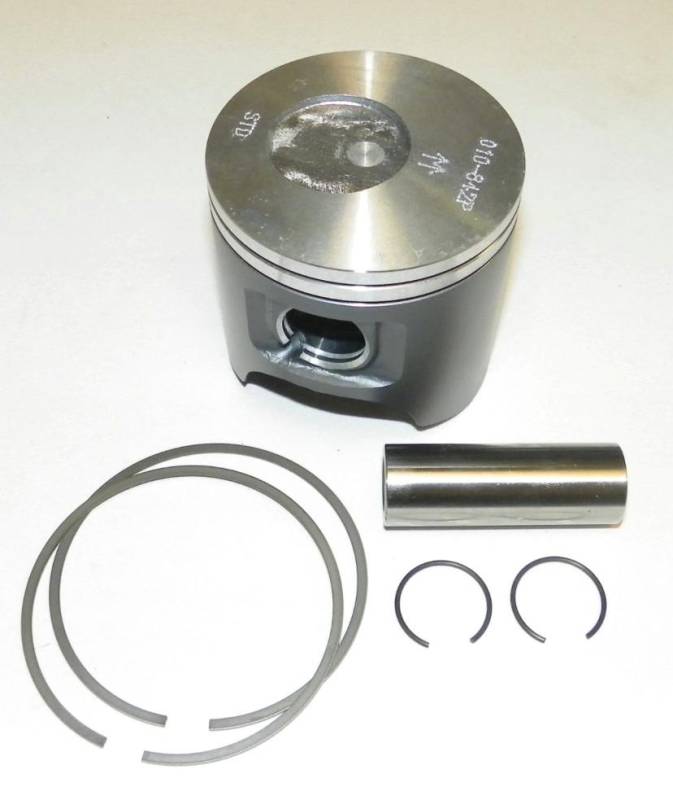

KIT CONTENTS (Single Cylinder):
• (1) Platinum Piston — Anodized Top, Graphite Coated
• (1) Ring Set (Japanese RIK Performance)
• (1) Wrist Pin / (2) Circlips
• Order (3) kits for complete 3-cylinder rebuild

BORE SIZE CHART — PLATINUM (Kawasaki 1100 DI):
• Standard: 80.00mm (010-842PK) — THIS KIT
• 0.25mm Over: 80.25mm
• 0.50mm Over: 80.50mm
• 0.75mm Over: 80.75mm
• 1.00mm Over: 81.00mm

APPLICATIONS (DI ONLY):
• 1100 STX DI (2000-2003) / Ultra 130 (2001-2004)
