OEM PART NUMBERS:
• Komatsu: 3863240 / 600-863-4410 / 600-863-4510
• Komatsu: 600-863-4610 / 600-863-4611 / 600-832-3220
• Komatsu: 600-863-4110 / 600-863-4130
• Nikko: 0-24000-3060 / 0-24000-3061 / 0-24000-3071
• Nikko: 0-24000-3240 / 02-24-2029
• Denso: 228000-4990 / 228000-4991 / 228000-4992
• Denso: 9722809-499
SPECIFICATIONS:
• Voltage: 24V
• Power: 4.5kW / 6.03HP
• Rotation: CW (Clockwise)
• Type: OSGR (Offset Gear Reduction)
• Teeth: 10
• Gear OD: 1.531 Inch / 38.9mm
• Pinion OD: 1.512 Inch / 38.4mm
• Mounting: 11mm Unthreaded (Both Ears)
• Battery Stud: M10-1.5 Threaded
• Switch Terminal: M5-0.8 Set-Screw
• Weight: 20 lbs / 8.5 kg
• Note: Dry Clutch Only
• Condition: New
APPLICATION:
• Excavator PC60-7/PC75-UUE/PC100/PC120/PC128/PC130-6/PC138US/PC158US (S4D102E)
• Excavator PC200-6/PC200-7/PC210-6D/PC220-6/PC220-7/PC228UU-1 (S6D102E)
• Wheeled Excavator PW128E-1/PW128UUE-1 (4D102-E1)
• Dozer D37E/D41-E/D41A/D39E-21/D31P-20/D31E-20 (SD102/S4D102E/S6D102)
• Loader WA80E-3/WA100-3/WA120/WA180/WA200-3/WA250-3 (1997-2007)
• Forklift FD035/FD40ZT-7/CX20/DX20/EX50
• Generator EG125BS-2/EG90BS-1/EGS120 / Grader GD355A-3/GD405A-3
• Dry clutch applications only — not compatible with wet clutch

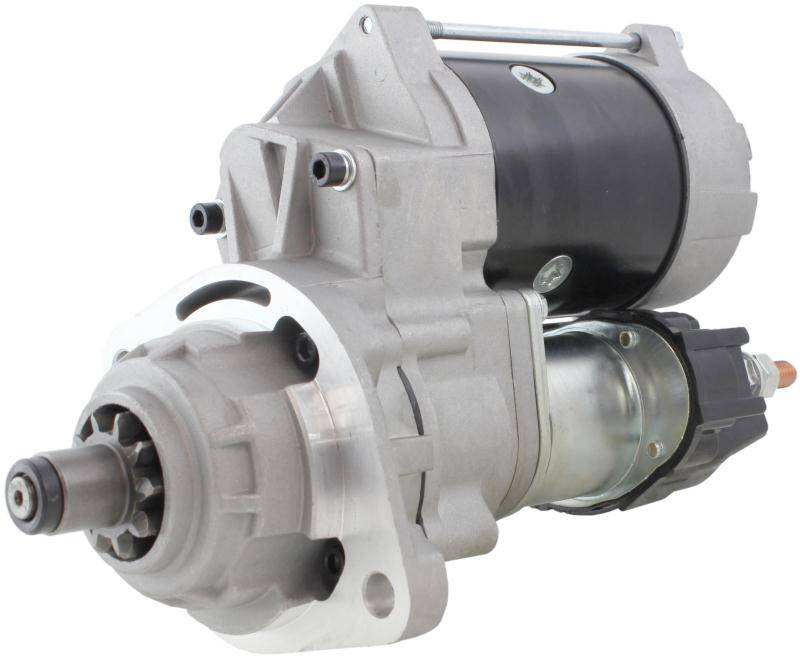

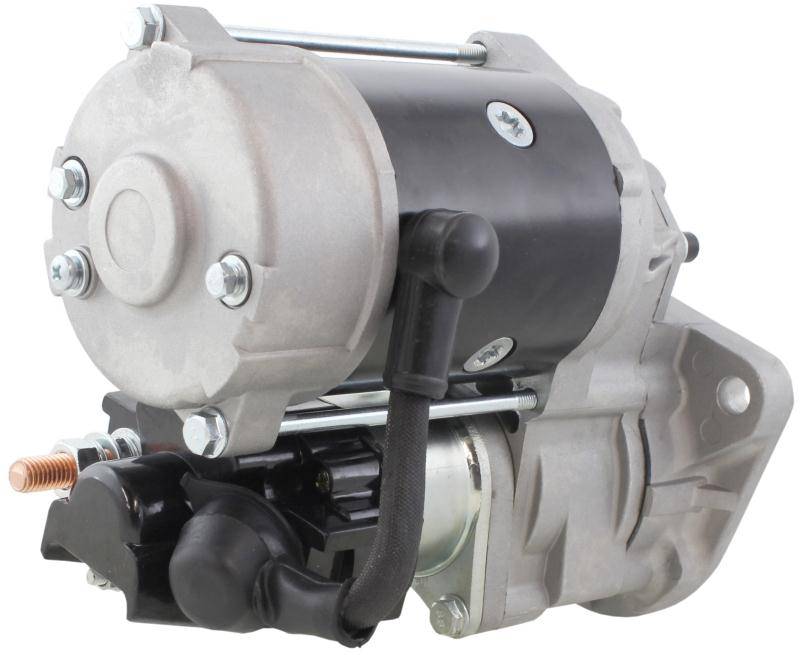

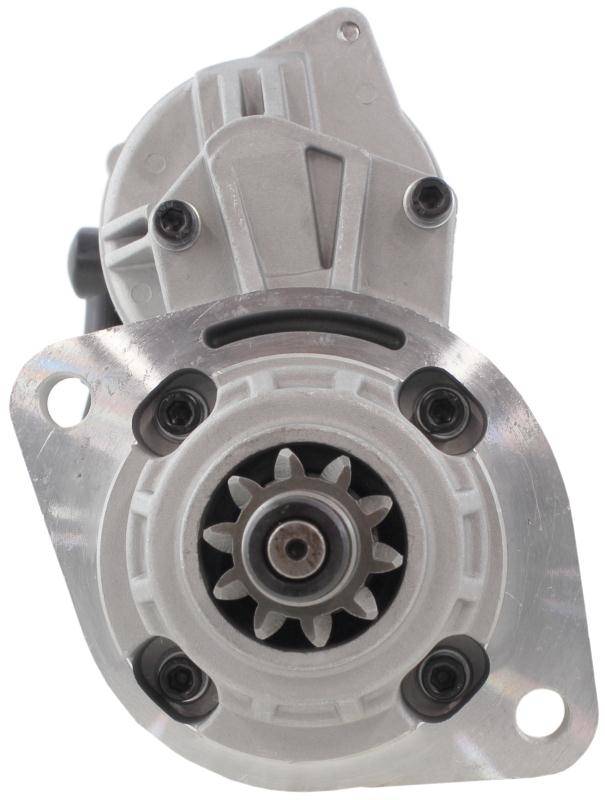

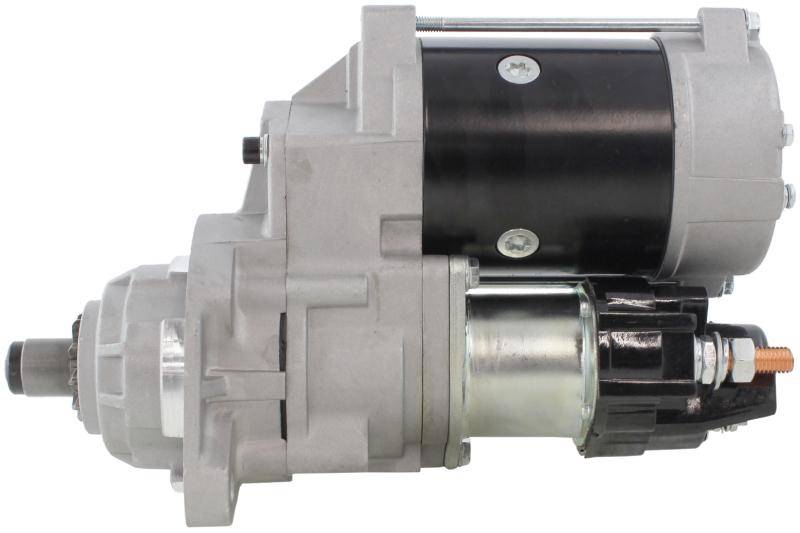

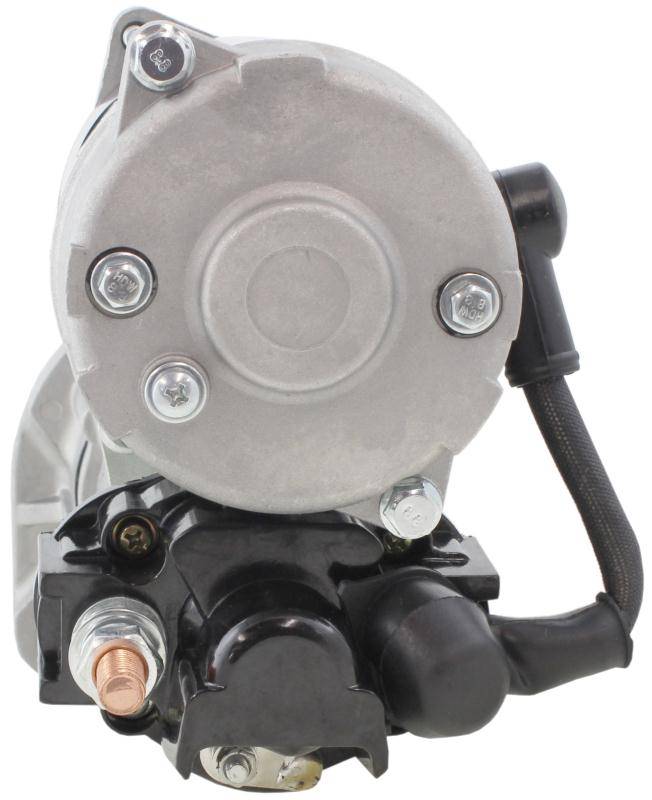

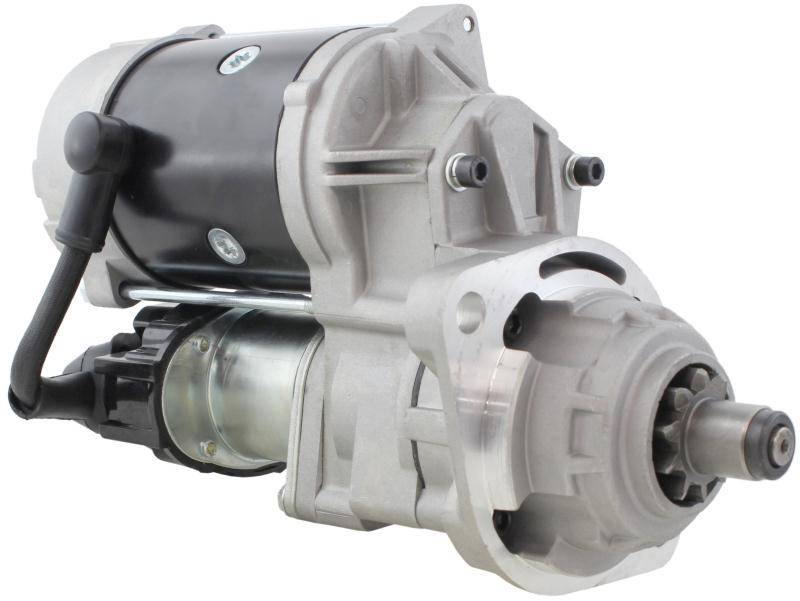

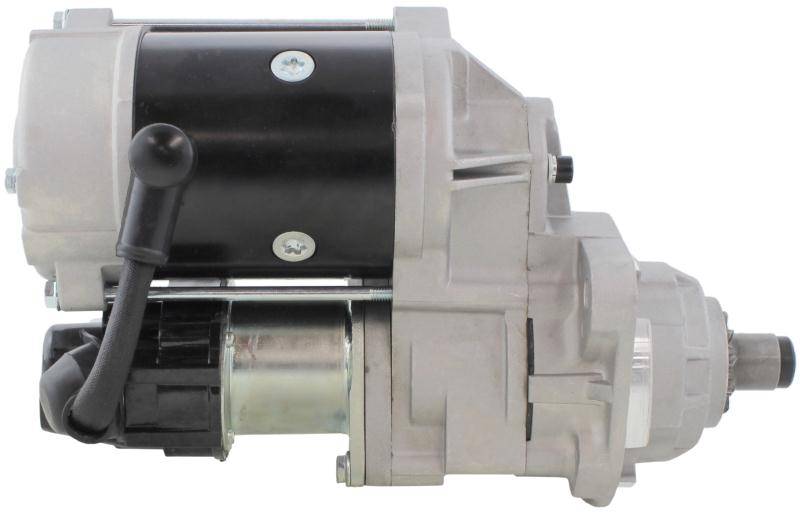

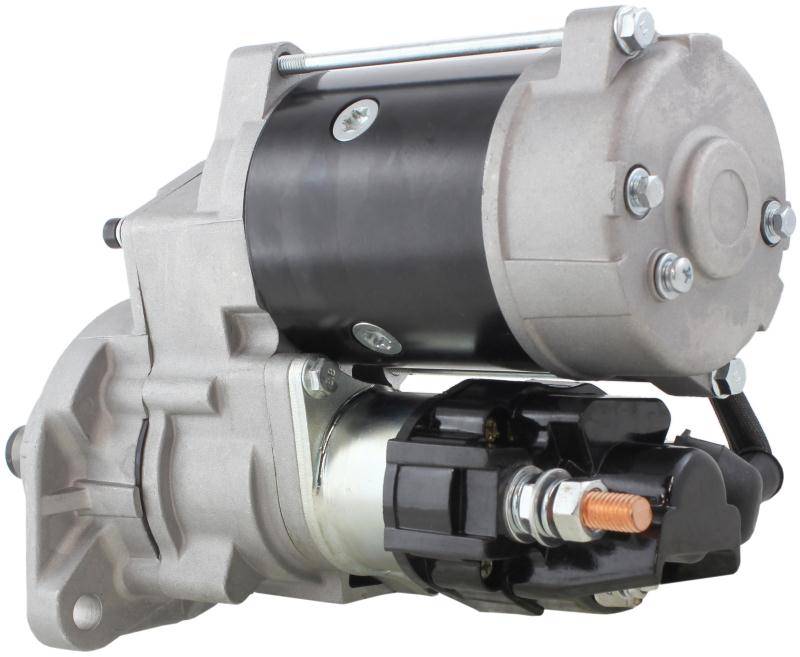

Starter Motor — Komatsu Dozer D37E D39E-21 D41-E Excavator PC60-7 PC138US SD102
New 24-volt starter for Komatsu D37E, D39E-21, and D41-E dozers with SD102 engine. Also fits PC60-7, PC100-6, PC138US-2, PW128E-1, WA80E-3, and EG90BS-1 generator. Replaces Nikko 0-24000-3060 through 0-24000-3240, Komatsu 600-863-4510, 600-863-4610, and 600-832-3220. Dry clutch only.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
