12V Starter Motor Compatible With John Deere 925 932 935 942 945 952 955 965 975 985 Combine Bosch

OEM PART NUMBERS:
• Bosch: 0-001-359-016 / 0001359016
• Iskra: IS0534
• John Deere: AT23401
• John Deere (Additional): AL110597 / AL110598 / SE501411 / TY25950

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Power: 3.1 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 32mm / 1.260 in
• Mounting Ear 1: 13.4mm ID Unthreaded
• Weight: 29.49 lbs / 13.40 kg
• Condition: New

APPLICATION:
• John Deere Combines 925-985, 1032-1075
• John Deere Power Unit CD3029DF GenSet Code 3008

12V 3.1kW Starter Motor - John Deere Combines (925-985, 1032-1075)

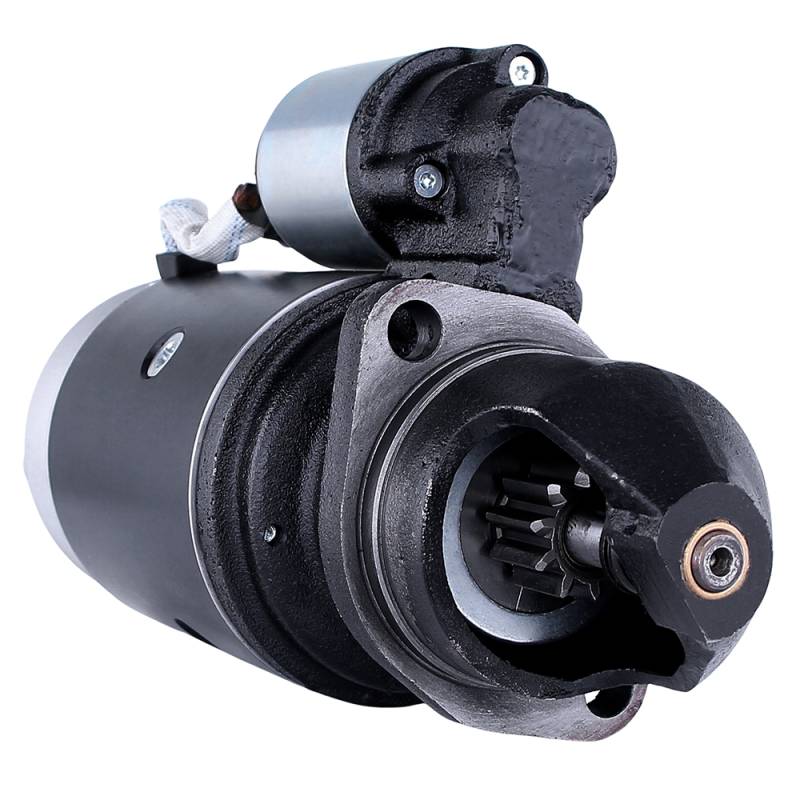

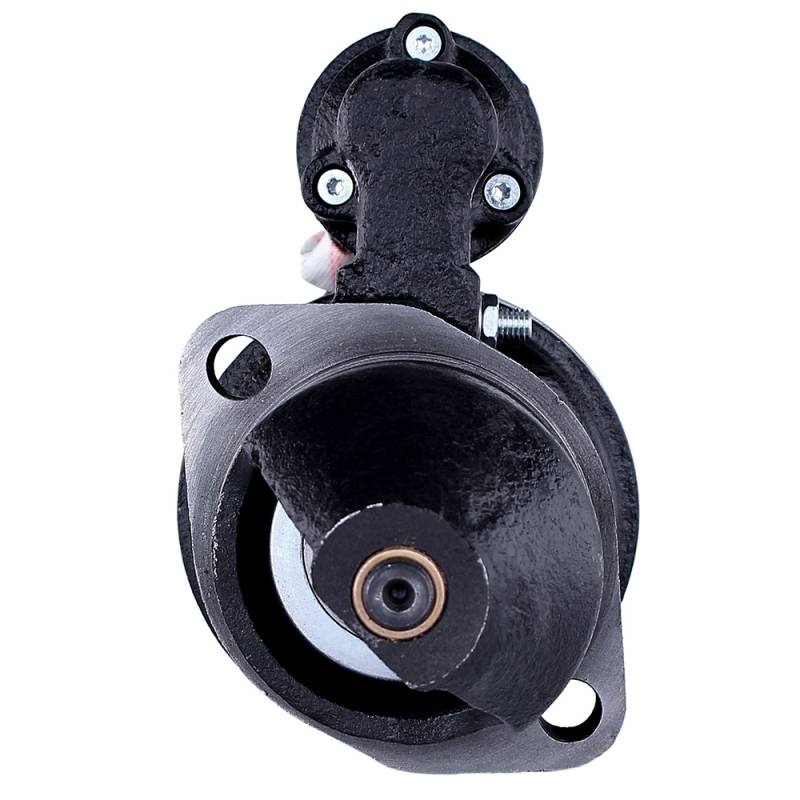

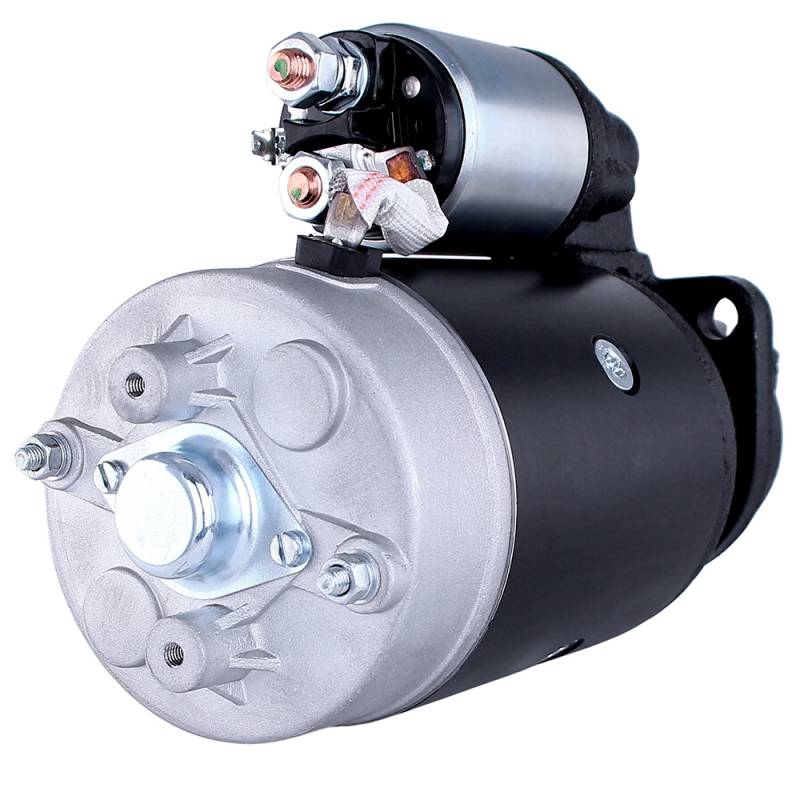

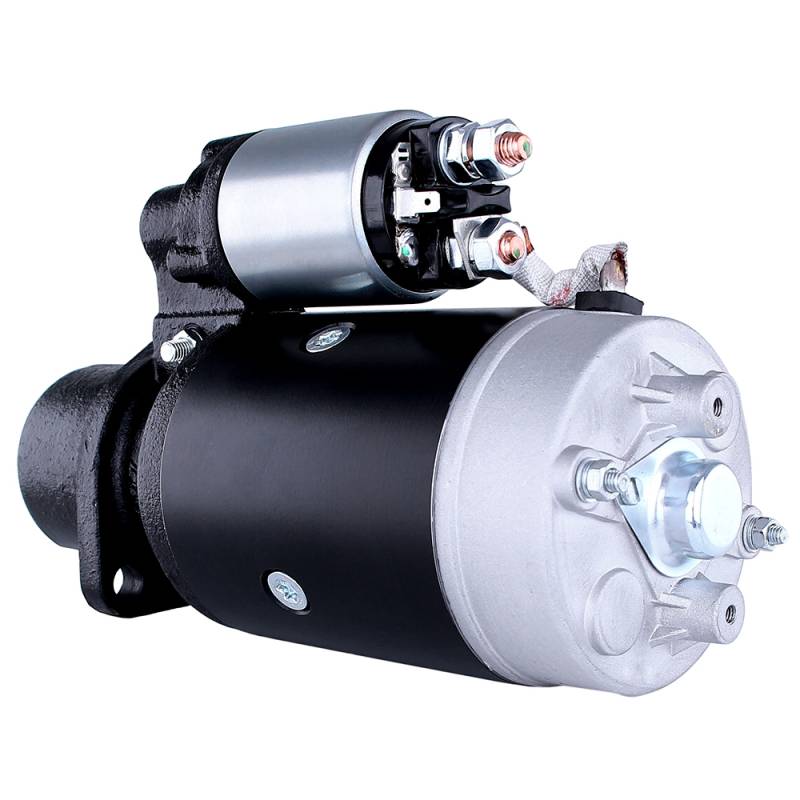

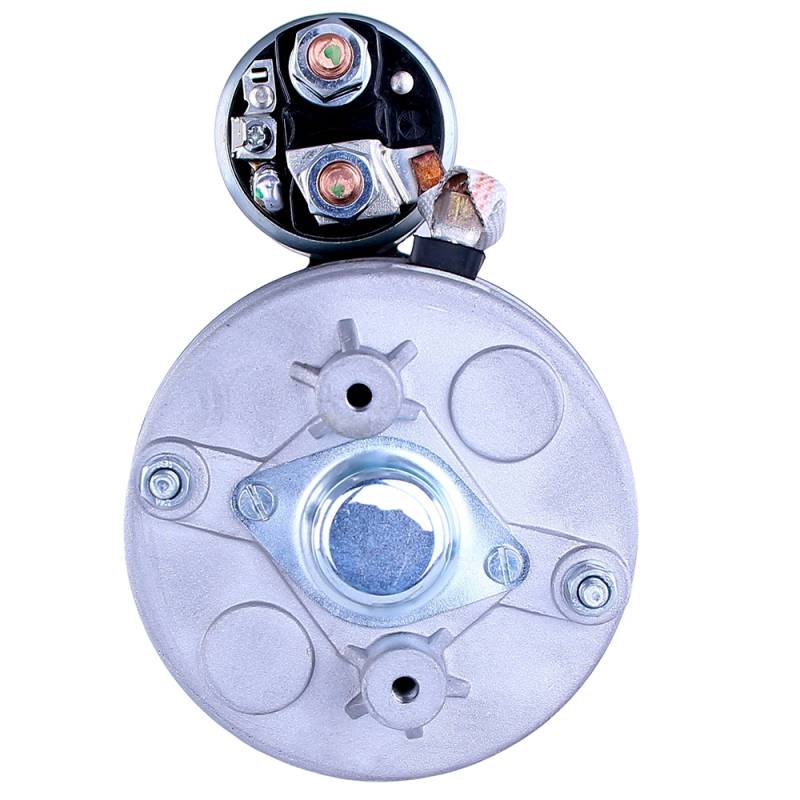

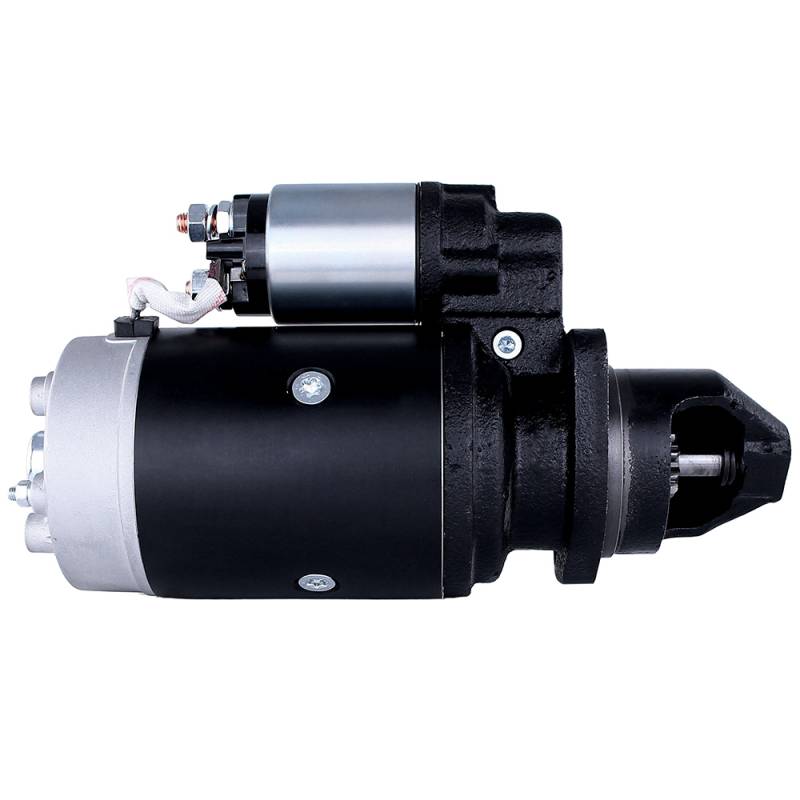

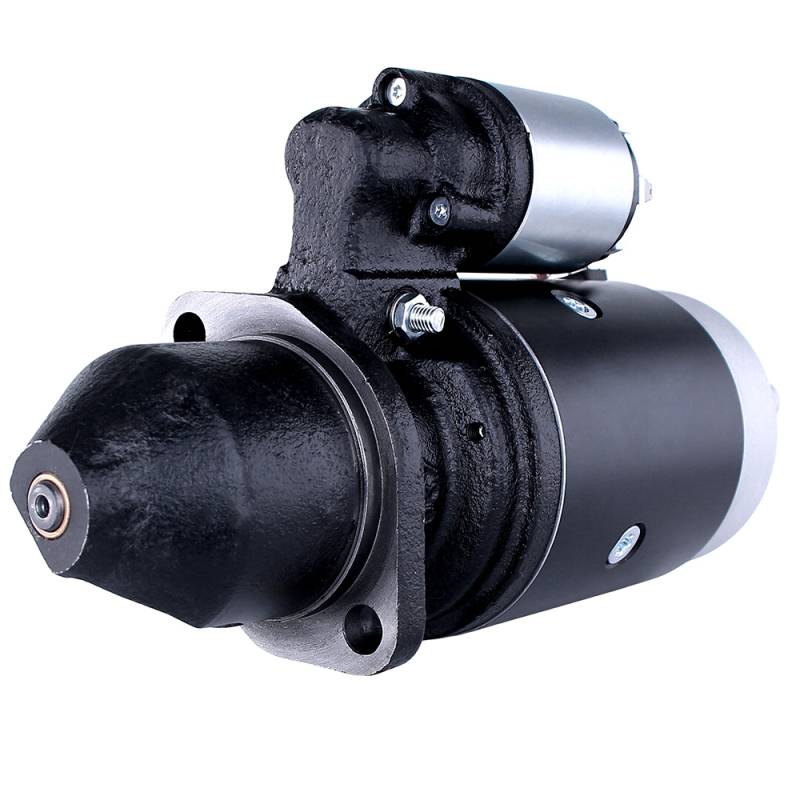

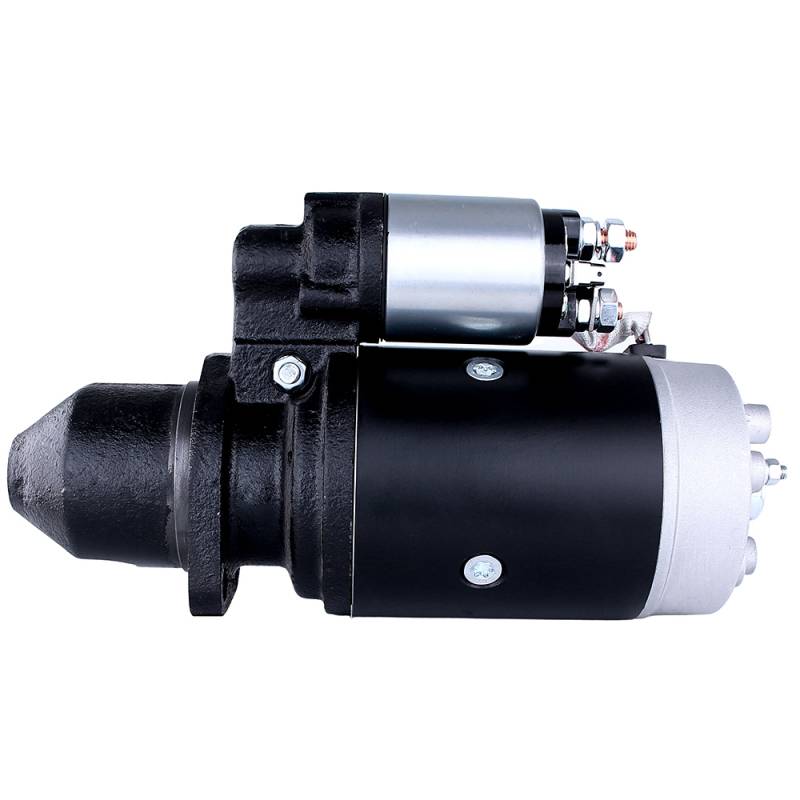

New Bosch DD-type 12 volt 3.1 kW starter motor for John Deere combine harvesters and CD3029DF power units. Clockwise rotation, 10-tooth pinion with 32mm (1.260 in) gear OD. Dual 13.4mm unthreaded mounting ears. Weight 29.49 lbs (13.40 kg). Direct OEM replacement for Bosch 0-001-359-016, Iskra IS0534, John Deere AT23401, AL110597, and SE501411. Also cross-references Magneton 443-115-142-700 and Valeo 436070. Engineered as a direct bolt-on replacement requiring no modifications for proper installation on John Deere combine harvesters.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
