12V Starter Motor Compatible With John Deere Sabre 1646Hs Cub Cadet 382 383 1105 1110 Scotts L2548

5742B5
JOHN DEERE PART NUMBERS:
• LG497595 (current number)
• AM122337, AM122237
• SE501880 (exchange)
• AM37352, AM39137
• MIA12048, MIU13772

BRIGGS & STRATTON PART NUMBERS:
• 497595, 693054
• 391423
• 394805
• 390838
• 392749
• 491766
• 497594
• 390849
• 391177
• 392744
• 494325
• 392749R
• 394399
• 497595P
• 5406H, 5406K (retail pack)

REPLACEMENT PART NUMBERS:
• Stens 435-320, 435320
• Stens 435-303, 435303
• Rotary 9798
• Oregon 33-700, 33700
• United Technologies SM01965, 0196540
• Lucas LRS2170, LRS02170
• Mitsubishi M1T02271

OTHER BRIGGS & STRATTON STARTER NUMBERS REPLACED:
• 795121
• 499521, 497401
• 393499, 394943

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

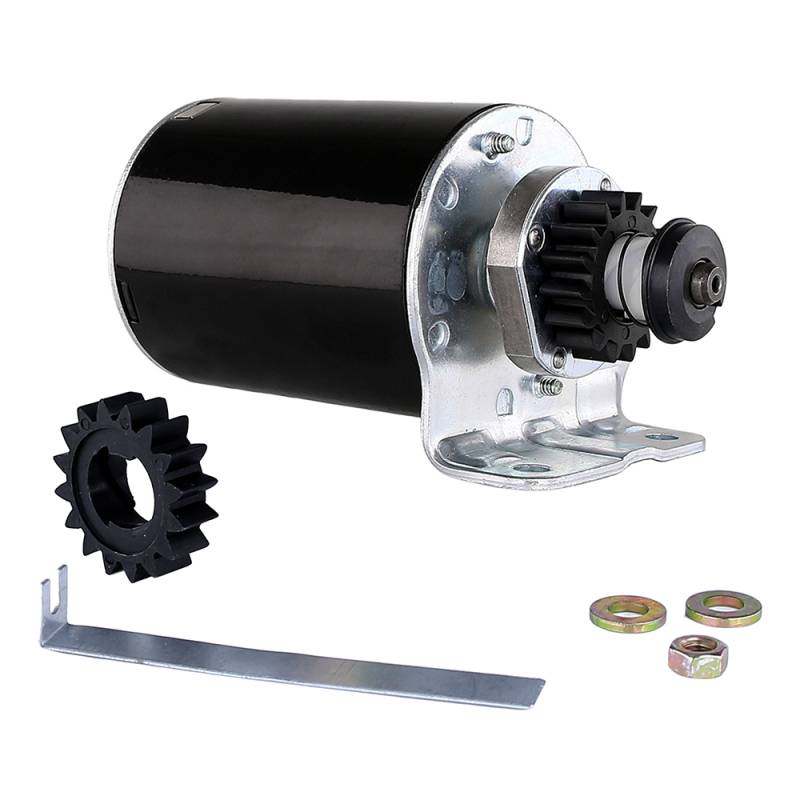

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

SABRE BY JOHN DEERE LAWN TRACTORS (BRIGGS & STRATTON SINGLE):
• Sabre 1338G with the Briggs & Stratton 13 HP
• Sabre 1438GS and 1438HS with the Briggs & Stratton 14.5 HP
• Sabre 1538GS and 1538HS with the Briggs & Stratton 15 HP
• Sabre 1542GS and 1542HS with the Briggs & Stratton 15.5 HP
• Sabre 1546G with the Briggs & Stratton 15 HP
• Sabre 1646HS with the Briggs & Stratton 16 HP
• Sabre 1646H with the Briggs & Stratton 13 to 16 HP 1996-1998
• Sabre 1642HV with the Briggs & Stratton single 1998-1999
• Sabre 1646HV with the Briggs & Stratton single 1998-2000

JOHN DEERE LA SERIES LAWN TRACTORS (BRIGGS & STRATTON V-TWIN):
• John Deere LA120 and LA130 with the Briggs & Stratton 21 HP 724 cc 2007
• John Deere LA140 with the Briggs & Stratton 23 HP 724 cc 2007
• John Deere LA150 with the Briggs & Stratton 26 HP 724 cc 2007
• John Deere LA135 and LA135SE with the Briggs & Stratton 22 HP 655 cc 2008-2010
• John Deere LA145 with the Briggs & Stratton 22 HP 655 cc 2008-2010
• John Deere LA155 with the Briggs & Stratton 22 HP 655 cc 2009-2010
• John Deere LA165 with the Briggs & Stratton 24 HP 724 cc 2008-2010
• John Deere LA175 with the Briggs & Stratton 26 HP 724 cc 2008-2010

JOHN DEERE L SERIES AND SCOTTS (BRIGGS & STRATTON V-TWIN):
• John Deere L111 42 in with the Briggs & Stratton 406577 20 HP 655 cc 2005
• John Deere L118 42 in with the Briggs & Stratton 441577 22 HP 2004-2005
• Scotts L2048 with the Briggs & Stratton 20 HP OHV V-twin 2002-2008
• Scotts L2548 with the Briggs & Stratton 25 HP OHV V-twin
• Scotts S2046 with Briggs & Stratton

SABO LAWN TRACTORS:
• Sabo 97-14HS with the Briggs & Stratton 14 HP
• Sabo 92H with Briggs & Stratton

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket
