Starter Motor Compatible With 303C 303.5C 303.5D 304C Cr 304D Cr 305C Cr 305.5D 305D Cr Excavator

OEM PART NUMBERS:
• Mitsubishi: M008T75171, M8T75171, M8T75172, M8T71571
• Mitsubishi Industrial: 32A66-10100, 32A66-10101, 32A66-20601
• Caterpillar: 280-3784
• Toro: 99-2267
• Lucas: LRS02218

SPECIFICATIONS:
• Voltage: 12V
• Power: 2.2kW / 2.95HP
• Type: PLGR (Planetary Gear Reduction)
• Unit Type: Mitsubishi
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 38.5mm / 1.516"
• Mounting Ear 1: Unthreaded
• Mounting Ear 2: Unthreaded
• Weight: 14.105 lbs / 6.41 kg
• Condition: New

APPLICATION:
• 303C CR / 303.5C / 303.5D Mini Excavators — S3Q2 / S4Q2T
• 304C CR / 304D CR Mini Excavators — S4Q2T
• 305C CR / 305.5D / 305D CR Mini Excavators — S4Q2T
• G34 / G40 Generator Sets — Mitsubishi Diesel (2000-2006)

12V 2.2kW Starter — 303/304/305 Series Mini Excavators / G34/G40 GenSets

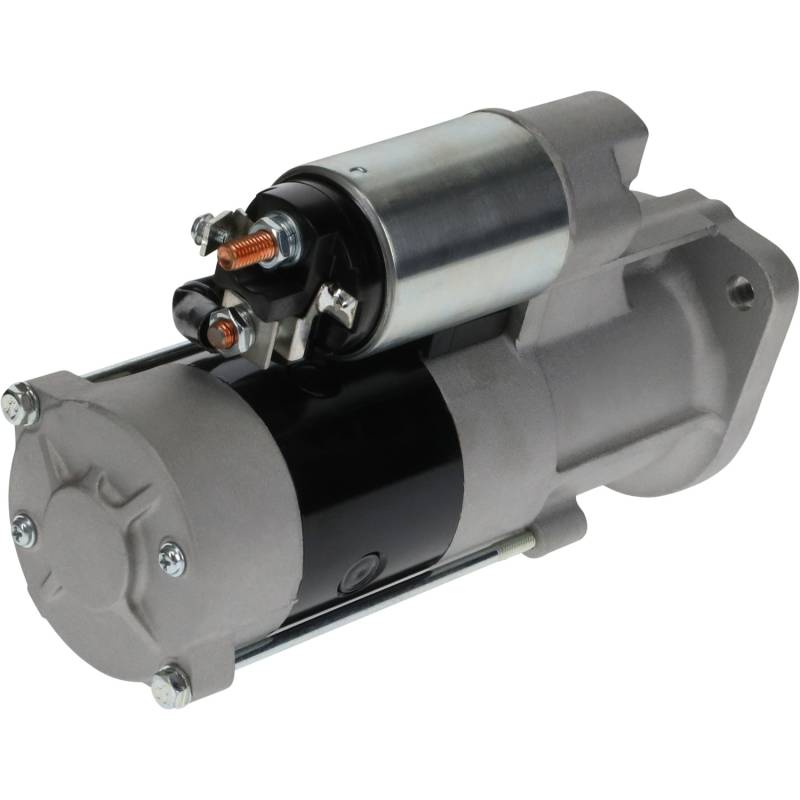

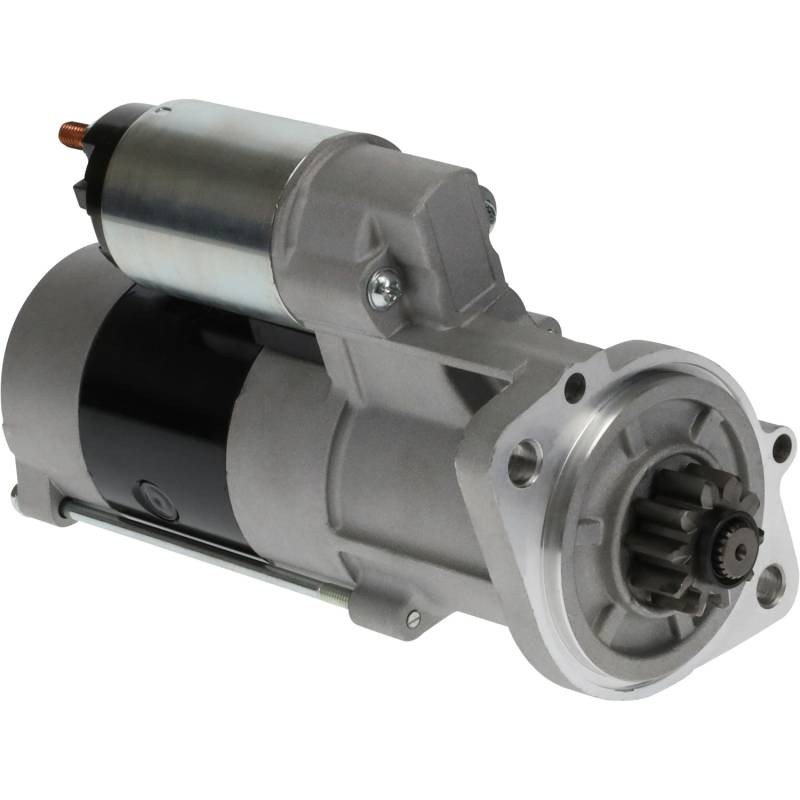

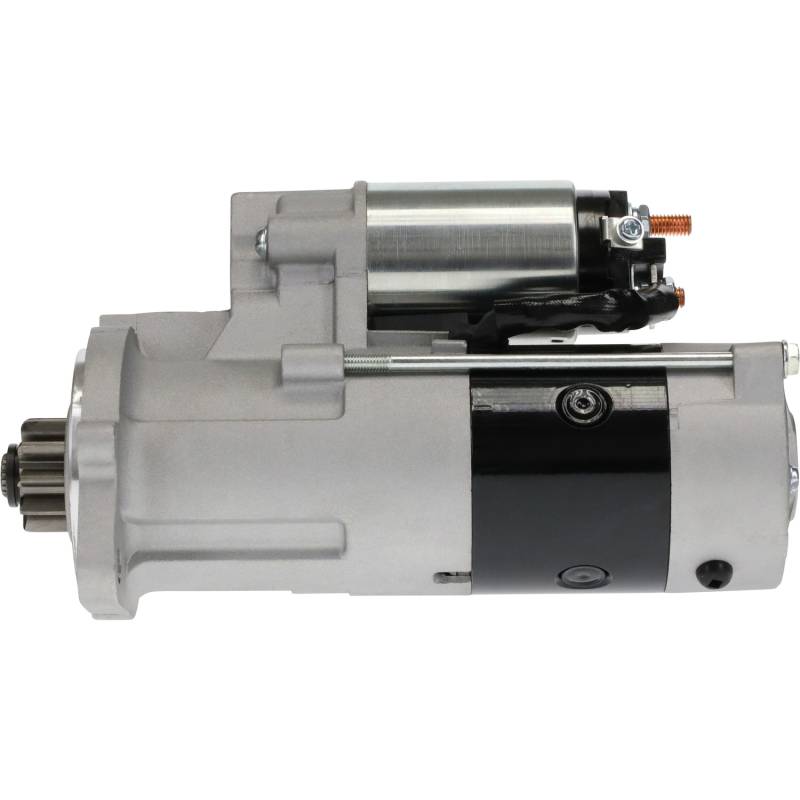

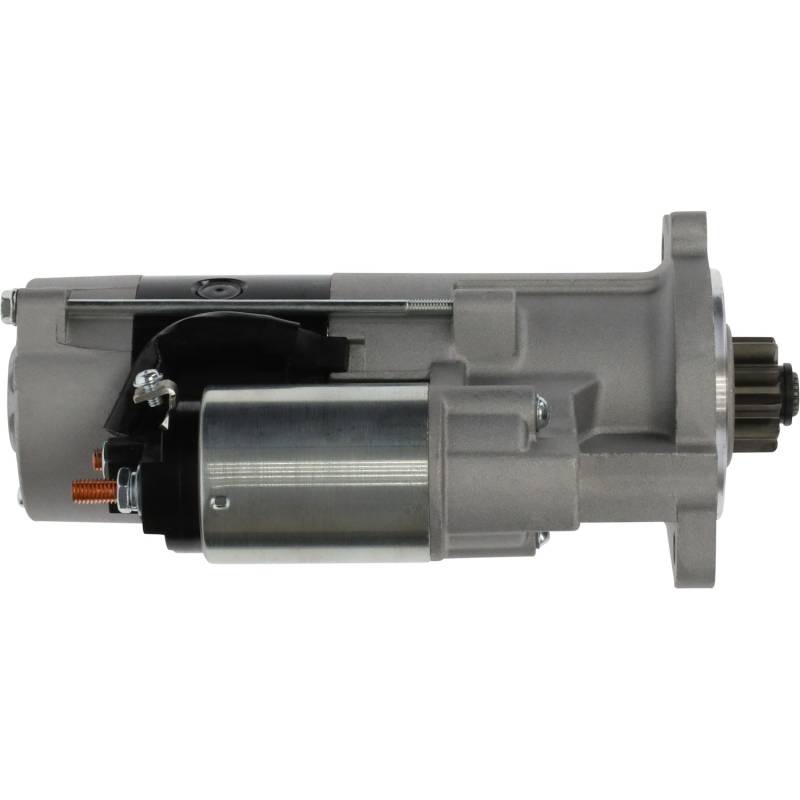

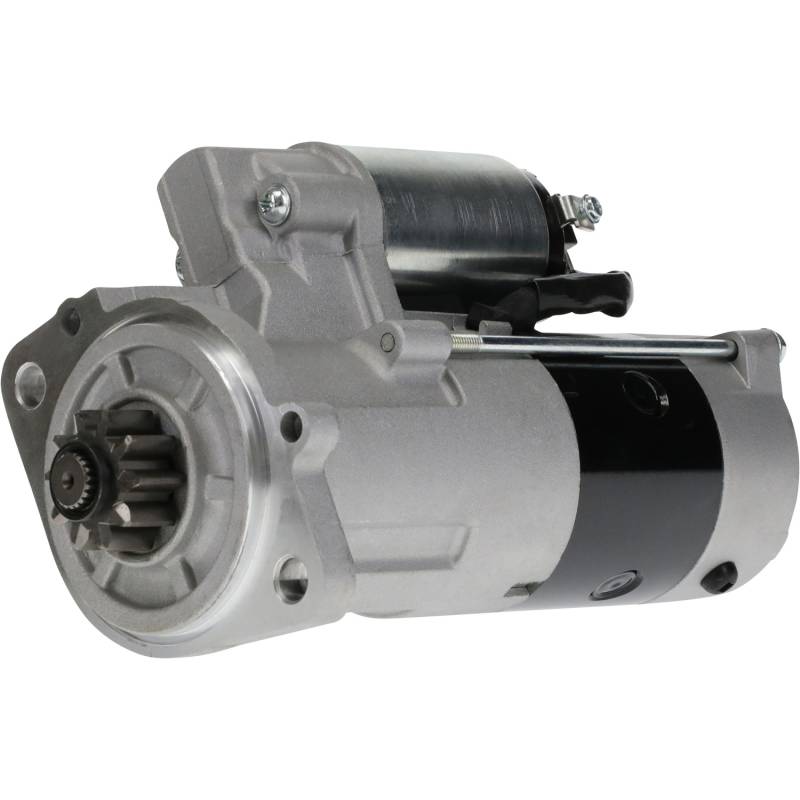

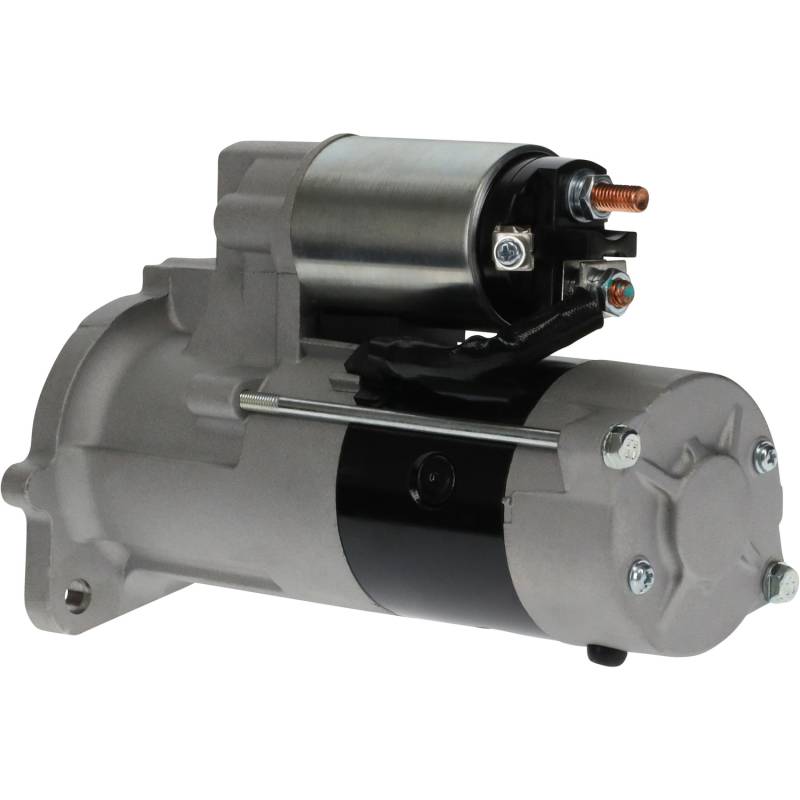

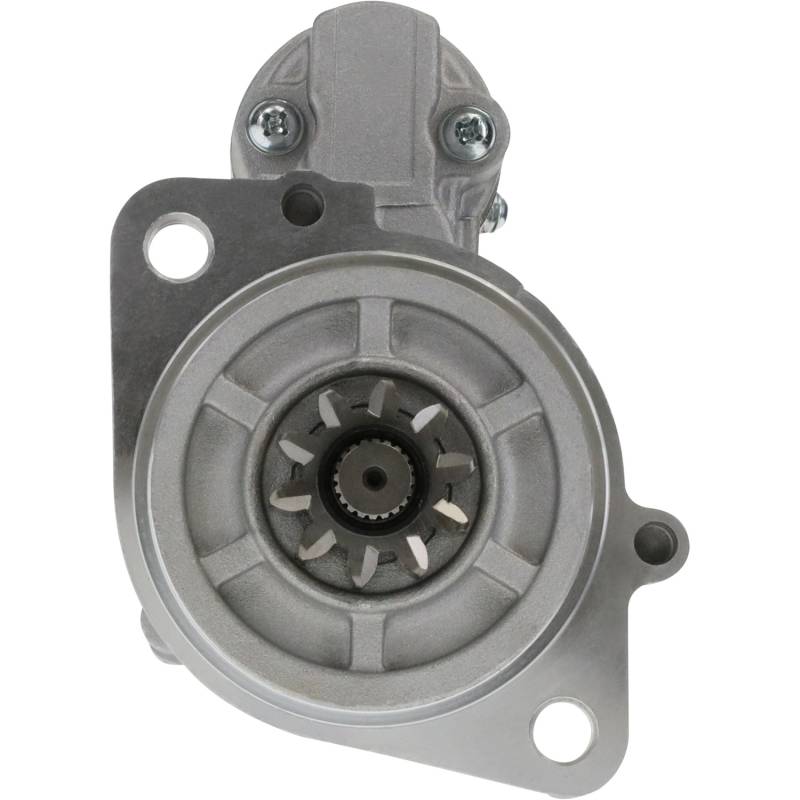

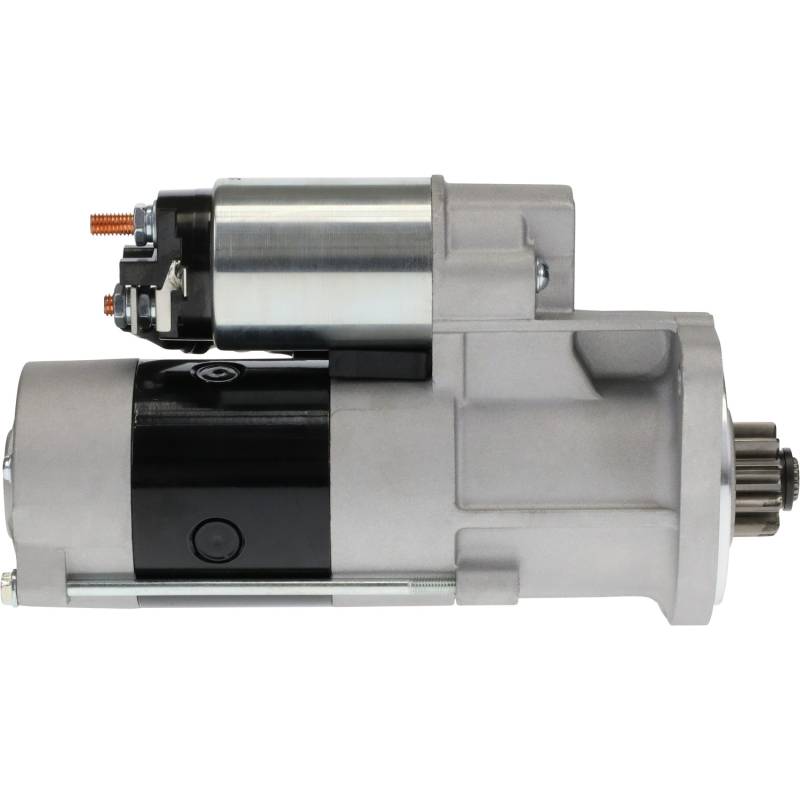

12 volt 2.2kW starter motor for 303C CR, 303.5C, 303.5D, 304C CR, 304D CR, 305C CR, 305.5D, and 305D CR mini excavators with Mitsubishi S3Q2 and S4Q2T diesel engines. Also fits G34 and G40 generator sets with Mitsubishi diesel (2000-2006) and 580D Groundsmaster with S4S engine. Mitsubishi PLGR design with 10-tooth drive pinion, clockwise rotation, 38.5mm gear OD. Direct replacement for 280-3784, 32A66-10101, M008T75171, and LRS02218.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
