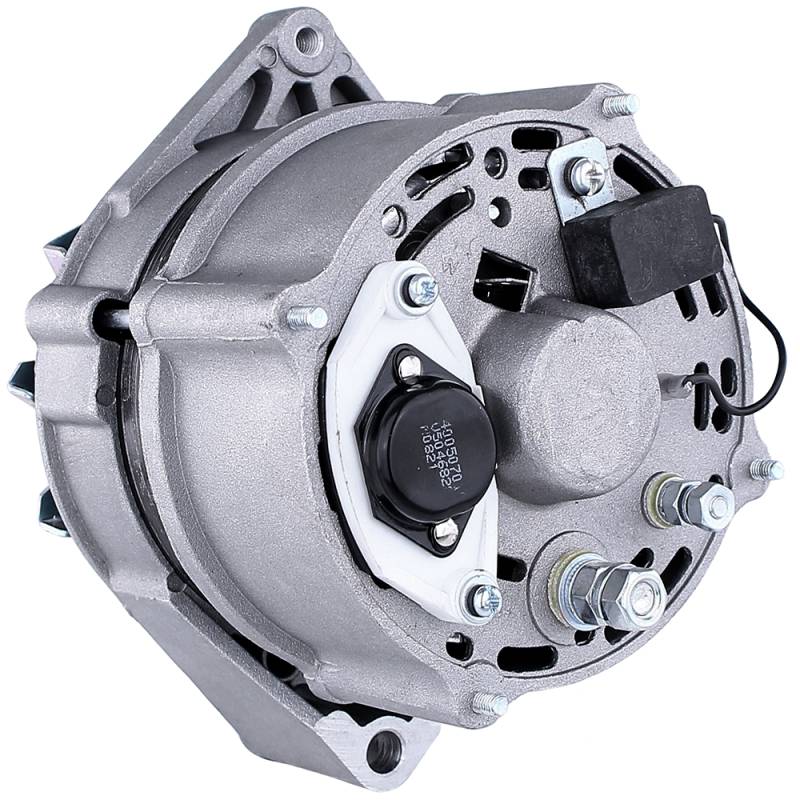

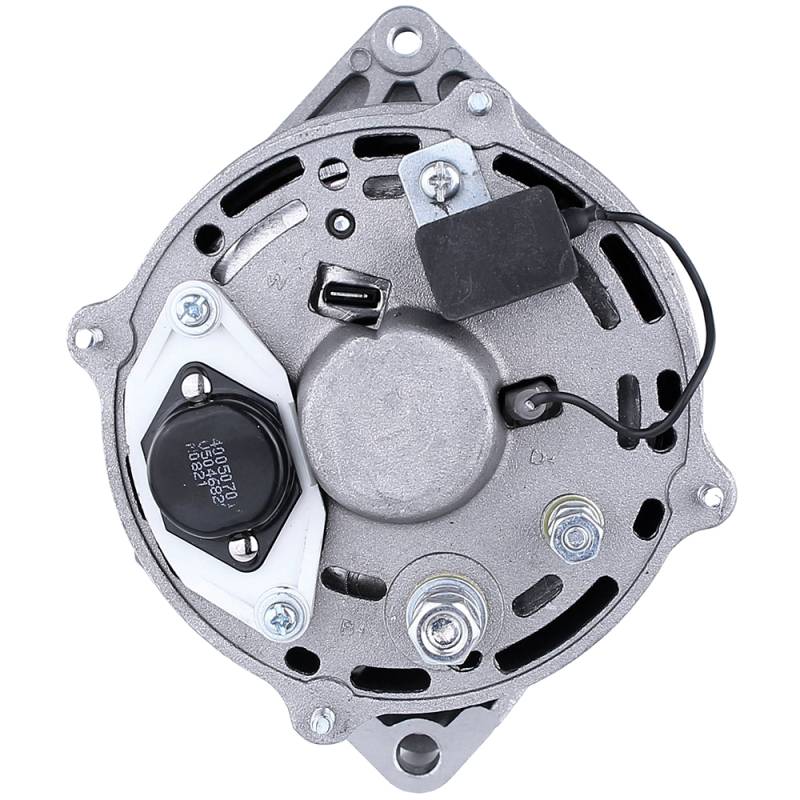

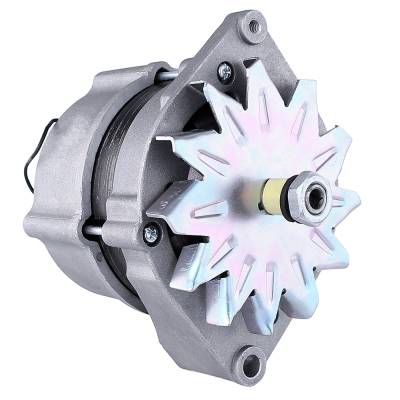

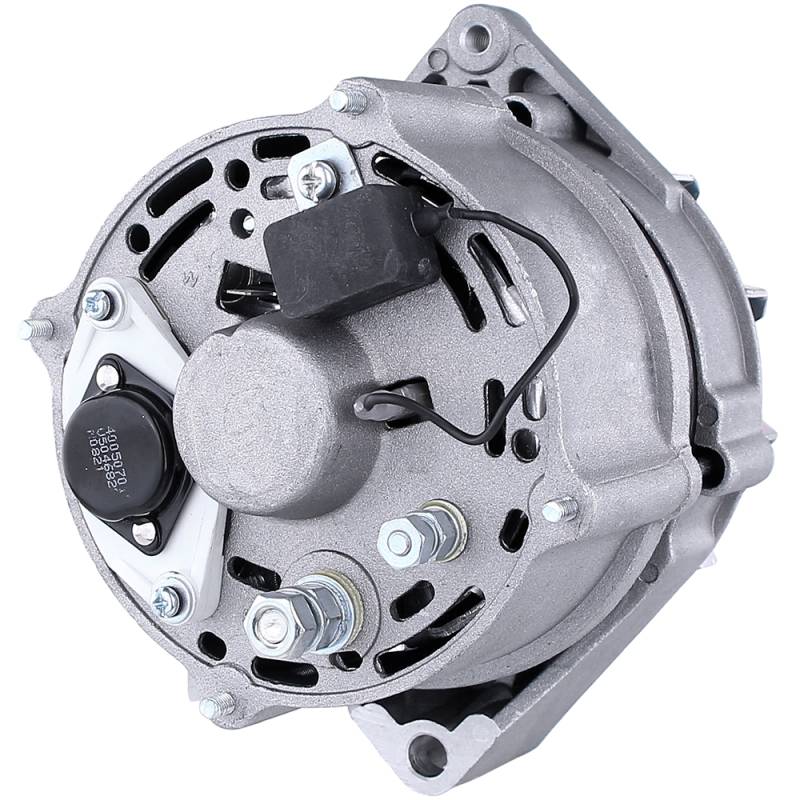

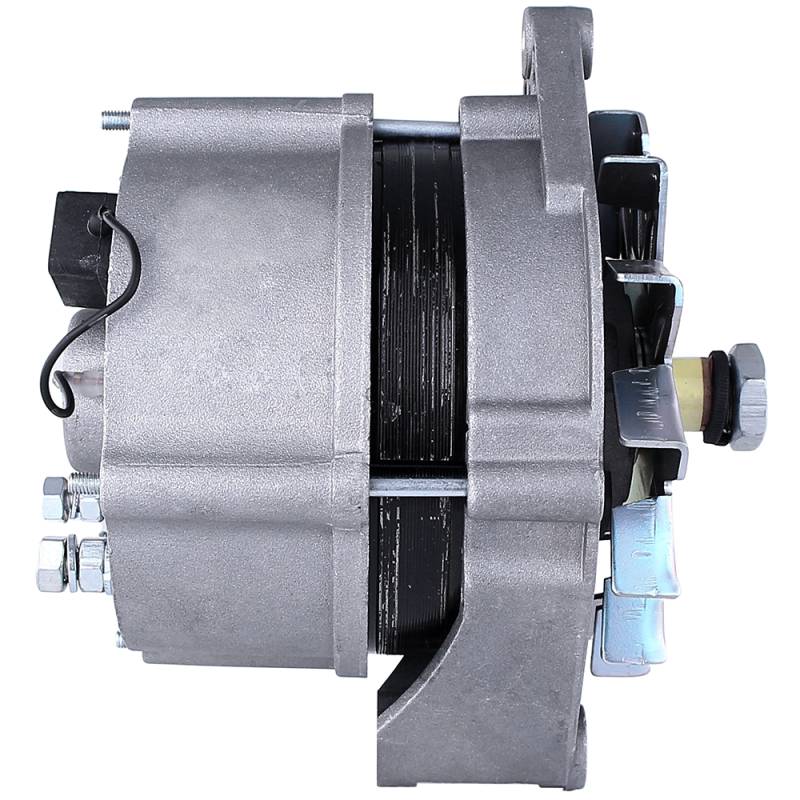

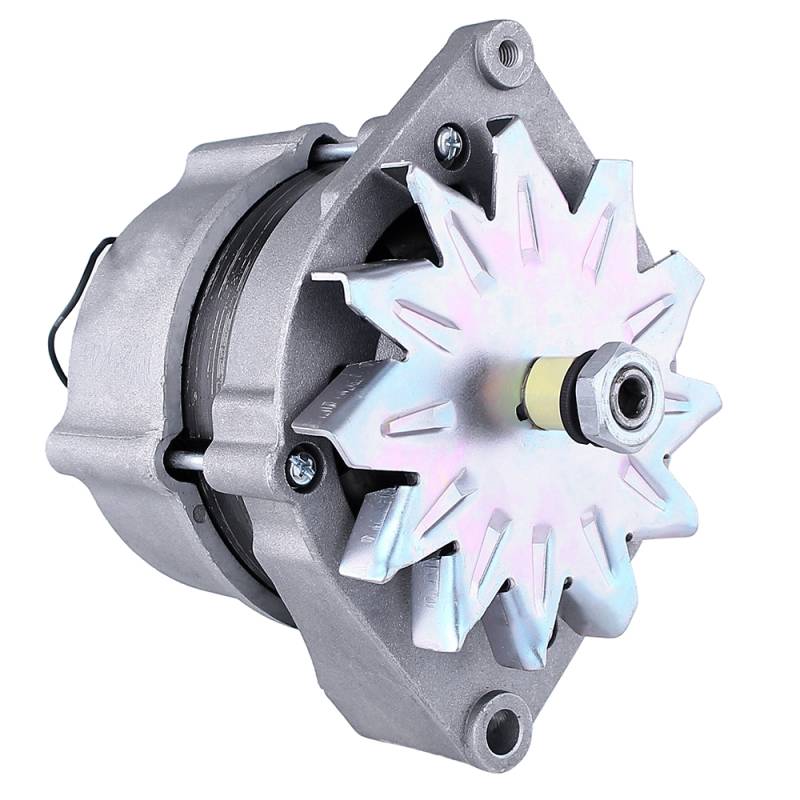

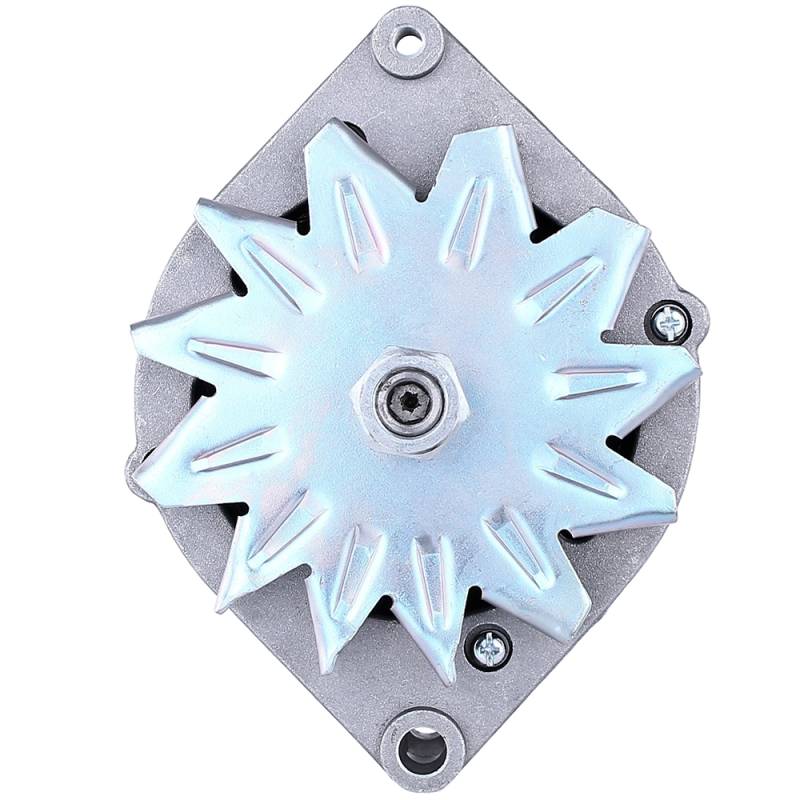

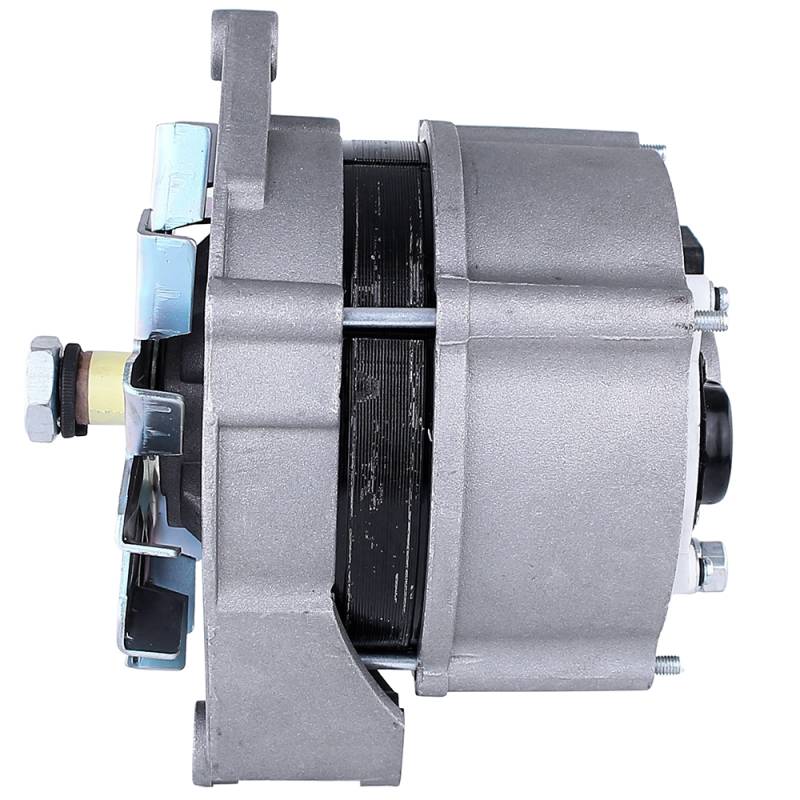

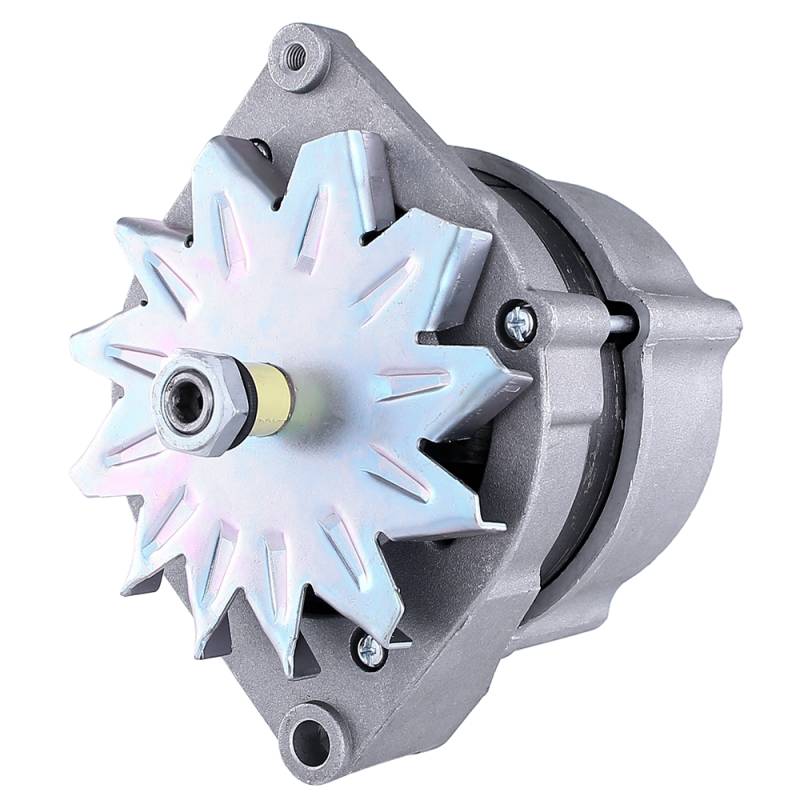

Alternator Compatible With Case Uni-Loader 1835B 1835C 1845C Ar186125, Trencher 360 760

BOSCH 0-120-489-475
BOSCH REMAN AL9959X
CASE AR186125
CUMMINS 3604480RX, 3675270NW
ISKRA SALES IA 0595, IA 0727

UNIT TYPE(S): BOSCH, CASE, CATERPILLAR
VOLTAGE: 12
AMPERAGE: 65
REGULATOR CLOCK: 9: 00
FAN LOCATION: EXTERNAL
REGULATOR LOCATION: INTERNAL
MOUNT TYPE: SPOOL
STUD SIZE: M8-1.25
POLARITY: NEGATIVE
NOTES:
17MM ROTOR SHAFT
M8-1.25 THREADED HOLE IN ADJUSTING EAR AT 12: 00
10MM UNTHREADED HOLE IN MOUNTING FOOT AT 6: 00 (50.5MM THICK)
B+ STUD AT 8: 00
M4-0.7 THREADED D+ STUD AT 5: 00
M5-0.8 THREADED W STUD AT 2: 00
WEIGHT: 10.6 LBS / 4.82 KG
