OEM PART NUMBERS:
• Hitachi: LR225-84T / LR22584T
• Hitachi: LR225-84TR / LR22584TR
• Hitachi: LR225-83 / LR22583
• Nissan: 23100-51H00 / 2310051H00
• Yanmar: 119129-77200 / 11912977200
SPECIFICATIONS:
• Voltage: 24V
• Amperage: 25A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal
• Pulley: 2-Groove V-Belt
• Regulator Position: 12:00
• B+ Terminal: M5-0.80
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Mounting Ear 3: 10.4mm Unthreaded
• Weight: 11.825 lbs / 5.37 kg
• Condition: New
APPLICATION:
• Nissan Industrial Lift Truck F03 — TD42 Diesel (1989-On)
• Nissan Industrial Lift Truck F05 — TD42 Diesel (1988-On)
• Additional TD42 diesel industrial applications (verify by part number)

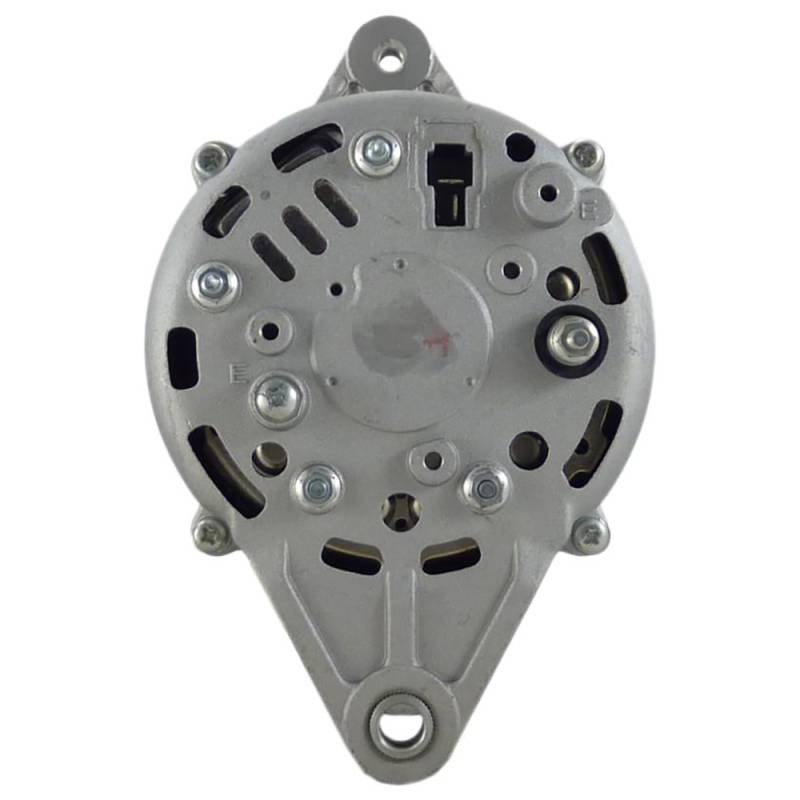

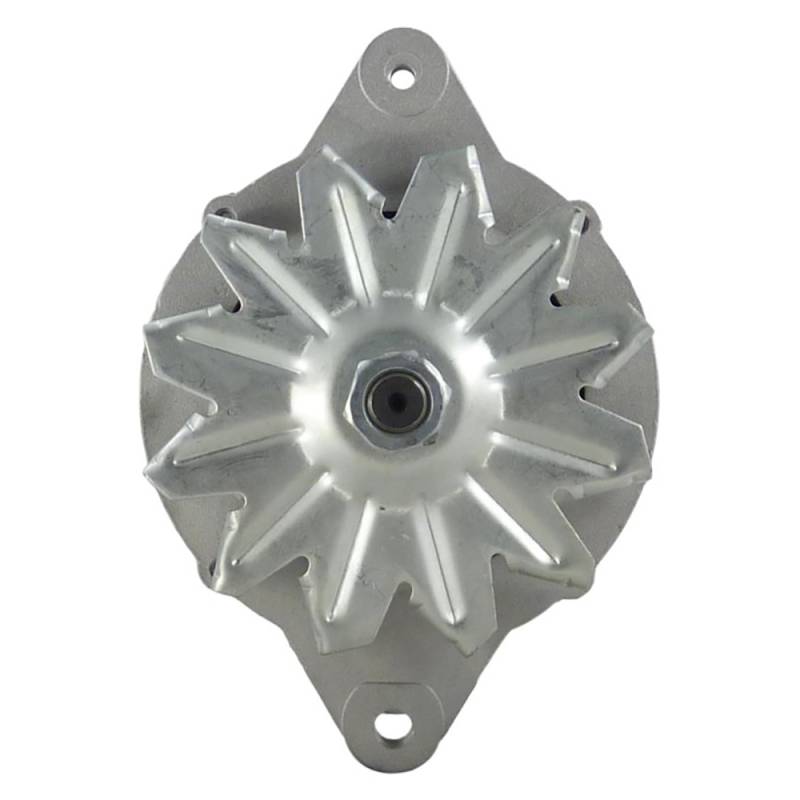

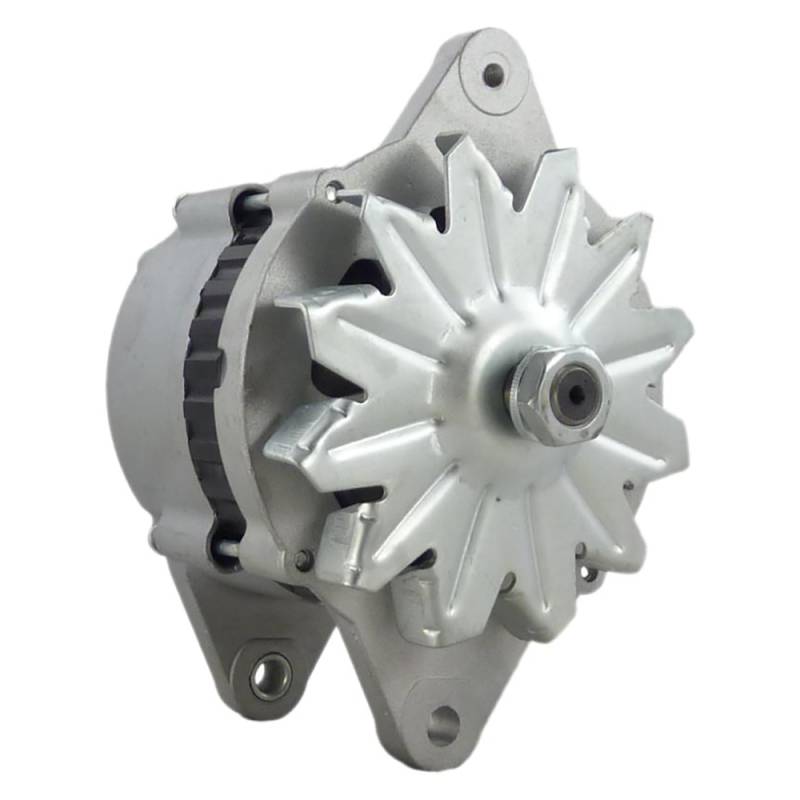

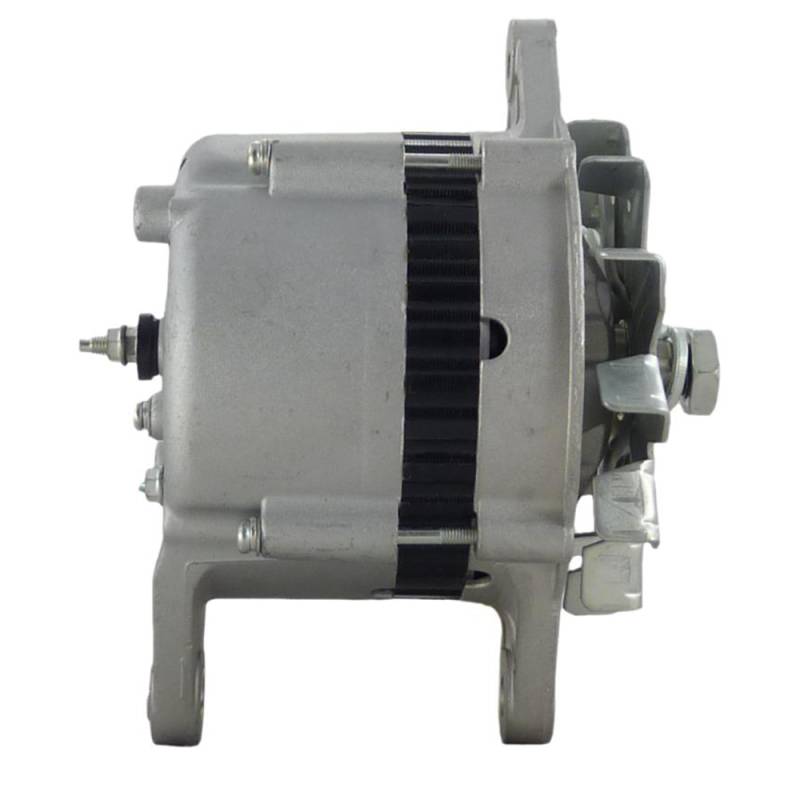

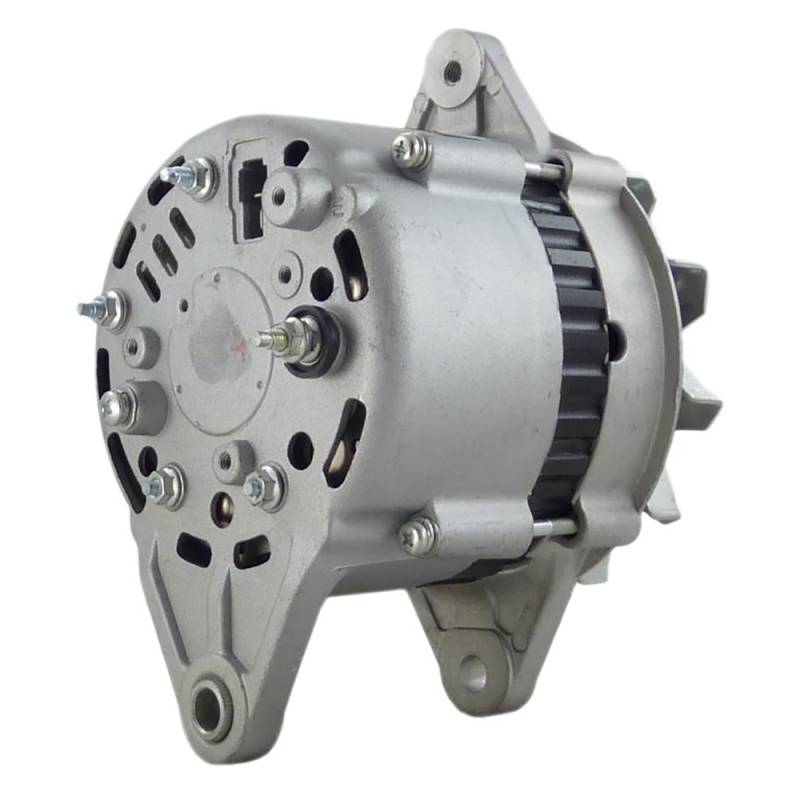

24 Volt Alternator — Nissan Industrial Forklift TD42 Diesel
New 24-volt Hitachi-type alternator producing 25 amps of charging output for Nissan industrial forklifts with the TD42 diesel engine. The external fan pulls cooling air across the alternator housing while the internal voltage regulator maintains consistent charging voltage across the operating RPM range. Mounts with three ears including one M8-1.25 threaded and two unthreaded posts at 10.5mm and 10.4mm. The 2-groove V-belt pulley engages the existing engine drive belt system for straightforward installation. Weighs 11.825 lbs. Replaces Hitachi LR225-84T and Nissan 23100-51H00.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
