OEM PART NUMBERS:
• Yamaha: 6E5-8195A-01-00 / 6E58195A0100
• Yamaha: 6E5-8195A-00-00 / 6E58195A0000
• Yamaha: 6E5-8195C-01-00 / 6E58195C0100
• Short Forms: 6E5-8195A-01 / 6E5-8195A-00 / 6E5-8195C-01
SPECIFICATIONS:

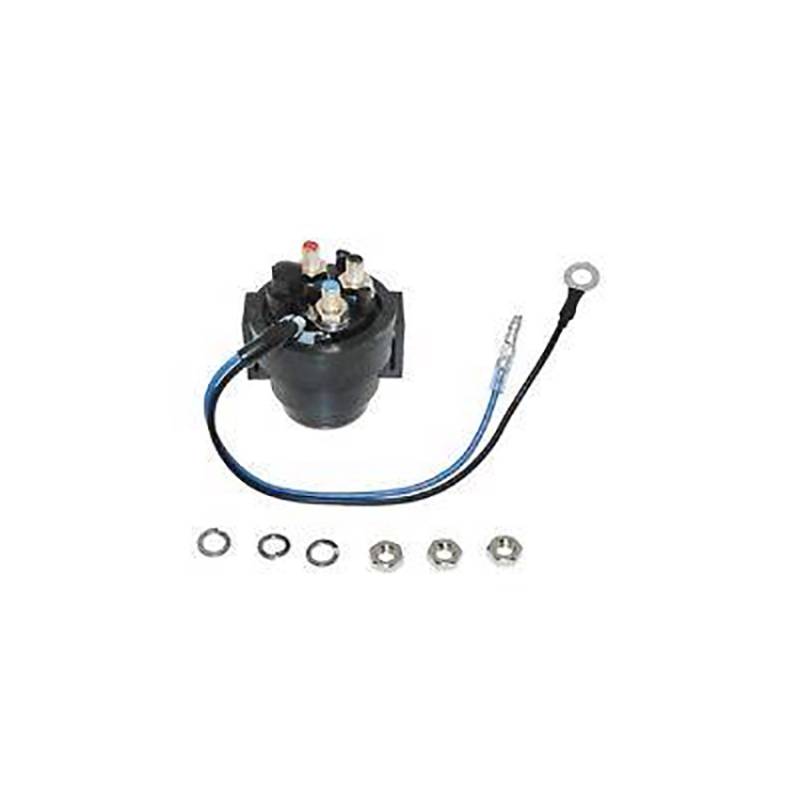

• Type: Power Trim Tilt Down Relay Assembly
• Function: Controls Trim/Tilt Motor "Down" Direction
• Voltage: 12V DC
• Connector: 3-Pin
• Application: Yamaha 2-Stroke V4 and V6 Outboard Engines
• HP Range: 115HP - 225HP
• Year Range: 1991-2006+
• Condition: New
YAMAHA OUTBOARD APPLICATIONS:
• Standard: 115TJR/TLR/TXR, 130TLR/TXR, 150TJR/TLR/TXR, 175TLR/TXR, 200TJR/TLR/TXR, 225TLR/TXR (1991-2006+)
• Commercial: C115TLR/TXR (1991-2000), C150TLR/TXR (1996-1999), D150TLR (1997-1999)
• Saltwater Series: S115, S130, S150, S175, S200 (1996-1999)
• Power Thrust: P115, P150, P175, P200 (1991-1999)
• Counter-Rotation: L130TXR (1991-2001), L150TXR (1991-1999), L200TXR (1991-1999)
• VMAX: V150TLR (2000-2006+), V175TLR (2000+)
• Other: B115TLR (1998-1999)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
